Parameters

• Input Voltage: 24 VDC
• Input Current: 1.5A
• Output Voltage: 24 VDC
• Output Current: 2A
• Power Consumption: < 5W
• Operating Temperature: -40°C to +70°C
• Relative Humidity: 5% to 95% (non-condensing)

Specifications

• Manufacturer: Honeywell
• Series: Triconex Trident
• Application: Industrial Safety Control System
• Number of Digital Input Channels: 32

Dimensions & Weight

• Dimensions: 224mm x 168mm x 64mm
• Weight: 2.3 kg

Series

• Series: Triconex Trident

Features

• High Reliability: Triple Modular Redundancy (TMR) design ensures high reliability².
• Multiple Input Types: Supports various input types, including switches, sensors, and relays³.
• Noise Resistance: Provides resistance to noise³.
• Easy Configuration and Maintenance: Designed for ease of configuration and maintenance³.
• Environmental Adaptability: Can operate in a wide temperature range of -40°C to +70°C¹³.
• Modular Design: Supports hot-swapping and expansion².

Role

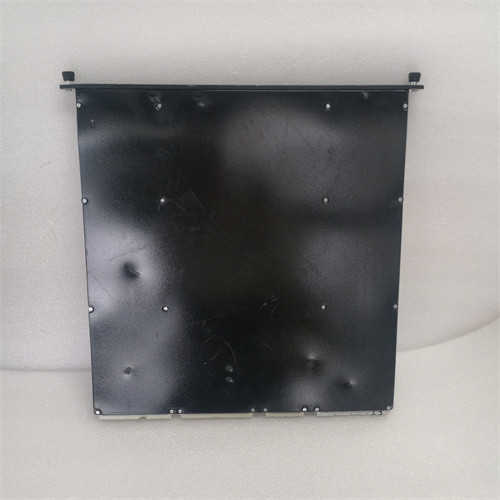

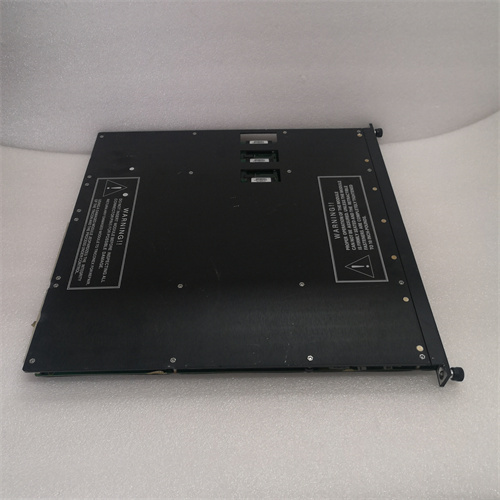

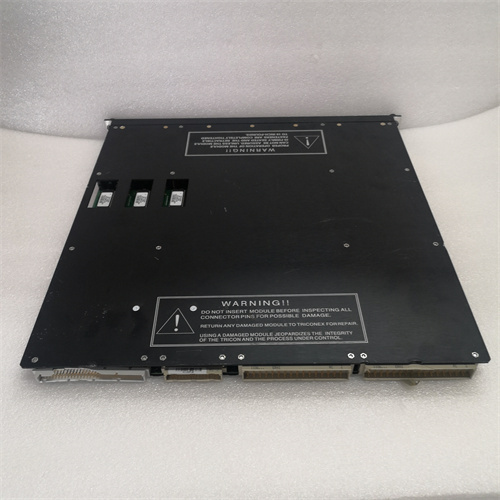

• Digital Input Module: TRICONEX 3503E is a digital input module used in the Triconex Trident safety system. It provides 32 digital input channels for receiving signals from switches, sensors, and other devices³.
• Power Module: The TRICONEX 3503E power module is a component of the Triconex safety system, providing power and stable voltage to support the operation of the Triconex system⁴.
