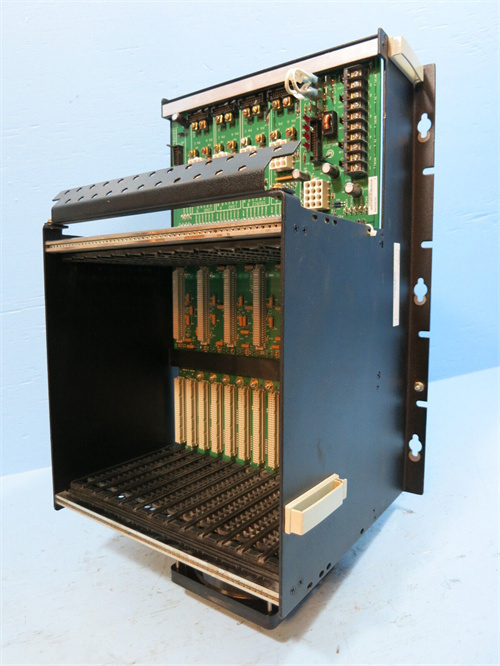

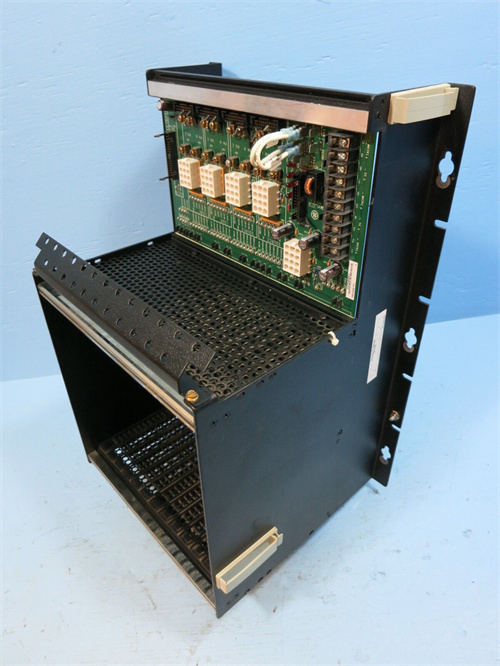

Basic specifications :
Type : VME backplane board
Function abbreviation : VPBL
Place of manufacture : , USA
Weight and dimensions :
Weight : 1 pound 7 ounces
Dimensions : 170mm x 105mm x 32mm
Main parameters :
Number of power plugs : 10
Driver connection : 34 pin ribbon connector
J2 supports : DSPC board, I/O expander, and up to three FCGD boards
Number of test points : 60 coil springs
Functions and functions :
function : as a GE VME backplane, used for load commutator inverter control system and 13-slot chassis
functions : supports the connection of multiple boards and cards, provides the multi-layer board design of digital and analog power plane, and realizes the connection of J2 and J3 parts of the equipment card cage
