function :
A 16-bit bipolar analog output board with high precision conversion and multiple update control options, compatible with the VME bus, suitable for industrial applications .
parameter :
Number of channels : 8 channels .
resolution : 16 bits .
Establishment time : Max. 0.003% FSR (Max. 10µs) .
Output voltage : ±10V (5mA) .
Output type : double-buffered data latch, optionally synchronous update control or external update control input .
Weight and dimensions :
Weight : 35kg.
Size : specification is 2235.
Other features :
Supports VMIC analog extension and built-in test Bus (AMXbus) for interconnecting various VMIC ADC and DAC boards and extended multiplexer boards .

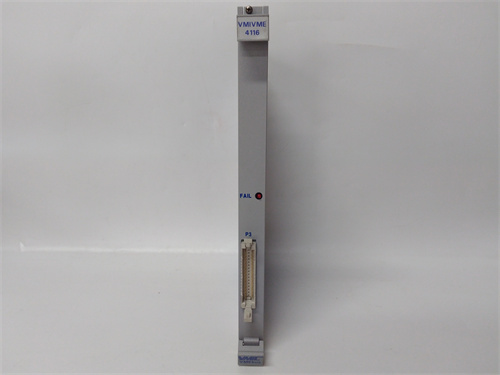

Front panel fault LED indication, high reliability DIN output connector .
The output is set to 0.0V during power-on and is automatically disconnected from the site .
The VMIVME-4116 is ideal for industrial automation and process control with its high precision, multi-channel and rich features.
