1. Basic information

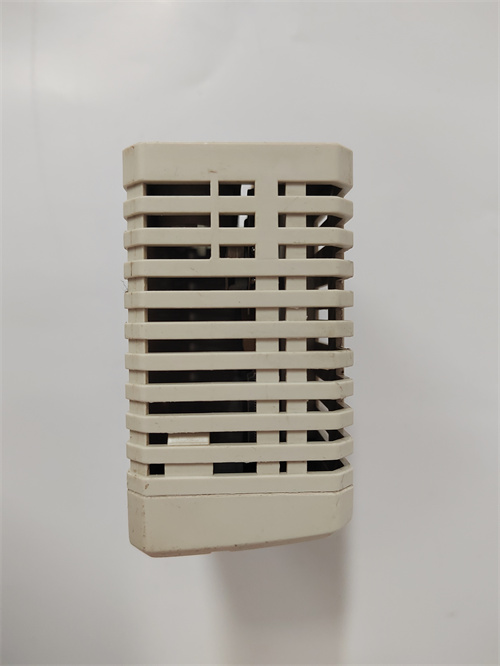

Product name : ABB CI854A 3BSE030221R1
Manufacturer : ABB Group
series : ABB 800xA series
Second, functional characteristics
logical control : Used to perform logical control tasks, such as start and stop control, flow control, and event triggering .
communication interface : has a variety of communication interfaces to support data exchange and communication with other devices and systems, including Ethernet, serial communication .
programmability : Engineers can configure control logic, timers, counters, and other control functions .
Multi-channel support : Multiple input and output channels are supported to handle multiple signals and control tasks .
real-time monitoring : used to monitor the status of the control task in real time, support real-time decision and control .
High reliability : ABB products are generally known for their high reliability and stability .
3. Application fields
Industrial automation : widely used in industrial automation systems, including production line control, equipment control and process monitoring .
Manufacturing : used to control machines, robots, automation equipment and production lines .
Process control for chemical, oil, gas and other process control applications to ensure the stability and safety of production processes .
electric power system : used to control power distribution, grids, and generating equipment .
traffic system : used to control the traffic flow in traffic signal systems, railway control and intelligent traffic management.
building automation : can be used in building automation system, including lighting, HVAC, security system .
4. Technical parameters (part)
Input voltage range : 18-30 VDC
Output voltage range : 18-30 VDC
Input current range : Maximum 110 mA
Output current range : Max. 6 A
Rated control circuit power supply voltage : 24 VDC
Rated control circuit power supply current : typical value 110 mA
delay : typical 20 ms
protection circuit : in the working voltage limit range
The status display is : 3x green LED, 1x red LED
Input description : digital, HTL type; Number of inputs: 10 (two-channel, up to SIL 3) /20 (single-channel, up to SIL 2)
Operating temperature : -40°C to +70°C (or -20°C to 55°C, depending on application and conditions)
