Parameter Specifications:
Input Voltage: 24 V DC ± 20%
Input Current: Max. 0.5 A
Number of Word Inputs: 16
Number of Word Outputs: 16
Input Types: Single-ended and differential
Output Types: Relay
Functions and Role:

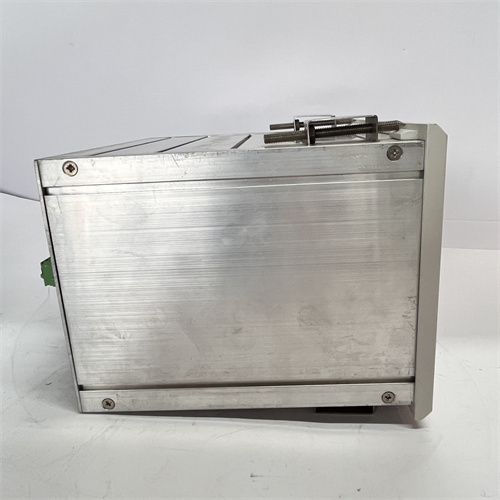

SYN5202 is a digital synchronizer used for automatic synchronization and paralleling of generators, synchronous and asynchronous lines, transmission lines, and busbars.
It can also serve as a paralleling monitoring device (synchrocheck) for monitoring automatic or manual paralleling sequences, including dead bus.
Characteristics:
Supports multiple rated frequencies, including 50 Hz, 60 Hz, and 16 2/3 Hz.
Offers up to seven sets of parameters for different paralleling points.
Features freely-configurable digital inputs and outputs.
All I/Os are isolated, and no separate power supply unit is required.
Integrates seamlessly with bus control systems like MODBUS and Profibus, reducing the need for extensive cabling.
Application Areas:
Industrial automation, such as factory automation systems, production line control, and robot control.
Power systems for grid monitoring, equipment control, and protection.
Process control in industries like chemical plants and refineries.
Transportation systems for signal control and railway systems.
Building automation, including lighting control and HVAC systems.
