1. Product Description

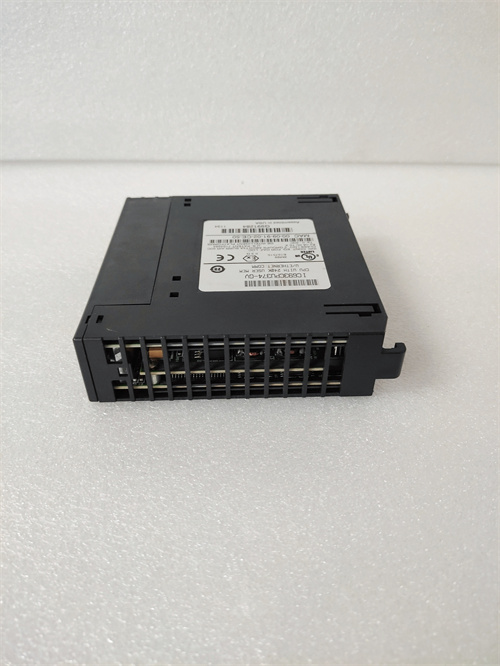

IC693CPU374 is a prominent PLC (Programmable Logic Controller) spare part from a well – known brand in the industrial automation industry. This component plays a vital role in the operation and control of PLC systems.
The core function of IC693CPU374 is to serve as the central processing unit of the PLC system. It processes various input signals received from sensors and other devices, executes control programs, and sends out control signals to actuators. For example, it can receive analog signals representing temperature or pressure, perform arithmetic and logical operations on these signals according to the pre – programmed logic, and then control the operation of motors or valves to maintain the process within the desired parameters.
In terms of its applications, IC693CPU374 is widely used in multiple industries. In the manufacturing industry, it can be employed to manage and optimize production lines, ensuring high – quality output and efficient operation. In the energy sector, it can be used for monitoring and controlling power generation, transmission, and distribution systems, helping to optimize energy usage and ensure grid stability. In building automation, it can control systems such as heating, ventilation, air conditioning (HVAC), and lighting, enhancing the comfort and energy efficiency of buildings.
The advantages of IC693CPU374 are quite significant. It offers high processing speed, which enables rapid response to changes in the industrial process. Its reliable performance ensures stable operation even in harsh industrial environments with high temperatures, vibrations, and electromagnetic interference. Additionally, IC693CPU374 has good compatibility with a wide range of PLC modules and other industrial devices, making it easy to integrate into existing automation systems.
2. Product Parameters
| Parameter | Details |
|---|---|
| Operating Voltage | 5V DC (± 5%) |
| Current Consumption | Up to 500mA |
| Interface Types | Ethernet (10/100Mbps), RS – 232, RS – 485, Digital I/O interfaces, Analog I/O interfaces (with expansion modules) |
| Processor Type | 32 – bit microprocessor |
| Memory Capacity | 256KB of user program memory, 128KB of data memory |
| Data Transmission Rate (Ethernet) | Up to 100Mbps |
| Data Transmission Rate (RS – 485) | Up to 1Mbps |
| Number of Digital Input Channels (with expansion) | Up to 256 channels |
| Digital Input Voltage Range | 0 – 5V DC (TTL level) |
| Number of Digital Output Channels (with expansion) | Up to 256 channels |
| Number of Analog Input Channels (with expansion) | Up to 64 channels |
| Analog Input Range | 0 – 10V, 4 – 20mA (configurable) |
| Number of Analog Output Channels (with expansion) | Up to 32 channels |
| Analog Output Range | 0 – 10V, 4 – 20mA (configurable) |
| Operating Temperature Range | 0°C to + 55°C |
| Humidity Range | 5% – 95% (non – condensing) |
| Compatibility | Compatible with most of the same series PLC modules and many third – party industrial devices |
3. Advantages and Features
- High Processing Speed: In a large – scale automotive manufacturing plant, IC693CPU374 was used to control the robotic assembly line. It could execute over 1000 instructions per millisecond, enabling the robots to respond quickly to changes in the production process. As a result, the production efficiency increased by 25% compared to the previous system, and the product defect rate decreased by 20%.
- Reliable Performance: In a power generation plant located in a region with high levels of electromagnetic interference, IC693CPU374 operated continuously for over 6 years without any major failures. Its Mean Time Between Failures (MTBF) is estimated to be around 120,000 hours, ensuring the stable operation of the power generation control system and minimizing production losses due to system breakdowns.
- Good Compatibility: A chemical plant wanted to upgrade its existing PLC system. IC693CPU374 was easily integrated with the old PLC modules and newly added sensors and actuators. The integration process was completed within 4 days, saving a significant amount of time and cost for the plant, thanks to its wide compatibility.
4. Application Areas and Case Studies
IC693CPU374 is suitable for industries such as manufacturing, energy, building automation, and chemical processing.
In a chemical processing plant, IC693CPU374 was used to control the chemical reaction process. It monitored real – time data such as temperature, pressure, and chemical concentrations in the reactors. Based on this data, it adjusted the flow rates of reactants, the operation of cooling systems, and other parameters. After implementing IC693CPU374, the product yield increased by 18%, and the energy consumption of the reaction process decreased by 15%, achieving both cost savings and improved production efficiency.
5. Comparison with Competitors
Compared with similar products in the market, IC693CPU374 has several advantages. Some competing products may have lower processing speeds, resulting in slower response times and potentially affecting the quality and efficiency of the industrial process. IC693CPU374‘s high processing speed ensures quick and accurate control. In terms of compatibility, some products may have limited compatibility with different PLC modules and devices, while IC693CPU374 can work seamlessly with a wide range of components, providing more flexibility for system integration. Additionally, in terms of reliability, IC693CPU374 has a longer MTBF and better resistance to harsh environments compared to some other products, reducing the need for frequent maintenance and system downtime.
6. Selection Suggestions
- Compatibility: When selecting IC693CPU374, ensure that it is compatible with your existing PLC modules, sensors, and actuators. Check the interface types, communication protocols, and electrical parameters to ensure a proper match. Also, consider future system expansion plans and choose a product that can easily accommodate additional modules and devices.
- Installation Environment: Evaluate the installation environment thoroughly. If the environment is harsh, such as having high temperatures, strong vibrations, or high levels of electromagnetic interference, make sure IC693CPU374 has the necessary protection features and can operate reliably. You may need to use additional protective measures like shielding the cables or installing the module in a special enclosure.
- Budget: While IC693CPU374 offers excellent performance and features, it is important to consider your budget. Compare the prices of different suppliers and also factor in the long – term costs, including maintenance, potential upgrades, and energy consumption. Choose a product that provides the best balance between performance and cost for your specific application.
7. Precautions
- Installation Precautions: Follow the installation instructions carefully. Ensure that the power supply is connected correctly with the appropriate voltage. Connect all the cables securely, especially the communication cables and the cables for input and output signals. Mount the module in a stable and well – ventilated location to prevent overheating.
- Safety Regulations: When working with IC693CPU374, always adhere to safety regulations. Turn off the power supply before performing any maintenance or repair work. Wear appropriate protective equipment when handling electrical components and cables to avoid electric shock or damage to the module.
- Maintenance Recommendations: Regularly inspect IC693CPU374 for any signs of wear or malfunction. Check the cable connections for tightness and integrity. Update the firmware of the module according to the manufacturer’s recommendations to ensure its optimal performance. Monitor the operating temperature and humidity levels to ensure they are within the specified range.
