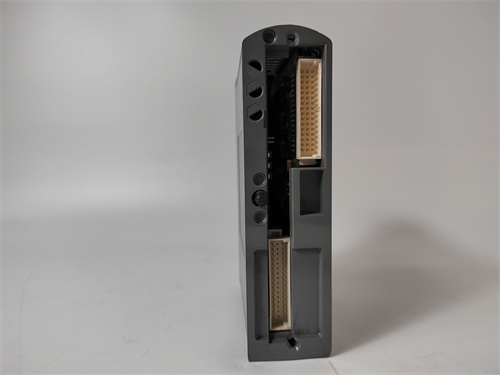

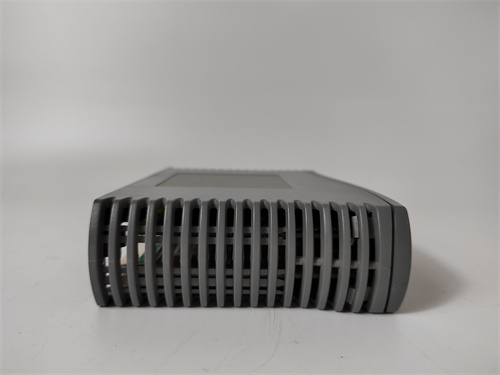

ICS TRIPLEX T9451

Product Parameters

• Power Supply Voltage:
  • Input Voltage: 24V DC (with a tolerance of ±15%)
• Interface Types:
  • Ethernet interface for high-speed data communication with other networked devices in the system
  • Serial interfaces (e.g., RS-485) for connecting to specific sensors or devices that require serial communication
  • Specialized I/O interfaces for connecting analog and digital input/output signals relevant to safety applications
• Signal Processing Capacity:
  • Can handle a large number of input channels, typically supporting up to 32 analog input channels and 64 digital input channels
  • Analog Input Ranges: Supports common ranges like 0-10V, 4-20mA for accurate measurement of process variables
  • Digital Input Logic Levels: Accepts standard logic 0 (0V) and logic 1 (24V) levels
  • Output Capacity: Capable of driving multiple actuators with appropriate current and voltage levels, with 24 digital output channels and 8 analog output channels
• Compatibility:
  • Highly compatible with other ICS TRIPLEX modules and systems, allowing for easy expansion and integration within a safety automation network
  • Can interface with a variety of third-party sensors and actuators that comply with relevant industrial standards
• Operating Temperature Range: -40°C to +70°C
• Relative Humidity: 5% – 95% (non-condensing)

Advantages and Features

• High Safety Integrity: In a petrochemical plant, the ICS TRIPLEX T9451 has been deployed in the safety instrumented system. Over the past five years of operation, it has accurately detected and responded to more than 100 potential safety threats, such as excessive pressure or temperature spikes. Its triple modular redundant (TMR) architecture ensures that even in the event of a single component failure, the system can continue to operate safely and reliably, reducing the risk of major accidents in the plant.
• Reliable Performance in Harsh Environments: In an offshore oil rig, where the environment is extremely harsh with high humidity, salt spray, and strong vibrations, the ICS TRIPLEX T9451 has demonstrated excellent reliability. It has been operating continuously for over three years without any significant malfunctions, maintaining the safety and normal operation of the rig’s critical processes.

• Seamless Integration: In a large manufacturing facility that was upgrading its safety automation system, the ICS TRIPLEX T9451 was easily integrated with the existing ICS TRIPLEX components. The integration process took only a few days, and the system was up and running smoothly without major disruptions to the production line. This ease of integration saved a significant amount of time and cost for the facility.

Application Areas and Application Cases

• Application Areas: The ICS TRIPLEX T9451 is widely applicable in industries where safety is of utmost importance, such as oil and gas, chemical processing, power generation, and nuclear energy. It can be used in safety instrumented systems (SIS), emergency shutdown systems (ESD), and critical process control applications.
• Application Case: In a nuclear power plant, the ICS TRIPLEX T9451 is an essential part of the safety instrumented system. It monitors various parameters of the nuclear reactor, including coolant temperature, pressure, and neutron flux. When any of these parameters deviate from the safe operating range, the module quickly processes the signals, activates the appropriate safety logic, and initiates the necessary actions, such as shutting down the reactor or activating emergency cooling systems. This ensures the safety of the plant and the surrounding environment.

Comparison with Similar Products

Selection Suggestions

• Compatibility: When selecting the ICS TRIPLEX T9451, ensure that it is fully compatible with your existing safety automation system. Check the interface types and communication protocols to ensure seamless integration with other modules, sensors, and actuators. If you plan to expand the system in the future, consider the module’s compatibility with potential additional components.
• Installation Environment: Carefully assess the installation environment. If it is in a harsh environment such as offshore, in a chemical plant with corrosive substances, or in a high-temperature area, make sure the ICS TRIPLEX T9451 can withstand those conditions. Look for additional protection measures if necessary, such as proper enclosure and shielding.
• Budget: While the ICS TRIPLEX T9451 offers high performance and safety, compare the costs from different suppliers. Consider not only the initial purchase price but also the long-term costs, including maintenance, software updates, and spare parts. Evaluate the overall value it provides in terms of safety, reliability, and functionality to make an informed decision based on your budget.

Precautions

• Safety: When installing the ICS TRIPLEX T9451, always follow strict safety procedures. Ensure that the power is turned off before installation and that all connections are made correctly to avoid electrical shock or damage to the module. Use appropriate tools and protective gear during installation.
• Maintenance: Regularly perform maintenance checks on the ICS TRIPLEX T9451. Check for any loose connections, abnormal indicator lights, or signs of wear and tear. Keep the module clean and free from dust and debris. Update the module’s firmware as recommended by the manufacturer to ensure it has the latest safety features and performance improvements. In case of any detected issues, contact a qualified technician immediately for repair or troubleshooting.
