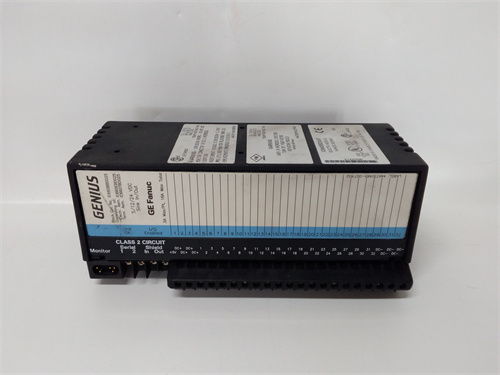

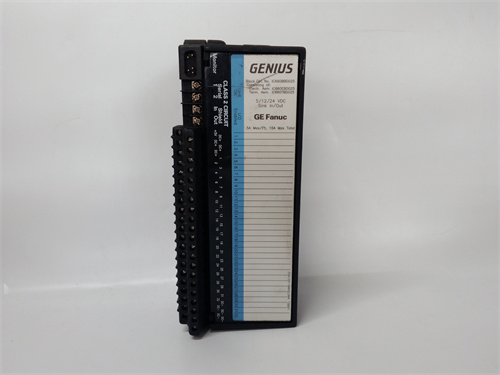

GE IC660EBD025
The GE IC660EBD025 is a crucial digital input/output module that plays a significant role in industrial automation systems. It is designed to facilitate seamless communication and control between the controller and various field devices, ensuring the smooth operation of the overall system.
1. Product Description
The GE IC660EBD025 is a highly versatile digital I/O module. Its core function is to provide reliable input and output signal processing. It can receive digital input signals from different sources such as sensors and switches, and then transmit control signals to actuators or other output devices. This module is mainly used in industrial control applications where accurate data acquisition and control are required. For example, it can be applied in automated production lines to monitor the status of equipment and control the movement of machinery. One of its main advantages is its high compatibility, which allows it to work with a wide range of GE controllers and other industrial devices. Additionally, it features a user-friendly design that simplifies installation and configuration, reducing the time and effort required for system integration.
2. Product Parameters
| Parameter | Details |
|---|---|
| Input Voltage Range | 18 – 56 VDC |
| Output Voltage | 12 or 24 VDC (power supply) |
| Current | 0.5 A maximum steady-state output current per circuit |
| Number of Inputs | 8 digital inputs |
| Number of Outputs | 8 digital outputs |
| Interface Type | RS-485 for communication, supports Modbus RTU protocol |
| Compatibility | Compatible with GE controllers and various 2-wire and 3-wire electronic proximity switches |
| Operating Temperature Range | -40°C to +70°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Dimensions | 150 x 90 x 60 mm |
| Weight | 0.5 kg |
3. Advantages and Characteristics
- High Reliability: The GE IC660EBD025 is built with high-quality components and has passed certifications such as CE, UL, and CSA. In a manufacturing plant that has been using this module for over 5 years, it has shown extremely low failure rates. For instance, during a period of intense production that lasted for 3 months, with the module operating continuously, there were no malfunctions related to the I/O operations, ensuring the stable production process.
- Ease of Integration: Thanks to its RS-485 interface and support for the Modbus RTU protocol, it can be easily integrated into existing industrial control networks. In an automation upgrade project of a power plant, engineers were able to connect the IC660EBD025 to the plant’s control system within just one day, which was much faster compared to similar modules in previous projects.
- Wide Compatibility: As mentioned, it can work with a variety of GE controllers and different types of proximity switches. This flexibility allows it to be applied in diverse industrial scenarios without the need for extensive modifications to the existing system infrastructure.
4. Application Areas and Application Cases
- Application Areas: The GE IC660EBD025 is suitable for multiple industries including manufacturing, energy, and water treatment. In manufacturing, it can be used in assembly lines, robotic systems, and quality control processes. In the energy sector, it can play a role in power generation plants for monitoring and controlling equipment. In water treatment facilities, it can be applied to manage the operation of pumps, valves, and other related devices.
- Application Case: In a large-scale chemical manufacturing plant, the GE IC660EBD025 was used to control the opening and closing of various valves in the chemical reaction process. The module received signals from temperature and pressure sensors, and based on the processed data, it sent control signals to the valves to adjust the flow of chemicals. As a result, the chemical reactions were more precisely controlled, leading to an increase in product yield by 10% and a significant reduction in production errors.
5. Comparison with Competitors
Compared to other similar digital I/O modules in the market, the GE IC660EBD025 has a wider operating temperature range, which enables it to function reliably in more extreme environments. Its high compatibility with different types of devices also sets it apart, as it can be easily integrated into a variety of industrial control systems without major compatibility issues. Additionally, its robust design and high-quality certifications contribute to its superior reliability compared to some other products.
6. Selection Suggestions
- Compatibility: When choosing the GE IC660EBD025, carefully check its compatibility with your existing controller and other field devices. Ensure that the communication protocols and electrical parameters match well to avoid any integration problems.
- Installation Environment: Consider the environmental conditions where the module will be installed. If it is in a harsh environment with high temperatures or humidity, make sure the module’s specifications can withstand those conditions. Also, ensure proper ventilation to prevent overheating.
- Budget: While the GE IC660EBD025 offers high performance and reliability, compare its price with your budget. Evaluate the long-term benefits it can bring, such as reduced maintenance costs and increased system stability, to make a cost-effective decision.
7. Precautions
- Safety Specifications: When installing the GE IC660EBD025, make sure to disconnect the power supply to avoid electrical shock. Follow the correct wiring procedures as specified in the user manual to prevent short circuits and other electrical hazards.
- Maintenance Suggestions: Regularly inspect the module for any signs of damage or loose connections. Clean the module to remove dust and debris that could affect its performance. Check the input and output signals periodically to ensure they are within the normal range. If any issues are detected, refer to the troubleshooting guide in the manual or contact a professional technician for assistance.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide the sales and technical support of GE IC660EBD025 and other automation spare parts. Please visit our website www.dcsplcmall.com or contact us, and we will be happy to serve you.
