Product Description

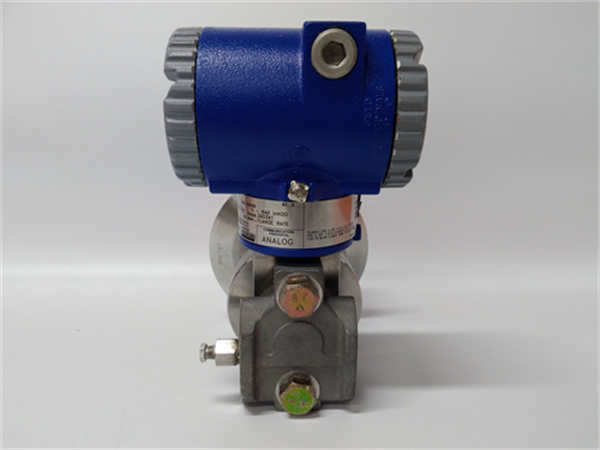

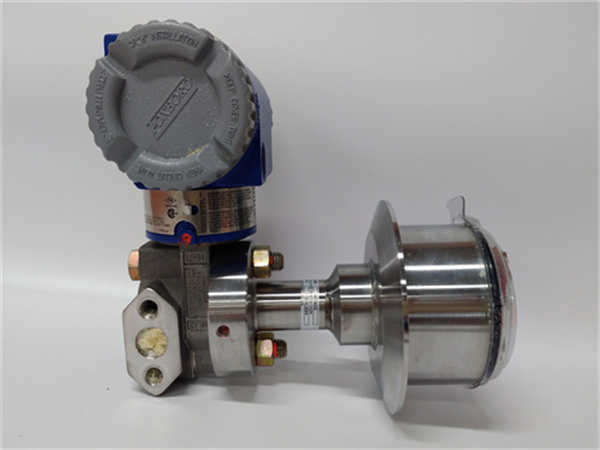

The Foxboro IDP10 – AF1C01F is an intelligent two – wire transmitter. It is designed to provide precise and reliable measurement of gauge pressure and level1. This transmitter can be purchased with HART, FoxCom, or analog outputs, offering flexibility in communication options1. It uses field – proven silicon strain gauge technology, ensuring high – quality performance5. With its rugged design and high – quality materials, the Foxboro IDP10 – AF1C01F can withstand harsh industrial environments, making it a durable and dependable choice for various industrial applications10.
Product Parameters
- Span Limits: 28 and 840 inH₂O1.
- Output Signal: 4 – 20 mA analog signal, with optional HART or FoxCom digital communication1.
- Accuracy: ±0.20% of calibrated span10.
- Wetted Materials: 316 SST, tantalum, or hastelloy1.
- Housing: NEMA 4X and IEC IP66 durable epoxy – coated aluminum or 316 SS5.
- Power Supply: 24 VDC9.
Advantages and Characteristics
- High Accuracy and Stability: The Foxboro IDP10 – AF1C01F offers high accuracy, with an accuracy of 0.06% of span (when span is greater than 10%). Its long – term drift is less than ±0.05% of URL per year over a 5 – year period, ensuring stable and reliable measurements over time11.
- Rugged Design: It comes standard with 316 SST covers and sensor materials, which provide excellent corrosion resistance and can withstand harsh industrial environments. The transmitter is also available in explosion – proof configurations, meeting ATEX, IECEx, FM, or CSA standards, making it suitable for use in hazardous areas19.
- Easy Configuration: It can be configured directly from the local display or with a communicator for HART and FoxCom transmitters, offering convenience in setup and adjustment1.
Application Areas and Application Cases
- Application Areas: The Foxboro IDP10 – AF1C01F is widely used in various industries, including oil and gas, chemical, pharmaceutical, and food and beverage. It is suitable for applications such as level measurement in tanks, gauge pressure measurement in pipelines, and flow measurement in combination with other devices.
- Application Case: In a chemical plant, the Foxboro IDP10 – AF1C01F is used to measure the level of a corrosive liquid in a storage tank. The transmitter’s 316 SST wetted materials and robust design ensure reliable operation in the corrosive environment. Its high accuracy allows for precise monitoring of the liquid level, enabling efficient process control and preventing overflows or shortages.
Comparison with Competitors
Compared to similar products in the market, the Foxboro IDP10 – AF1C01F stands out for its high accuracy, long – term stability, and rugged design. It offers excellent corrosion resistance with its 316 SST covers and sensor materials. Its advanced diagnostic features and self – monitoring capabilities also allow for proactive maintenance, reducing downtime and maintenance costs. Additionally, its wide range of communication options and easy configuration make it highly compatible and user – friendly.
Selection Suggestions
- Compatibility: Consider the communication protocol required by your existing control system. The Foxboro IDP10 – AF1C01F supports HART, FoxCom, and analog outputs, so make sure it is compatible with your system.
- Installation Environment: If the installation environment is harsh or corrosive, choose the model with appropriate housing and wetted materials. The 316 SST – covered and explosion – proof versions are suitable for such environments.
- Budget: While the Foxboro IDP10 – AF1C01F offers high – quality performance, it’s important to consider your budget. Evaluate the features and performance you need to ensure you get the best value for your money.
Precautions
- Installation: Follow the installation instructions carefully. Ensure proper grounding and wiring to prevent electrical interference. For installation in hazardous areas, use the appropriate explosion – proof fittings and follow safety regulations.
- Maintenance: Regularly check the transmitter’s performance and calibration. Clean the sensor and housing as needed to prevent the buildup of dirt or corrosive substances. Replace the battery or power supply if necessary to ensure continuous operation.
