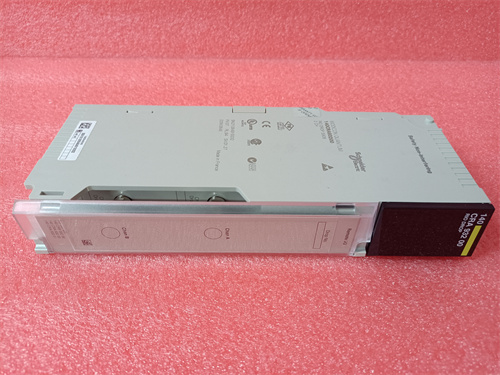

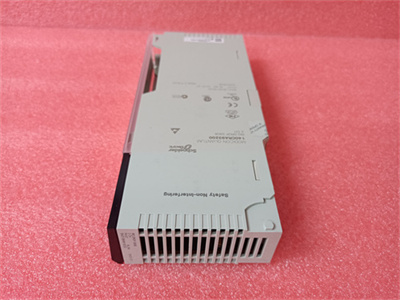

The 140CRA93200 is a remote I/O drop adapter module designed by Schneider Electric for use with the Modicon Quantum programmable logic controller (PLC) system5. It serves as a communication interface between the Quantum PLC and remote I/O devices or modules5. With two connectors featuring redundant cable functionality, the 140CRA93200 ensures reliable communication, as the redundant cable setup allows operations to continue even if one cable or connector malfunctions5. It supports the RIO communication protocol, which enables efficient, accurate, and timely data exchange between the PLC and connected devices5. This module allows users to effectively expand the I/O capabilities of their control systems by connecting remote I/O devices to the Modicon Quantum PLC, offering a flexible and scalable solution for various automation scenarios5.
Product Parameters15
- Electrical Parameters:
- Power Dissipation: 3.8 W (2 channels)
- Bus Current Requirement: 750 mA (2 channels)
- Isolation Voltage: 500 V dc (coaxial center and ground)
- Communication Parameters:
- Transmission Rate: 1544 Mbit/s
- Dynamic Range: 35 dB
- Interface Type: 2 female connectors F, elbowed with redundant cable, 75 ohm coaxial cable
- Compatibility: Compatible with Modicon Quantum series, including Quantum 200 series, 500 series, 800 series, or Sy/Max (any mix).
- Environmental Specifications:
- Operating Temperature: 0 – 60 °C
- Storage Temperature: – 40 – 85 °C
- Relative Humidity: 95% without condensation
- Operating Altitude: ≤ 5000 m
Advantages and Characteristics
The 140CRA93200 offers several notable advantages. Its redundant cable design and high – speed, deterministic RIO communication protocol ensure high – reliability data transmission5. In a manufacturing plant where continuous operation is crucial, the module’s redundant cable functionality has been proven to prevent production disruptions caused by cable failures. Moreover, it is easy to integrate into the Modicon Quantum system, allowing for seamless expansion of I/O capabilities with minimal configuration efforts.
Application Areas and Application Cases
This module is widely used in various industries, including manufacturing, energy, and automation control. For example, in a power plant, the 140CRA93200 is used to connect remote sensors and actuators to the Modicon Quantum PLC. It enables the central control system to monitor and control equipment in different areas of the power plant, such as steam turbines and generators, ensuring the safe and efficient operation of the entire power generation process.
Comparison with Similar Products
Compared to some similar products, the 140CRA93200 stands out with its high – speed transmission rate and robust redundant communication design. It can handle a large number of I/O expansion modules, providing greater flexibility and scalability. Additionally, its wide operating temperature range and high resistance to electrostatic discharge and electromagnetic fields make it more suitable for harsh industrial environments.
Selection Recommendations
When selecting the 140CRA93200, consider its compatibility with your existing Modicon Quantum PLC system. Ensure that the installation environment meets the module’s temperature, humidity, and altitude requirements. Also, take into account your budget, as the module’s price may vary depending on the supplier.
Precautions
During installation, follow the safety regulations and ensure proper grounding to prevent electrostatic discharge. When using the module, avoid exposing it to extreme temperatures, high humidity, or strong electromagnetic fields. Regularly check the cable connections for any signs of wear or damage and perform necessary maintenance to ensure the reliable operation of the 140CRA93200.
