Description
Technical Specifications for 1394C-SJT22-A
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1394C-SJT22-A |
| Product Line | Servo Controller |
| Module Type | System |
| Power Rating | 22 Kilowatt |
| Input Phase | 3 Phase |
| Series Enhancements | Terminations, Filtering (EMI), and Smart Power |
| Factory-Installed Options | Analog Input (10 VDC) |
| Input Voltage | 360-480AC Volts |
| Input Voltage | 360-480AC Volts |
| Nominal Bus Output Voltage 380/460 Volts | 530/680 Volts DC |
| Continuous Power Output 380/460 Volts | 17/22 Kilowatts |
| Peak Power Output | 136 Kilowatts |
| Efficiency | 98% |
| Continuous Current Output | 33.8 Amperes |
| Peak Current Output | 200 Amperes |
| Line Loss Ride Through | 20 ms |
| Rated AC Input Voltage | 324-528 Volts AC, 50-60 Hertz, 3 Phase |
| AC Input Current | 28.6 Amperes |

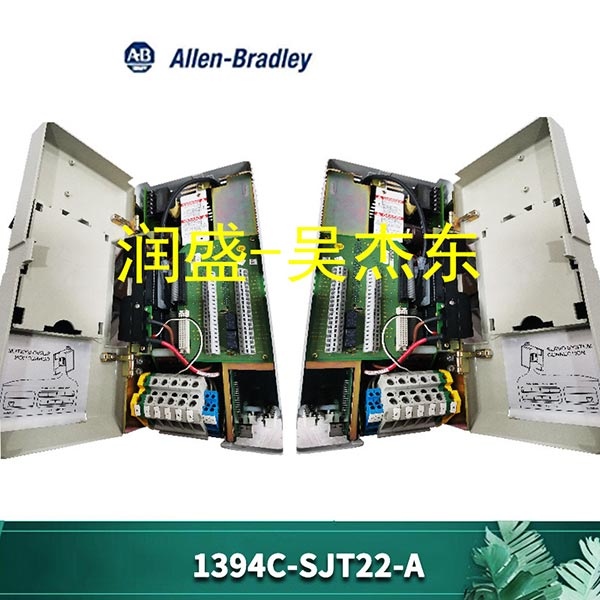

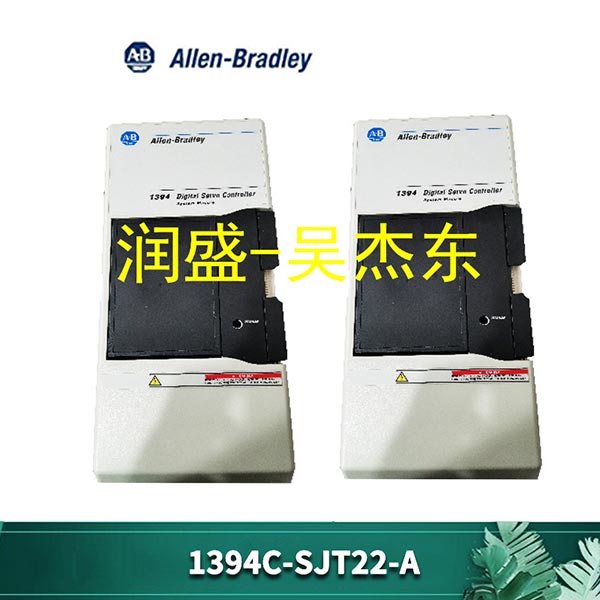

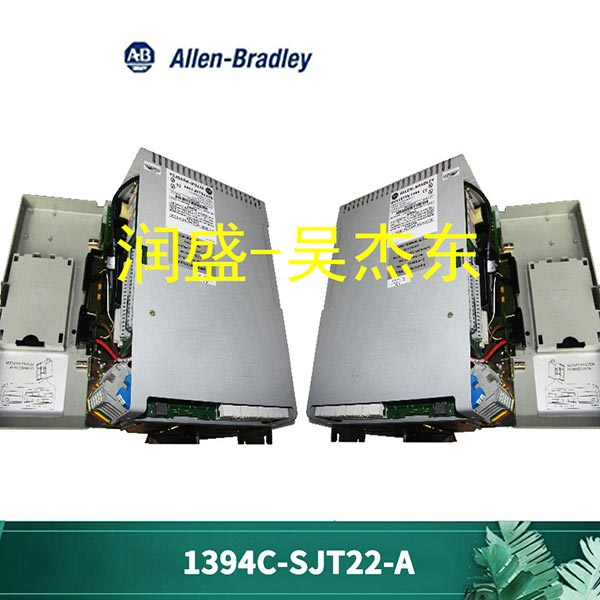

About 1394C-SJT22-A
The
1394C-SJT22-A is an
Allen-Bradley servo controller
with analog module functionality and a ±10 Volts DC analog interface. It is a Series C system module with features such as Smart Power, EMI filtering, and improved terminations. The
1394C- system can support up to four axes and work as a velocity or torque controller. It comes with the Bulletin 1201 Human-Machine Interface Module which allows automatic tuning and quick start-up. This 1394C-SJT22-A also has a SCANport interface
, a continuous output current of 33.8 Amps with DC voltage, a continuous output power of 22 kW
, and a three-phase power supply. The 1394C- has power inputs such as 24 Volts AC power, a disconnect function, a fuse block, and a 24 Volts DC power supply for motor brakes and thermal contacts.
The 1394C-SJT22-A functions on power between 324 and 528 Volts AC at 50 to 60 Hertz and an efficiency of 98%. The 1394C–SJT22-A has a capacitance of 660 µF, an inductance of 500 µH, and requires an external shunt module. The 1394C- has diagnostic features which include a current monitor, thermal overload detection, and a feedback signal monitor. In addition, it has status LEDs for the system and the axis modules. Electrical noise protection and improved grounding terminations are also included.
