Description
combined input/output channels are individually defined as input or output by Minghu program. This is done by reading or writing to the corresponding channel. Number of channels per module 8 inputs/transistor outputs Assign channels to group 1 of 8 channels If the channel is used as input channel En+1, 0—En+1, 07 If the channel is used as output channel An, 08—An, 15 Input/output status is signaled by a yellow LED per channel, LEDs functionally correspond to binary signals Other technical data For connection to the ABB Procontic CS31 system bus see binary input, see binary output Interface standard EIA RS-485 Electrical isolation Conductor cross section as a function of supply voltage, input/output Removable terminal block Mechanical data max. 2.5 mm2, distance between terminals 5.08 mm Mounted on DIN rail according to DIN EN 50022 – 35, 15 mm deep. The DIN rail is located halfway between the upper and lower edges of the module. Fasten with screws using 4 M4 screws. WxHxD 120 x 140 x 85mm Wiring method using a removable terminal block with screw terminals, Conductor cross section max. 2.5 mm2, end-to-end distance 5. 08 mm, max. 1. 5 mm2, end-to-end distance 3. 81 mm

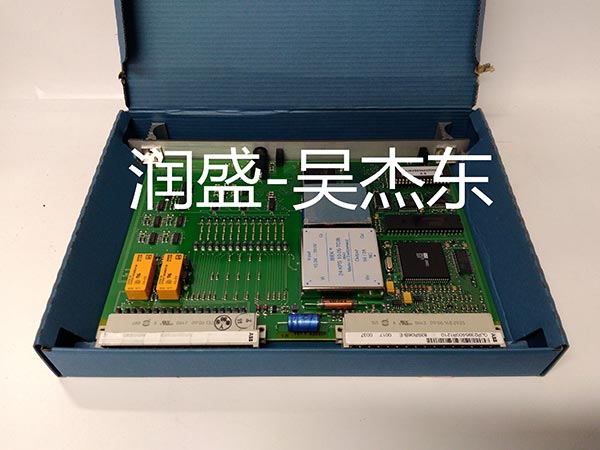

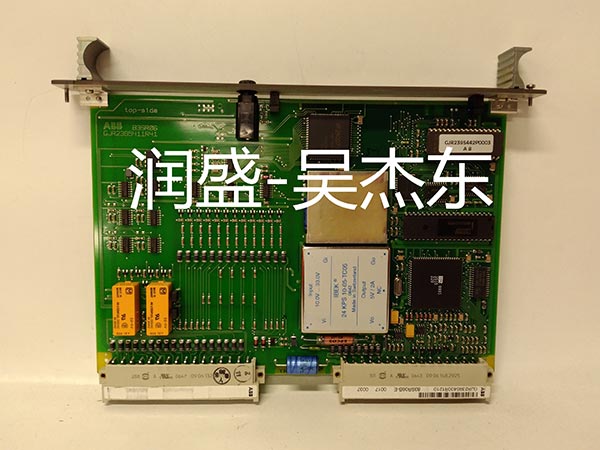

83SR06B-E GJR2395400R1210
