Description
Product features sensitivity The standard 9200 sensor is suitable for the temperature range of – 29 ℃ to+121 ℃. C (- 20 ° F to+250 ° F). The applicable temperature range of the 74712 high temperature sensor is – 29 ° C to+204 ° C (- 20 ° F to+400 ° F). sensitivity The sensitivity of the 9200 and 74712 sensors is 20 mV/mm/s (500 mV/in/s). If the calibration angle is correctly terminated and aligned, the sensitivity is ± 5%. The lateral sensitivity is 10% or less of the axial sensitivity. The two sensors can withstand a mechanical shock of up to 50 g (peak value) along the non sensitive transverse axis. frequency response The frequency response of both sensors ranges from the minimum operating frequency (4.5, 10 or 15 Hz, depending on the ordering option) to a maximum of 1 kHz (60000 cpm)+ 0, – 3dB (typical value). ———————————————— Copyright notice: This is an original article of the CSDN blogger “dkl113821586”, which follows CC 4.0 BY-SA copyright agreement. Please attach a link to the original source and this notice for reprinting. Original link: https://blog.csdn.net/dkl113821586/article/details/115699164

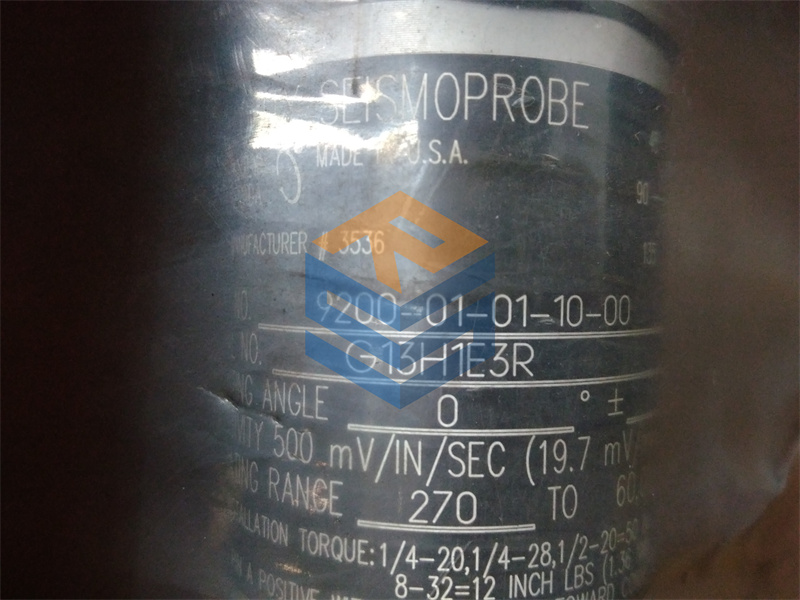

9200-01-01-10-00
