ABB 086339-001

The

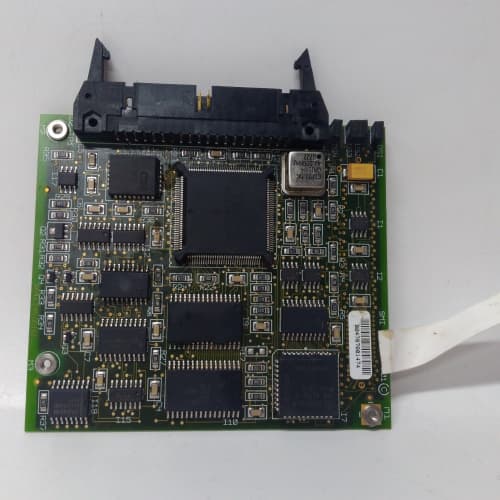

ABB 086339-001 is a precision input/output (I/O) module designed for ABB’s distributed control systems (DCS) and industrial automation platforms. This component, identifiable by its specific part number

086339-001, serves as a critical interface between field devices—such as sensors, actuators, and transmitters—and the central control processor. The

086339-001 module is engineered to provide reliable signal conditioning, isolation, and data conversion in demanding industrial environments. As part of ABB’s extensive automation portfolio, this module ensures accurate data acquisition and control signal distribution, maintaining process integrity across various industrial applications. Its robust construction and adherence to ABB’s quality standards make it a trusted component for continuous process operations.

Category:

Description

Technical Parameters

Understanding the technical specifications of the ABB 086339-001 is essential for proper system integration and ensuring compatibility with existing infrastructure. Below are the key parameters:

Parameter Specification
Manufacturer ABB
Part Number 086339-001
Type Industrial I/O Module
Function Signal conditioning and interface between field devices and control system
Power Supply Typically 24V DC (derived from backplane or external source)
Input/Output Channels Varies by configuration (specific channel count depends on variant)
Signal Types Analog (4-20mA, 0-10V), Digital, Thermocouple, RTD (configurable)
Isolation Voltage 1500V DC (channel-to-channel and channel-to-ground typical)
Accuracy ±0.1% of full scale (typical for analog channels)
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Humidity Range 5% to 95% (Non-condensing)
Mounting Type DIN rail or rack-mounted (dependent on system architecture)
Dimensions Standard ABB I/O module form factor
Communication Protocol Proprietary ABB I/O bus
Certifications CE, UL, CSA (typical for industrial control equipment)

The 086339-001 module is designed to meet the rigorous demands of industrial automation, with specifications that ensure reliable performance in challenging environments.

Advantages and Features

The offers numerous advantages that make it a preferred choice for process control applications:

  • High Signal Integrity: Advanced filtering and isolation techniques ensure that the 086339-001 provides clean, accurate signals even in electrically noisy industrial environments.
  • Modular Flexibility: The can be configured for various signal types, allowing it to adapt to different field device requirements without hardware changes.
  • Hot-Swappable Capability: In supported rack configurations, the 086339-001 can be replaced or reconfigured without powering down the entire system, minimizing production interruptions.
  • Diagnostic Intelligence: Onboard diagnostics continuously monitor the health of the , detecting issues such as open circuits, short circuits, or out-of-range conditions before they affect process control.
  • Robust Construction: Built with industrial-grade components, the 086339-001 withstands vibration, temperature extremes, and electrical transients common in manufacturing environments.
  • Backward Compatibility: The is designed to integrate with legacy ABB systems while supporting newer control platforms, protecting capital investments.
  • Reduced Wiring Complexity: By concentrating I/O functions in a single module, the 086339-001 simplifies field wiring and reduces termination points, improving overall system reliability.
  • Comprehensive Status Indication: LED indicators provide immediate visual feedback on power status, communication activity, and channel conditions for the ABB 086339-001.

Application Fields

The finds extensive application across multiple industrial sectors where precise monitoring and control are essential:

  • Process Manufacturing: In chemical, pharmaceutical, and food processing industries, the 086339-001 monitors critical parameters such as temperature, pressure, and flow, ensuring product quality and process efficiency.
  • Power Generation: The is deployed in power plants for monitoring boiler conditions, turbine parameters, and auxiliary systems, contributing to safe and efficient electricity production.
  • Water and Wastewater Treatment: Municipal and industrial water facilities utilize the 086339-001 to monitor pump status, tank levels, and treatment chemical dosing, ensuring regulatory compliance and operational reliability.
  • Oil and Gas: In refineries and pipeline operations, the provides reliable interface for pressure transmitters, valve positioners, and flow meters in hazardous areas.
  • Metals and Mining: The 086339-001 monitors conveyor systems, crushers, and processing equipment, helping maintain continuous operation in demanding environments.
  • Pulp and Paper: Paper mills employ the ABB 086339-001 for monitoring consistency, temperature, and pressure throughout the production process, ensuring product quality and machine efficiency.
  • Building Automation: Large commercial and industrial facilities use the 086339-001 for HVAC monitoring, energy management, and environmental control systems.

Comparison with Competing Products

When comparing the to similar I/O modules from other manufacturers, several differentiators become apparent:

Feature ABB 086339-001 Siemens ET200SP Allen-Bradley Flex I/O Emerson I/O Modules
Form Factor ABB proprietary Modular DIN rail Modular DIN rail Proprietary
Signal Density Medium-High High Medium Medium-High
Diagnostics Comprehensive onboard Advanced Standard Comprehensive
Hot-Swap Support Yes (in compatible racks) Yes Yes Yes
Integration with Legacy Excellent with ABB systems Good with Siemens Good with Rockwell Limited with non-Emerson
Typical Market Process industries Factory/Process Factory automation Process industries
Spare Parts Availability Good through surplus market Excellent (OEM) Excellent (OEM) Good through surplus

The 086339-001 distinguishes itself through its robust construction and seamless integration with ABB’s broader automation ecosystem. While competitors offer excellent products for their respective platforms, the provides particular advantages in applications requiring compatibility with existing ABB infrastructure and process-oriented features.

Selection Suggestions and Precautions

When considering the for your automation project, keep these important factors in mind:

  1. Verify Exact Configuration: The 086339-001 may have multiple configuration variants. Confirm that the specific module matches your requirements for channel count, signal types, and isolation requirements.
  2. Check System Compatibility: Ensure that the is compatible with your existing control system version, backplane, and communication protocol. Compatibility matrices should be consulted before purchase.
  3. Review Power Requirements: Verify that your power supply can accommodate the 086339-001 along with other modules in the rack. Consider both steady-state and inrush current requirements.
  4. Confirm Termination Hardware: The ABB 086339-001 typically requires specific termination blocks or cables for field wiring. Ensure these are available and compatible with your existing field wiring.
  5. Inspect for Physical Damage: When acquiring 086339-001 modules from the surplus market, carefully inspect for signs of damage, corrosion, or previous repairs that could affect reliability.
  6. Verify Firmware Revision: The contains firmware that should be compatible with your control system. Check revision levels and update if necessary before deployment.
  7. Consider Environmental Conditions: Ensure the installation environment falls within the specified operating parameters for the 086339-001 to prevent premature failure.
  8. Plan for Spares: Given the critical nature of I/O modules in control systems, maintain appropriate spares inventory of the based on your application’s criticality and lead times for replacement.
  9. Source from Reputable Suppliers: Due to the potential for counterfeit or improperly refurbished components, purchase the 086339-001 only from trusted sources like ZhongXinYuan Automation with proven track records in ABB legacy parts.
  10. Proper Handling Procedures: Follow ESD (electrostatic discharge) precautions when handling the to prevent damage to sensitive electronic components. Store modules in anti-static packaging when not in use.
  11. Document Current Configuration: Before replacing an existing 086339-001, thoroughly document all configuration settings, including any DIP switch positions, jumper settings, and wiring connections.
  12. Consider System Migration Path: As control systems age, consider your long-term migration strategy. While the ABB 086339-001 provides continued support for existing systems, eventual modernization may be necessary for access to newer technologies and expanded capabilities.
