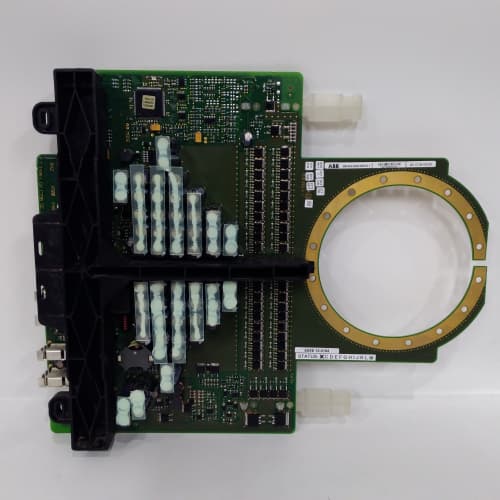

ABB 3BHE039203R0101 GVC736CE101 serves as a core control unit for ABB’s ACS 6000/8000 series medium-voltage drives, integrating analog/digital signal conversion, protocol communication, and fault diagnosis in a single compact module. The module supports industrial communication protocols including Profibus DP, Modbus TCP/IP, and Ethernet/IP, enabling seamless data exchange between drives, PLCs, and upper-level SCADA/DCS systems.
features built-in overvoltage, overcurrent, and overheating protection logic, which can trigger safety shutdowns in milliseconds to prevent equipment damage during abnormal operation. With a rugged industrial-grade enclosure and galvanic isolation between input/output channels,
ABB 3BHE039203R0101 GVC736CE101 ensures stable performance in harsh environments with high vibration, electromagnetic interference, and temperature fluctuations, making it ideal for heavy-duty industrial scenarios.
Technical Parameters
| Parameter Category | Specific Parameters |
|---|---|
| Module Type | Control & Interface Module for Medium-Voltage Drives |
| Compatible Systems | ABB ACS 6000/8000 Series MV Drives, ABB Symphony Plus |
| Communication Protocols | Profibus DP, Modbus TCP/IP, Ethernet/IP |
| I/O Channels | 8 analog inputs (4–20 mA), 6 analog outputs (4–20 mA), 12 digital inputs, 8 digital outputs |
| Working Voltage | 24 V DC ±10% |
| Power Consumption | ≤15 W |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 (for cabinet mounting) |
| Isolation Voltage | ≥2.5 kV (between channels and logic circuits) |
| Dimensions (L×W×H) | 280×180×85 mm |
| Weight | ≈ 2.2 kg |
| Certifications | CE, UL, IEC 61800, IEC 61508 (SIL 2) |
| Diagnostic Functions | Real-time fault monitoring, LED status indication, alarm log storage |
Advantages and Features
- Integrated Control & Communication: combines signal processing, protocol conversion, and fault protection in one module, reducing system component count and simplifying wiring.
- Broad Protocol Compatibility: Support for three mainstream industrial protocols enables flexible integration with third-party PLCs and SCADA systems without additional adapters.
- Enhanced Industrial Durability: Galvanic isolation, wide temperature range, and anti-electromagnetic interference design ensure reliable operation in harsh industrial environments.
- Rapid Fault Response: Built-in protection logic achieves millisecond-level safety shutdown, minimizing equipment damage risks during abnormal conditions.
- Seamless System Compatibility: Optimized for ABB medium-voltage drives and Symphony Plus, the module delivers optimal performance and plug-and-play integration.
Application Fields and Cases
Core Application Fields
- Power Industry: Control of medium-voltage motors for boiler feed pumps, induced draft fans, and water circulation systems in thermal/hydropower plants.
- Metallurgy Industry: Regulation of rolling mill drives, blast furnace blower motors, and conveyor systems in steel plants.
- Oil & Gas Industry: Management of pump and compressor drives in oil pipelines, refineries, and offshore platforms.
- Mining Industry: Control of crusher and conveyor belt drives in open-pit and underground mines.
Typical Application Cases
- Thermal Power Plant Boiler Fan Control: ABB 3BHE039203R0101 GVC736CE101 was deployed in a 600 MW thermal power plant to control the medium-voltage drive of the induced draft fan. The module’s real-time speed regulation and fault diagnosis functions reduced fan energy consumption by 12% and cut unplanned downtime by 30%.
- Steel Plant Rolling Mill Drive System: In a large steel plant, the module integrated with the ACS 8000 drive system to control the rolling mill motor, ensuring precise speed synchronization and stable torque output, which improved the surface quality of steel products by 15%.
- Oil Pipeline Compressor Control: The module managed the compressor drive system of a long-distance oil pipeline, with its anti-vibration and anti-interference design ensuring continuous operation even in extreme outdoor temperature conditions (-20°C to +65°C).
Comparison with Competing Products
| Aspect | ABB 3BHE039203R0101 GVC736CE101 | Competitor 1 (Siemens 6SL3055-0AA00-3AA1) | Competitor 2 (Allen-Bradley 1756-L72) |
|---|---|---|---|
| Module Function | Control + Communication + Protection | Communication + Basic Control | PLC Control Only |
| Protocol Support | Profibus DP, Modbus TCP/IP, Ethernet/IP | Profinet, Modbus | Ethernet/IP, ControlNet |
| Operating Temperature | -25°C to +70°C | 0°C to +60°C | -20°C to +60°C |
| SIL Rating | SIL 2 | SIL 1 | SIL 2 |
| Drive Compatibility | ABB ACS 6000/8000 MV Drives | Siemens SINAMICS G Series | Allen-Bradley PowerFlex |
Key Competitive Advantage: ABB 3BHE039203R0101 GVC736CE101 stands out with its integrated control-communication-protection design, broader operating temperature range, and seamless compatibility with ABB medium-voltage drives, making it the optimal choice for heavy-duty industrial drive control systems.
Selection Suggestions
- Medium-Voltage Drive Systems: is the original matching module for ACS 6000/8000 series drives, ensuring 100% compatibility and optimal performance.
- Harsh Environment Applications: For projects with high vibration, wide temperature fluctuations, or strong electromagnetic interference, the module’s rugged design provides unmatched reliability.
- Multi-Protocol Integration Needs: If the system requires connection to multiple protocols (Profibus DP, Modbus TCP/IP), the module eliminates the need for additional protocol converters, reducing costs.
- Safety-Critical Scenarios: The SIL 2 certification and rapid fault response make it suitable for safety-critical applications such as power plant fan control and oil pipeline compressor management.
Precautions
- Installation: Install ABB 3BHE039203R0101 GVC736CE101 in compliance with ABB’s official installation manual, adhering to anti-static procedures to avoid damaging electronic components.
- Wiring: Use shielded cables for analog signal wiring, and separate power cables from signal cables to minimize electromagnetic interference.
- Configuration: Configure communication parameters and protection logic only via ABB’s official DriveCom software to avoid system conflicts.
- Maintenance: Regularly check LED status indicators and alarm logs; replace the module only after powering off the drive system, or use hot-swap functionality if supported by the platform.
- Load Matching: Ensure that digital/analog output loads do not exceed the module’s rated capacity to prevent permanent damage.
