Product Description
The

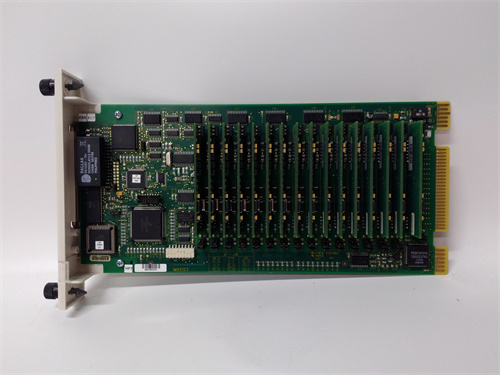

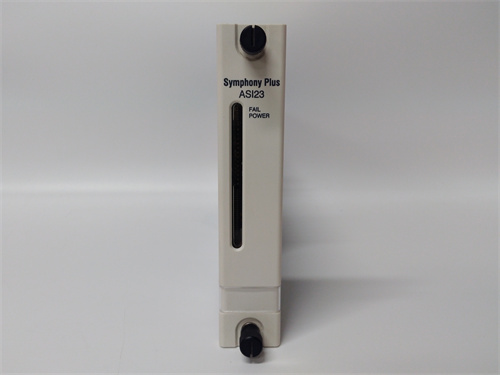

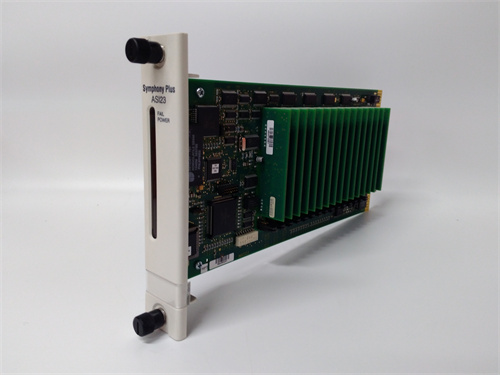

ABB SPASI23 is a specialized analog output module belonging to ABB’s extensive and highly-regarded Advant OCS (Open Control System) and MOD 300 product families. This module serves as a critical interface component within a distributed control system (DCS), responsible for converting digital control signals from the process controller into precise, industry-standard analog current signals to command field devices. In essence, the
acts as the vital link between the control system’s logic and the final control elements in the plant. It enables precise modulation of valves, drives, and other actuators based on computed setpoints. Engineered for reliability in industrial environments, this module is a staple in legacy ABB DCS installations, particularly within the S800 I/O subsystem, where it ensures long-term stability and accurate signal transmission. The design of the
emphasizes high channel density, easy configuration, and robust electrical isolation to protect the sensitive controller backplane from noise and faults originating in the field wiring. For engineers maintaining or expanding an existing ABB MOD 300 or Advant system, sourcing a genuine
ABB SPASI23 module is essential for system integrity. Further details can be found on the product page for
.
Product Parameters
- Manufacturer / Brand:
- Product Family: Advant OCS / MOD 300 / S800 I/O
- Model: SPASI23
- Type: Analog Output Module
- Output Type: Current output, typically 4-20 mA.
- Number of Channels: Commonly 4 or 8 channels per module (specific variant must be confirmed).
- Resolution: High resolution (e.g., 16-bit) for precise output control.
- Load Capacity: Capable of driving a specified maximum loop resistance (e.g., up to 750 Ohms).
- Isolation: Channel-to-channel and channel-to-system bus isolation to prevent noise propagation and ground loops.
- Communication Interface: Integrates directly with the S800 I/O station’s Fieldbus via a dedicated mounting base unit (e.g., TU830, TU839).
- Diagnostics: Module typically includes status LEDs and internal diagnostics for fault detection.
Advantages and Features
- High Precision and Stability: Provides accurate and drift-free analog output signals, crucial for precise process control in applications like flow control or reactor temperature regulation.
- Robust Industrial Design: Built to operate reliably in environments with electrical noise, vibration, and wide temperature ranges common to process plants.
- Excellent Isolation: Electrical isolation protects the central controller from surges or faults on the field side, enhancing overall system safety and uptime.
- Seamless System Integration: Designed specifically for the ABB S800 I/O architecture, ensuring guaranteed compatibility and communication performance within the Advant/MOD 300 DCS.
- Proven Reliability: As a key component in many installed ABB systems worldwide, the has a long track record of dependable service in critical continuous processes.
Application Cases in Application Fields
- Chemical Processing: In a continuous polymer production line, the ABB SPASI23 module receives a digital setpoint from the DCS controller to adjust the opening of a control valve governing the flow of a catalyst, ensuring precise recipe adherence.
- Oil & Gas – Refining: At a refinery’s distillation column, the module outputs a 4-20 mA signal to position the stroke of a pneumatic control valve on a steam line, maintaining exact pressure and temperature setpoints for optimal separation.
- Pulp & Paper: In a paper machine’s dryer section, the analog output from the controls the speed regulator of a variable-frequency drive (VFD) on a fan, modulating air flow to maintain precise moisture content in the paper web.
Comparisons with Competing Products
- Vs. Generic Analog Output Cards: Generic or third-party modules may offer similar I/O functions but lack the guaranteed firmware integration, diagnostic reporting, and hardware compatibility with the ABB S800 station and its configuration tools, which the SPASI23 provides.
- Vs. Newer Modules (e.g., from Symphony Plus): Compared to the latest generation I/O modules, the represents proven, legacy technology. Newer modules may offer higher channel density, faster communication, and more advanced diagnostics, but are not backward-compatible with older Advant/MOD 300 systems.
- Vs. PLC-based Analog Outputs: While a standard PLC analog output card can perform the same basic function, the ABB SPASI23 is integral to a high-availability, process-optimized DCS architecture, often featuring higher levels of redundancy support and integration with ABB’s advanced control algorithms.
Selection Suggestions and Precautions
- Verify System Compatibility: Confirm that your existing DCS is an Advant OCS or MOD 300 system using the S800 I/O platform. The is not compatible with ABB’s newer AC 800M PLC-based systems or Symphony Plus DCS without specific interfaces.
- Check Exact Module Variant: Determine the precise requirements: number of channels (e.g., 4 or 8), required backplane mounting unit (TU type), and any specific firmware version needed for your system’s CIU/CIM.
- Source Authentic Spares: For reliable operation, procure genuine or certified refurbished modules from authorized channels or reputable automation spare part specialists. Counterfeit modules risk system instability or failure.
- Consider Redundancy Needs: For critical control loops, evaluate if your application requires a redundant output configuration and ensure the system architecture supports it.
- Handle with ESD Precautions: Like all electronic modules, handle the ABB SPASI23 using proper electrostatic discharge (ESD) protection to prevent damage to internal circuits.
- Plan for Configuration: Replacement modules may need commissioning via the DCS engineering station (e.g., using ABB’s Batch Manager or Control Builder) to download the correct configuration and signal parameters.
