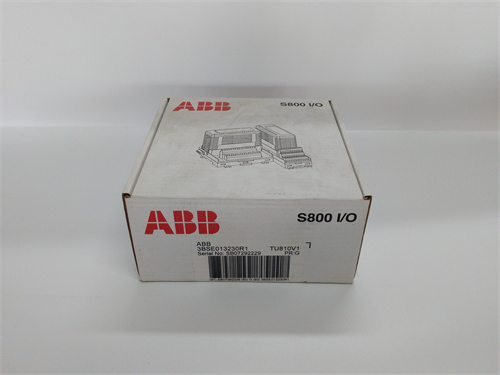

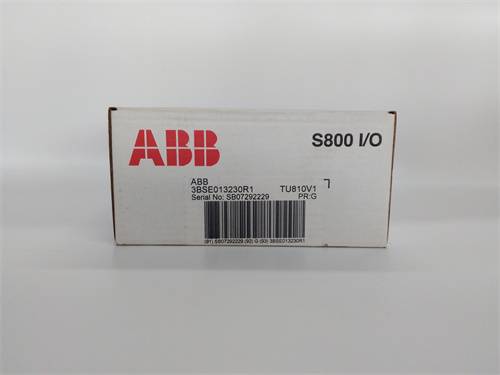

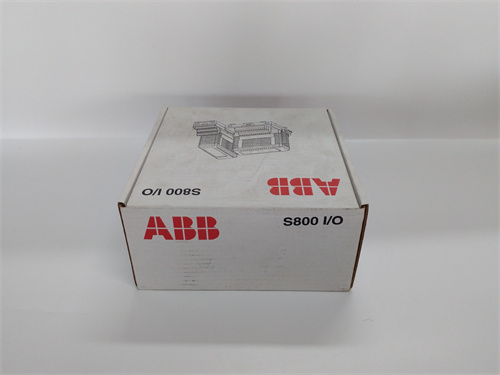

ABB TU810V1 Product Overview
ABB TU810V1 is a high-reliability Termination Unit designed specifically for ABB’s Advant Controller 800xA and S800 I/O systems. This module serves as the critical interface between field instrumentation and the distributed control system (DCS), providing secure and organized termination points for analog and digital signals. The exemplifies ABB’s commitment to modular flexibility in industrial automation, enabling efficient cabinet wiring while maintaining signal integrity in demanding process environments.
Product Parameters and Specifications
The ABB TU810V1 is engineered with precision to meet the rigorous demands of process control applications:
- Module Type: Termination Unit for S800 I/O modules, specifically designed for compact mounting
- Mounting: DIN rail mountable, allowing for efficient use of cabinet space and simplified installation
- Number of Channels: Typically accommodates up to 16 field signals depending on the connected I/O module type
- Field Termination: Features screw terminal connections for secure and reliable field wiring
- Module Connection: Provides a dedicated backplane connector for seamless integration with S800 I/O modules
- Operating Temperature: Rated for extended industrial temperature ranges, ensuring reliable performance in harsh environments
- Dimensions: Compact form factor optimized for high-density cabinet layouts
Advantages and Functional Features
The offers numerous benefits that enhance system reliability and maintainability:
- Modular Design: Enables hot-swapping of I/O modules without disturbing field wiring, significantly reducing downtime during maintenance or replacement
- Integrated Cable Management: Features clearly labeled terminals and organized wiring channels that simplify troubleshooting and reduce wiring errors during installation
- Robust Construction: Built with high-quality materials that resist vibration, corrosion, and electrical noise, ensuring signal integrity in industrial environments
- LED Indication: Provides visual status indicators for power and communication, facilitating rapid diagnostics during commissioning and operation
- Mechanical Keying: Incorporates mechanical coding options to prevent incorrect I/O module insertion, protecting both the termination unit and the electronics module
Application Cases in Industry
The is deployed across various process industries where reliable signal termination is essential:
- Oil and Gas Refineries: Terminates analog signals from pressure transmitters, temperature sensors, and flow meters in critical process control loops
- Chemical Processing Plants: Provides secure connections for both analog and digital signals in reactor control and batch management systems
- Power Generation Facilities: Interfaces with turbine instrumentation, boiler sensors, and auxiliary system monitoring points
- Pharmaceutical Manufacturing: Supports validated environments with reliable signal termination for critical process parameters
- Water and Wastewater Treatment: Connects field devices in filtration systems, chemical dosing units, and pumping stations to the central control system
Competitive Comparison and Selection Advice
Compared to generic termination solutions, the ABB TU810V1 offers specific advantages for ABB system integration:
- Selection Advice: When specifying the , verify compatibility with your specific I/O module types (analog input, analog output, digital input, digital output) as termination arrangements may vary. Consider environmental conditions at the installation location to ensure the ABB TU810V1 operating temperature range meets your requirements. For hazardous area applications, verify whether intrinsically safe barriers or isolators are required between field devices and the termination unit.
- Precautions: Ensure proper grounding practices are followed to maintain signal integrity and protect against electrical noise. Verify that field wiring does not exceed the terminal capacity specified in the documentation. When installing in high-vibration environments, consider additional mechanical securing methods beyond standard DIN rail clips. Always label field wiring clearly to facilitate future maintenance and troubleshooting of the ABB TU810V1 installation.
