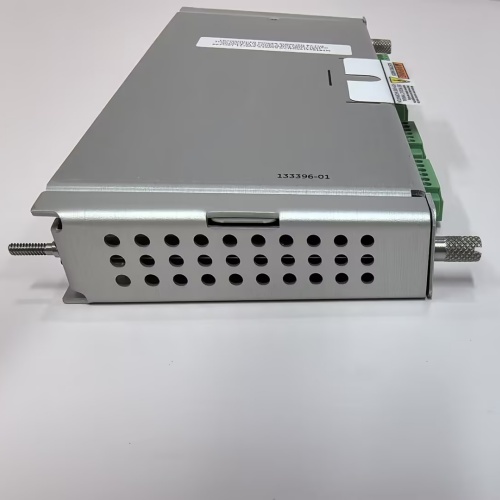

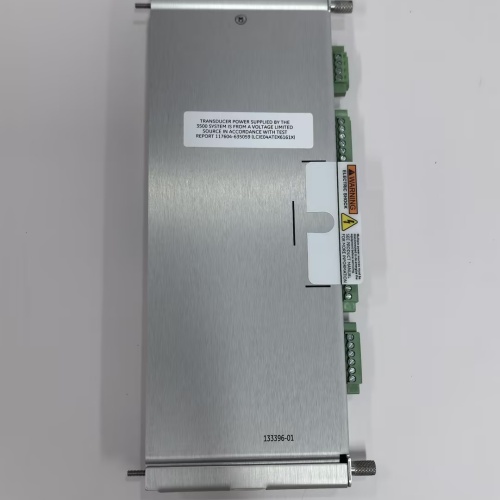

BENTLY 133396-01 3500/42M Proximitor Relay Module

Product Description

The

BENTLY 133396-01 is a critical component within the Bently Nevada 3500 Series monitoring system, specifically functioning as a 3500/42M Proximitor/Seismic Relay Module. Designed and manufactured by Bently Nevada (now part of Baker Hughes), this module is the industry standard for machinery protection and vibration monitoring in rotating equipment. The

accepts inputs from proximity probes, seismic transducers, and velocity transducers, processing these signals to provide real-time vibration and position measurements. It then compares these measurements against user-programmable alarms and danger setpoints to deliver relay outputs for machinery protection. For reliability engineers and maintenance professionals in critical industries, the

represents the gold standard for preventing catastrophic machinery failures through continuous, accurate vibration monitoring. This module is the heart of many turbine and compressor protection systems worldwide, ensuring operational safety and asset longevity.

Product Parameters

Understanding the technical specifications of the is essential for proper system configuration and machinery protection strategy:

Model Number: (3500/42M Module)
Compatible Rack: Bently Nevada 3500 Series Monitoring System
Input Channels: 4 channels per module
Input Types: Accepts proximity probe (eddy current), seismic accelerometer, and velocity transducer signals
Transducer Compatibility: Compatible with Bently Nevada 3300, 7200, and 3300 XL series proximity transducers
Measurements: Radial vibration, axial position, eccentricity, thrust position, seismic vibration, and acceleration
Relay Outputs: Four independent relay outputs with programmable setpoints (Alert and Danger)
Frequency Response: 0 to 10 kHz depending on transducer type and configuration
Dynamic Range: Selectable full-scale ranges from 0-100 mils to 0-1000 mils (or metric equivalents)
Power Requirements: +24 VDC and -24 VDC from rack backplane
Front Panel Indicators: LED status indicators for channel OK, bypass, alarm, and danger conditions

Advantages and Features

The offers unparalleled functionality for critical machinery protection, with features that have made it the industry benchmark:

Continuous Machinery Protection: The BENTLY 133396-01 provides uninterrupted monitoring of rotating machinery, instantly detecting changes in vibration or position that could indicate developing faults such as unbalance, misalignment, or bearing wear.
Programmable Alarm Setpoints: Users can configure independent Alert and Danger setpoints for each channel, allowing for early warning of developing issues and automatic machinery shutdown at critical levels.
Dual Voting Logic: The supports sophisticated alarm logic, including voting requirements (e.g., 1-out-of-2, 2-out-of-3) to prevent spurious trips while maintaining protection integrity.
Built-in Relay Outputs: With four integrated relays, the module can directly initiate annunciation or machinery shutdown without requiring external relay interface hardware.
Bypass Functionality: The includes channel bypass capabilities, allowing maintenance personnel to work on individual sensors or circuits without triggering nuisance alarms or trips on the protected machinery.
Historical Data Recording: The module captures peak vibration values and event data, providing valuable information for trend analysis and root cause investigation of machinery problems.

Application Fields

The is deployed wherever high-value rotating machinery requires continuous protection against mechanical faults:

Gas and Steam Turbines: Extensively used in power generation facilities to monitor turbine vibration, expansion, and rotor position, preventing blade rubs and bearing failures.
Centrifugal and Axial Compressors: Essential in oil and gas production, pipeline transmission, and refinery applications to monitor critical compressors handling flammable or hazardous gases.
Pumps and Fans: Applied on large boiler feed pumps, cooling water pumps, and induced draft fans where failure would result in significant production losses.
Hydroelectric Generators: Used in hydro plants to monitor turbine runout, vibration, and thrust bearing wear in both vertical and horizontal configurations.
Paper Machine Rolls: Deployed in paper mills to monitor large dryer rolls and calendar stacks where bearing condition directly impacts product quality.
Marine Propulsion: Installed on main propulsion turbines and thrust bearings aboard LNG carriers, naval vessels, and icebreakers where machinery reliability is mission-critical.

Comparison with Competing Products

When compared to vibration monitoring solutions from other manufacturers (such as Emerson CSI, Siemens SIPLUS CMS, or GE Bently’s own predecessor products), the demonstrates distinct advantages:

Industry Standard Acceptance: Bently Nevada is widely recognized as the de facto standard for API 670 compliant machinery protection systems. The BENTLY 133396-01 meets the rigorous requirements of this specification, which many general-purpose vibration monitors do not.
Transducer Interchangeability: The maintains precise calibration matching with Bently Nevada proximity probes, ensuring that measurement accuracy is maintained when sensors are replaced without requiring system recalibration.
Proven Reliability: With decades of installed base across every continent, the has demonstrated mean time between failure (MTBF) statistics that significantly exceed those of competitive offerings.
Software Ecosystem: The module integrates seamlessly with Bently Nevada’s System 1 software platform, providing advanced diagnostics, trending, and predictive maintenance capabilities that competitors often cannot match without additional hardware.
Interchangeability: Unlike some competitors that require complete system replacement when upgrading, the maintains backward compatibility with older Bently racks and power supplies, protecting capital investment.

Selection Suggestions and Precautions

When integrating the into your machinery protection system, consider these expert recommendations:

Configuration Software Requirements: The requires Bently Nevada’s proprietary configuration software and a suitable interface (such as the 3500 Rack Configuration Software running on a compatible computer with a 3500/20 Rack Interface Module). Ensure you have access to the correct software version before attempting configuration.
Transducer Compatibility Verification: While the BENTLY 133396-01 is compatible with many Bently transducers, verify that your specific probe model and extension cable are supported by the module’s firmware revision. Older 7200 series probes may require specific configuration settings.
Rack Slot Position: The must be installed in an appropriate slot within the 3500 rack, with proper consideration for power supply capacity and communication with the Rack Interface Module. Refer to the 3500 series manual for specific slot assignments.
Alarm Setpoint Rationalization: When programming the , carefully rationalize alarm and danger setpoints based on machinery OEM recommendations, historical operating data, and industry standards (ISO 10816, API 670) to avoid nuisance trips while maintaining adequate protection.
Relay Output Wiring: Ensure that relay contacts from the are properly rated for the load they will be switching. For inductive loads such as relay coils or solenoid valves, install appropriate snubber circuits to prevent contact damage.
Environmental Considerations: The is designed for installation in clean, climate-controlled environments. If the rack must be located in a harsh area, consider using a purged or sealed enclosure to protect the module from contamination and humidity.
Spare Parts Strategy: Given the critical nature of machinery protection, maintain a spare BENTLY 133396-01 module configured with your standard settings to enable rapid replacement in case of module failure. Store the spare in anti-static packaging in a controlled environment.
