Description
Parameters and specifications:

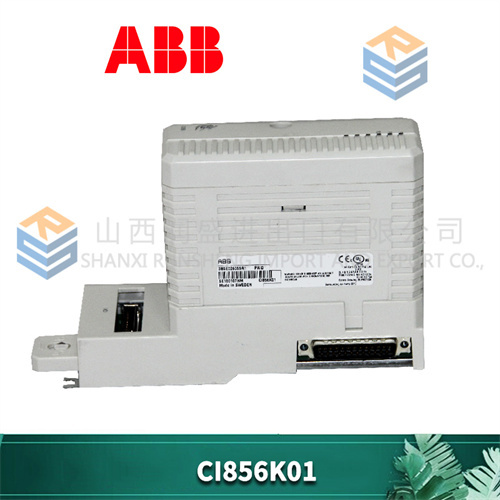

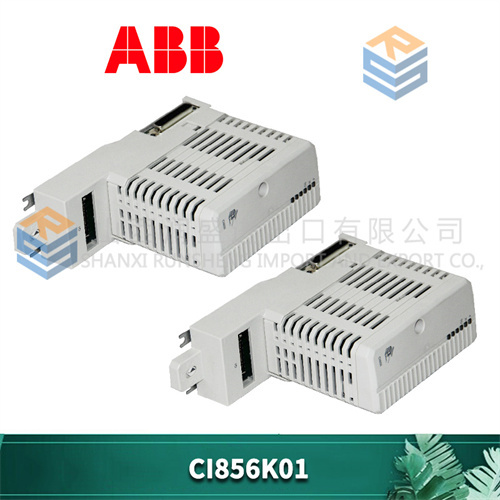

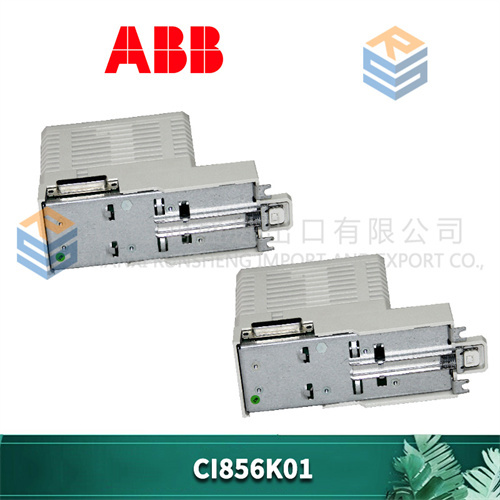

Model: CI856K01. Product Number: 3BSE026055R1. Transfer speed: up to 200 data sets/second. Maximum number of cells on the CEX bus: 12. Power consumption: Typical value is 120mA (24V).
Size and weight:
Height: 185mm (7.3 in). Width: 59mm (2.3 in). Depth: 127.5mm (5.0 in). Weight: Approximately 0.7 kg (1.5 lb).
Features:
Compatibility: Can communicate with a wide range of process controllers from ABB and other vendors with extensive connectivity. Easy installation: Support field installation, adjacent to the sensor and trigger, reduce the wiring cost. Redundancy and hot swap: Redundant I/O modules support hot swap, improving production efficiency and system reliability. High integration: I/O modules are highly integrated and SIL3 certified.
