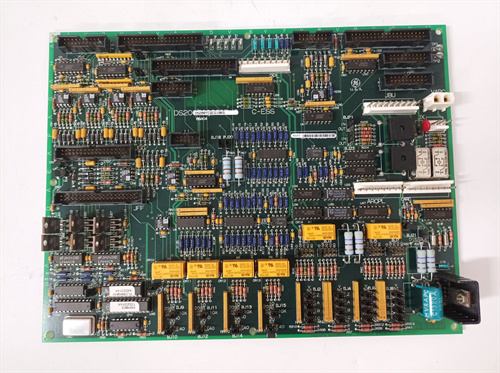

DS200TCQCG1BKG
The DS200TCQCG1BKG is a significant element within the spectrum of PLC automation systems. It serves as a crucial link in enabling the seamless operation of industrial processes, mainly focusing on temperature control and signal management.
The is designed to receive temperature-related signals from a variety of sensors, such as thermocouples and resistance temperature detectors (RTDs). After acquiring these signals, it processes them to accurately determine the temperature values. Based on pre – programmed setpoints, the module can then generate control signals. These signals are used to regulate heating or cooling equipment, ensuring that the temperature within industrial systems remains within the desired range. Additionally, the module has diagnostic functions to detect any malfunctions in the sensor or its own operation. This helps prevent unexpected temperature fluctuations and equipment failures. The is highly valued for its accurate temperature control capabilities, reliable performance in industrial environments, and compatibility with a wide range of automation components.
Product Parameters
- Power Supply Voltage:
- Input Voltage: 120/240V AC, 50/60Hz
- Tolerance: ±10%
- Interface Types:
- Multiple terminals for connecting thermocouples and RTD sensors
- Serial communication interfaces: RS – 485 for data transfer to other devices in the automation network
- Sensor Compatibility:
- Compatible with various types of thermocouples (e.g., J, K, T, E)
- Supports RTD sensors with common resistance values
- Temperature Measurement Range:
- Depending on the sensor type, can measure temperatures from -200°C to 1300°C
- Control Outputs:
- Digital Outputs: 4 channels, capable of driving relays for controlling heating or cooling equipment
- Analog Outputs: 2 channels, outputting signals in the range of 0 – 10V or 4 – 20mA for proportional control
- Operating Temperature Range:
- 0°C to 50°C
- Relative Humidity:
- 5% – 95% (non – condensing)
Advantages and Features
- Accurate Temperature Control: In a food processing plant, maintaining precise temperature is crucial for product quality. The DS200TCQCG1BKG has been used to control the temperature of ovens and refrigeration units. Over a year of operation, it has ensured that the temperature variation is within ±1°C, significantly reducing product spoilage and improving the overall quality of the food products.
- Reliable Performance: In a chemical manufacturing facility, where the environment is harsh with the presence of corrosive gases and high levels of electromagnetic interference, the has continued to operate smoothly for more than three years without any major failures. Its robust design and shielding protect it from external interference, ensuring stable temperature control.
- Wide Compatibility: A plastics manufacturing company upgraded its temperature control system. The was easily integrated with their existing PLC system, sensors, and actuators. This seamless integration saved the company both time and cost during the upgrade process.
Application Areas and Application Cases
- Application Areas: The DS200TCQCG1BKG is applicable in various industries such as food and beverage, chemical manufacturing, plastics processing, and pharmaceuticals. It is used in scenarios where accurate temperature control is essential, like oven temperature regulation, refrigeration system control, and reaction vessel temperature monitoring.
- Application Case: In a pharmaceutical manufacturing plant, the is used to control the temperature of fermentation tanks. By precisely maintaining the temperature within the optimal range for the fermentation process, the plant has increased the yield of pharmaceutical products by 15% while ensuring consistent product quality.
Comparison with Similar Products
Compared to other similar temperature control modules in the market, the DS200TCQCG1BKG offers more accurate temperature control with a smaller temperature variation range. It has a wider compatibility with different types of sensors and automation systems. Its diagnostic functions are more advanced, enabling quicker detection and resolution of issues. Additionally, it can operate in a relatively wide power supply range, providing more flexibility in different industrial setups.
Selection Suggestions
- Compatibility: When choosing the , check its compatibility with your existing sensors, actuators, and PLC system. Ensure that the interface types match and that the communication protocols are compatible. Consider future expansion plans and make sure the module can accommodate additional components.
- Installation Environment: Evaluate the installation environment. If it is a high – temperature or high – humidity area, ensure that the module can operate within those conditions. Also, consider the presence of electromagnetic interference and choose appropriate shielding or isolation measures if necessary.
- Budget: Compare prices from different suppliers. Consider not only the initial purchase cost but also long – term costs such as maintenance, spare parts, and energy consumption. Balance the cost with the module’s performance and features to make the most cost – effective choice.
Precautions
- Safety: Before installing the , turn off the power supply to avoid electrical shock. Follow the installation instructions carefully and use appropriate tools. Make sure all connections are secure and properly insulated.
- Maintenance: Regularly check the module for any signs of damage, loose connections, or abnormal operation. Clean the module to remove dust and debris. Calibrate the temperature measurement function periodically to ensure accurate readings. Update the firmware as recommended by the manufacturer to improve performance and security.
