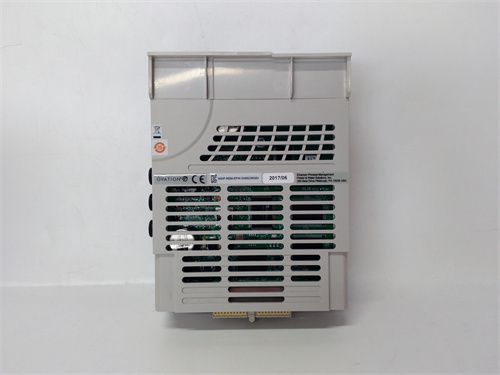

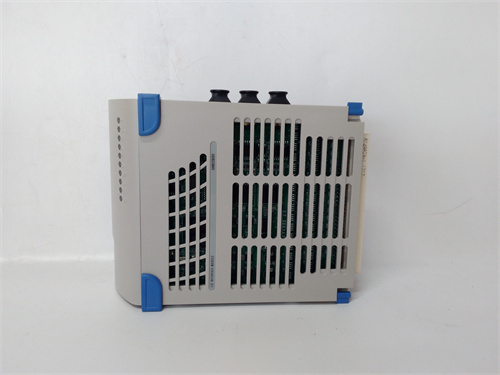

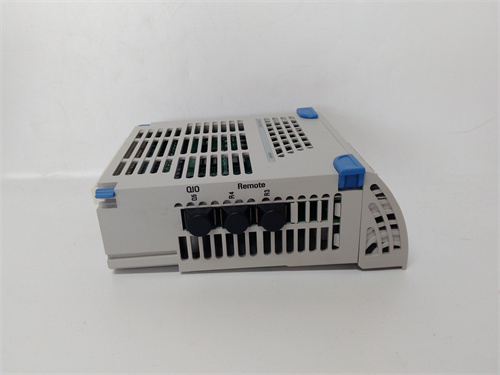

EMERSON 5X00226G03

Description

EMERSON 5X00226G03 is a high-reliability digital input/output (I/O) module manufactured by Emerson, designed for integration into industrial automation systems—specifically tailored for use with Emerson’s Ovation Distributed Control System (DCS) and DeltaV DCS. It is engineered to handle discrete signal processing for critical applications in power generation, oil & gas, and chemical processing, enabling reliable monitoring of equipment status and control of actuators.

Product Description

 belongs to Emerson’s family of Ovation I/O modules, a line known for seamless compatibility with Emerson’s DCS platforms and compliance with industrial safety standards. This module features a dual-channel design with 16 digital inputs (DI) and 8 digital outputs (DO): the DI channels support 24V DC signals (sourcing/sinking configurable) for monitoring devices like limit switches, pressure switches, and status indicators, while the DO channels use relay contacts (2A/250V AC, 2A/30V DC) to control valves, pumps, and alarm horns. This configuration makes  a versatile solution for both status monitoring and discrete control in a single module.

A standout feature of  is its built-in redundancy and fault-tolerance. The module supports “1oo2” (1-out-of-2) voting logic for critical DI signals—two independent channels monitor the same signal, and the module validates consistency before transmitting data to the DCS. This prevents false alarms caused by sensor faults or electromagnetic interference (EMI), a common issue in industrial environments. Additionally, EMERSON 5X00226G03 includes real-time fault diagnostics: it continuously monitors channel health (e.g., open circuits, short circuits) and transmits error codes to the Ovation DCS, allowing maintenance teams to quickly locate and resolve issues without system downtime.

In practical applications,  is often deployed in power plants and refineries where uptime is mission-critical. For example, in a combined-cycle power plant,  monitors the status of gas turbine auxiliary pumps (via DI) and controls the opening/closing of fuel isolation valves (via DO). If a pump’s status signal is lost (indicating a fault), the module triggers an alarm in the Ovation DCS and automatically closes the fuel valve via DO, preventing unsafe operation.

EMERSON 5X00226G03 also excels in environmental durability. It features a rugged, compact design for DIN rail mounting in control cabinets, with an operating temperature range of -40°C to +70°C and resistance to EMI (compliant with IEC 61000-6-2). It is certified to ATEX and IECEx standards for use in hazardous areas (Zone 2 for explosive gases), eliminating the need for additional enclosures in oil & gas facilities. The module also supports hot-swapping—faulty units can be replaced without shutting down the entire I/O rack, minimizing process disruption.

Technical Specifications

Advantages and Features

1. Seamless DCS Integration:  is purpose-built for Emerson’s Ovation and DeltaV DCS, ensuring plug-and-play compatibility and eliminating the need for third-party adapters.
2. Redundancy & Fault Tolerance: “1oo2” voting logic and real-time diagnostics reduce false alarms and enable quick fault resolution, critical for safety-critical applications.
3. Hazardous Area Compliance: ATEX and IECEx certifications allow direct use in Zone 2 environments (e.g., refineries), simplifying installation and reducing costs.
4. Hot-Swappable Design: Modules can be replaced without shutting down the I/O rack, minimizing process downtime during maintenance.
5. Wide Environmental Range: -40°C to +70°C operating temperature and EMI resistance ensure reliable performance in harsh industrial conditions.

Application Cases by Industry

• Power Generation (Combined-Cycle Plants):  monitors 12 gas turbine auxiliary pump statuses (DI) and controls 6 fuel isolation valves (DO). If a pump fault is detected (DI signal loss), the module closes the corresponding fuel valve (DO) and alerts operators via the Ovation DCS, preventing turbine damage.
• Oil & Gas (Refineries): In a crude oil distillation unit,  tracks the position of 8 pressure relief valves (DI) and controls 4 emergency shutdown (ESD) valves (DO). If a relief valve opens unexpectedly (DI signal), the module triggers an ESD sequence via DO, isolating the unit to prevent hydrocarbon leaks.
• Chemical Processing (Polymer Plants): EMERSON 5X00226G03 monitors 10 reactor door seal sensors (DI) and controls 5 raw material feed pumps (DO). If a seal is broken (DI signal), the module stops the feed pumps (DO) to prevent chemical spills and ensures compliance with safety regulations.

Comparison with Competitors

Selection Recommendations and Precautions

Selection Recommendations

1. DCS Compatibility: Choose  if using Emerson Ovation or DeltaV DCS—its native integration avoids compatibility issues common with third-party modules.
2. Safety Requirements: For SIL 2 applications (e.g., ESD systems), ’s “1oo2” voting logic is superior to competitors without built-in redundancy.
3. Hazardous Environments: Prioritize EMERSON 5X00226G03 for oil & gas or chemical facilities—its ATEX/IECEx certifications eliminate the need for expensive explosion-proof enclosures.

Precautions

1. Wiring Compliance: Ensure DI/DO wiring uses shielded cables (grounded at one end) to minimize EMI interference, especially in areas with high-voltage equipment.
2. Relay Load Limits: Do not exceed the DO relay’s rated current (2A) or voltage (250V AC/30V DC)—overloading can damage the module and cause unplanned shutdowns.
3. Redundancy Setup: When configuring “1oo2” voting, use identical sensors for paired DI channels to ensure consistent signal validation.
4. Regular Maintenance: Perform annual checks of relay contacts (for DO) and input circuits (for DI) using Emerson’s Ovation Diagnostics Tool to prevent premature failure.
