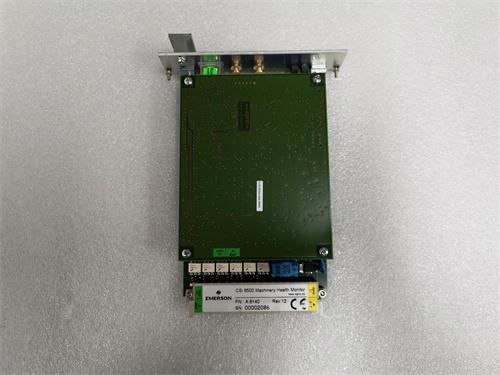

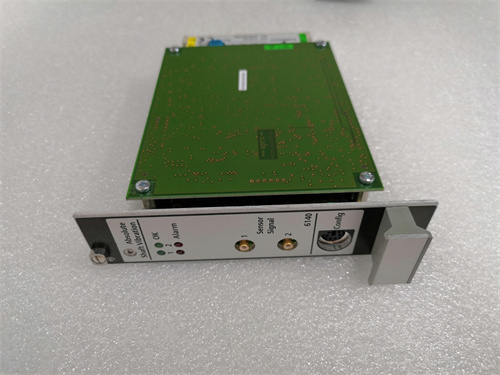

EMERSON A6140 9199-00058

Description

Product Description

The

EMERSON A6140 9199-00058 is a specialized communication and power distribution module designed for Emerson’s Ovation distributed control system (DCS). This module, commonly referred to as a

Remote I/O Power Supply and Controller Interface, plays a dual role: it provides conditioned power to a cluster of remote I/O modules and serves as the communication gateway between those I/O modules and the Ovation controller network. The

A6140 9199-00058 is a cornerstone for building distributed I/O drops, allowing for the placement of I/O points much closer to field devices to reduce wiring costs and improve signal integrity. Implementing the

Emerson A6140 module is essential for creating scalable and robust Ovation DCS architectures in large industrial plants.

Product Parameters and Specifications

Product Type: Remote I/O Power Supply and Controller Interface Module.
Compatible System: Emerson Ovation DCS.
Primary Functions:
1. Power Supply: Provides isolated and regulated DC power (typically +5V, +/-15V) to all I/O modules installed in the same remote I/O baseplate or chassis.
2. Communication Gateway: Manages data exchange between the connected I/O modules and the Ovation controller via a high-speed serial link (e.g., Ovation I/O Bus).
Mounting: Installs in a dedicated slot within an Ovation remote I/O baseplate or chassis.
I/O Module Capacity: Supports a defined number of I/O modules (e.g., up to 16 slots) in its associated baseplate, depending on the specific chassis configuration and power budget.
Network Interface: Features ports or terminals for connecting the serial communication cable (often a redundant pair) back to the Ovation controller or network.
Status Indicators: Includes comprehensive LED indicators for power, communication status, and system faults.

Advantages and Features

Integrated Power and Control: The EMERSON A6140 9199-00058 consolidates power distribution and communication control into a single module, simplifying remote I/O node design, reducing component count, and enhancing reliability.
Enables Distributed I/O Architecture: This module is the key enabler for placing I/O racks far from the central controller room (often up to several kilometers), dramatically reducing long-run field wiring costs for signals like thermocouples and RTDs.
High Reliability and Isolation: Provides fully isolated power to the I/O modules, protecting sensitive measurement circuits from ground loops and electrical noise prevalent in plant environments, which is critical for analog signal accuracy.
Deterministic Communication: Manages a high-speed, deterministic data link between the controller and the I/O, ensuring precise and timely data acquisition and control output for process loops.
Hot-Swappable Design: In properly configured redundant systems, the A6140 module can typically be replaced without powering down the entire I/O drop, supporting high system availability and ease of maintenance.

Application Cases in Various Fields

Fossil and Nuclear Power Generation: Used to create remote I/O drops in the turbine hall, boiler area, or feedwater system, collecting data from thousands of temperature, pressure, and flow points near the equipment.
Water and Wastewater Treatment: Distributes I/O points across large treatment plants for pump control, valve actuation, and chemical dosing, communicating back to a central Ovation SCADA system.
Oil & Gas Production Platforms: Consolidates I/O from various deck levels and remote skids into a centralized control system, minimizing hazardous area wiring.
Pharmaceutical and Biotechnology: Supports batch process control by placing I/O close to reactors, filtration skids, and clean utilities, ensuring accurate recipe execution.

Comparison with Competing Products

vs. Standard PLC Remote I/O Adapters: While similar in concept, the A6140 9199-00058 is deeply integrated into the Ovation DCS ecosystem. It offers seamless configuration within the Ovation engineering toolset, robust diagnostics, and is optimized for the high I/O density and mix (analog/digital) typical of large process DCS applications.
vs. Using Individual Components (Separate Power Supply & Comm Card): The integrated design of the Emerson reduces engineering, wiring, and spare parts inventory. It ensures guaranteed compatibility and performance, unlike piecing together separate components.
vs. Other DCS Remote I/O Controllers (e.g., ABB S800 I/O with Link Interface): Each DCS vendor has a proprietary solution. The A6140 is distinguished by its tight integration with Ovation’s controller redundancy, network architecture, and comprehensive system-wide diagnostics.

Selection Suggestions and Precautions

System Compatibility Verification: This module is exclusively for Emerson Ovation systems. Confirm compatibility with your specific Ovation controller model, network version, and baseplate/chassis type (e.g., A6110, A6120 series).
Accurate Power Budget Calculation: Before populating the remote I/O chassis, you must calculate the total power consumption of all intended I/O modules to ensure it does not exceed the capacity of the A6140 9199-00058 power supply. Refer to the Ovation hardware planning guide.
Redundancy Planning: For critical processes, specify a redundant pair of A6140 modules and ensure the chassis and network are configured for redundancy. This involves careful planning of module placement and communication cabling.
Network Topology and Cabling: Adhere strictly to Emerson’s specifications for the communication cabling (type, length, termination). The performance of the entire I/O drop depends on a properly installed network link.
Configuration and Addressing: Each A6140 module and its associated I/O drop must be correctly addressed and configured within the Ovation Developer Studio software. Incorrect addressing will prevent communication with the controller.
