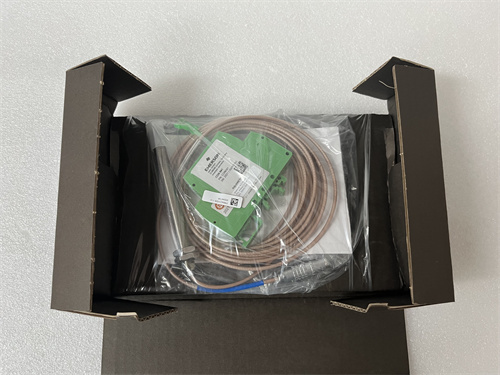

Product Description: EPRO PR6423/001-121+CON041
EPRO PR6423/001-121+CON041 is a high-precision proximity sensor system designed for industrial machinery condition monitoring and position detection, delivering reliable performance in critical rotating equipment applications. As a flagship product from EPRO’s vibration and position sensing lineup, the
+ combines a rugged sensor probe (PR6423/001-121) with a matching signal conditioner, ensuring accurate measurement of shaft displacement, speed, and vibration. Whether deployed in turbines, motors, or generators, the
EPRO PR6423/001-121+CON041 stands out for its compatibility with EPRO’s monitoring systems and compliance with global industrial standards, making it a trusted choice for predictive maintenance and asset protection.
Product Parameters
| Parameter | Specification |
|---|---|
| Brand & Model | EPRO PR6423/001-121+CON041 |
| Type | Eddy-Current Proximity Sensor System (Probe + Signal Conditioner) |
| Measurement Range | 0-12mm (probe tip to target) |
| Output Signal | 4-20mA (proportional to displacement) + 0-10V DC (optional) |
| Resolution | 0.01mm |
| Accuracy | ±0.1% of full scale |
| Operating Temperature (Probe) | -40°C to +120°C |
| Operating Temperature (Conditioner) | -20°C to +70°C |
| Protection Rating | Probe: IP68; Conditioner: IP20 (panel-mounted) |
| Power Supply | 24V DC (18-32V DC) |
| Power Consumption | Max 5W (conditioner + probe) |
| Certification | CE, UL, CSA, IEC 60034, ATEX (for hazardous areas) |
| Probe Material | Stainless steel (316L) |
Advantages and Features
The + offers distinct technical advantages that set it apart from standard proximity sensor systems:
- Integrated Probe + Conditioner Design: The pre-calibrated combination of PR6423/001-121 probe and conditioner eliminates compatibility issues, reducing setup time and ensuring plug-and-play functionality.
- High Precision Measurement: 0.01mm resolution and ±0.1% full-scale accuracy enable precise monitoring of shaft displacement, speed, and vibration, supporting predictive maintenance and early fault detection.
- Extreme Temperature Resilience: The probe operates reliably in temperatures up to 120°C, while the conditioner withstands -20°C to +70°C, making the +CON041 suitable for high-temperature machinery (e.g., gas turbines, steam engines).
- Rugged & Hazardous Area Compliance: IP68-rated probe (waterproof, dustproof) and ATEX certification allow safe operation in harsh and explosive environments (Zone 1/2/21/22), expanding its application in oil, gas, and power industries.
- Seamless Monitoring Integration: Compatible with EPRO MMS6000/MMS6300 monitoring systems and third-party PLCs/DCS via 4-20mA output, enabling real-time data analysis and remote equipment diagnostics.
Application Cases
The EPRO PR6423/001-121+ is widely adopted across industries requiring precise rotating equipment monitoring:
- Power Generation: Deployed in thermal, nuclear, and hydroelectric power plants to monitor turbine shaft displacement, generator rotor vibration, and motor speed, preventing catastrophic equipment failure and ensuring grid stability.
- Oil & Gas: Used in offshore platforms, refineries, and pipelines to monitor pump shafts, compressor rotors, and gearbox vibrations, supporting predictive maintenance and reducing unplanned downtime.
- Marine Engineering: Integrated into ship propulsion systems (main engines, propeller shafts) and offshore wind turbines to monitor shaft alignment and vibration, ensuring safe and efficient marine operations.
- Manufacturing: Utilized in steel mills, paper mills, and cement plants to monitor rotating machinery (e.g., rollers, fans, crushers) for early signs of wear or misalignment, optimizing maintenance schedules and extending equipment life.
Comparison with Competing Products
| Feature | EPRO PR6423/001-121+CON041 | Competing Product X | Competing Product Y |
|---|---|---|---|
| Measurement Range | 0-12mm | 0-8mm | 0-10mm |
| Probe Operating Temperature | -40°C to +120°C | -20°C to +80°C | -30°C to +100°C |
| Resolution | 0.01mm | 0.05mm | 0.02mm |
| Protection Rating (Probe) | IP68 | IP65 | IP67 |
| Hazardous Area Certification | ATEX (Zone 1/2/21/22) | CE only | ATEX (Zone 2/22) |
| Integrated Conditioner | Yes (CON041) | Sold separately | Yes (basic model) |
The +CON041 outperforms competitors in measurement range, temperature resilience, and hazardous area compliance, making it the preferred choice for critical rotating equipment monitoring.
Selection Suggestions and Precautions
Selection Suggestions
- Choose the EPRO PR6423/001-121+ if your application requires high-precision displacement/speed monitoring (0-12mm range) or operation in high-temperature/hazardous environments.
- Opt for this system if you are using EPRO monitoring systems or need seamless integration with PLCs/DCS via 4-20mA output, as it ensures reliable data transmission and compatibility.
- For rotating equipment with shaft diameters ≥50mm (e.g., turbines, large motors), the + offers optimal measurement accuracy and durability compared to smaller-range alternatives.
Precautions
- Install the EPRO PR6423/001-121+CON041 by qualified technicians trained in eddy-current sensor calibration to ensure proper probe alignment (gap setting) and signal integrity.
- Verify that the power supply matches the 24V DC requirement and use shielded cables for signal transmission to minimize electromagnetic interference (EMI) in industrial environments.
- Regularly clean the probe tip to remove dust, oil, or debris, as contamination can affect measurement accuracy and damage the sensor.
- Calibrate the system annually (per EPRO’s recommended schedule) to maintain ±0.1% accuracy, especially for critical applications like turbine monitoring.
- Avoid exposing the signal conditioner to excessive moisture or mechanical stress beyond its IP20 rating, and ensure proper ventilation to prevent overheating.
