Description

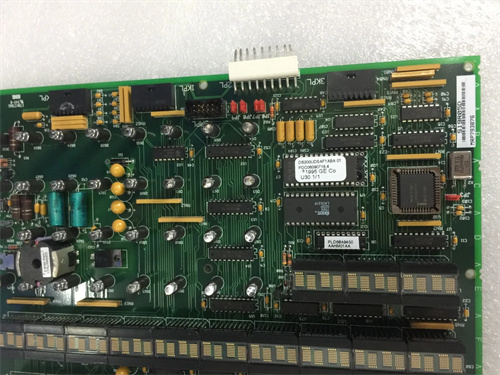

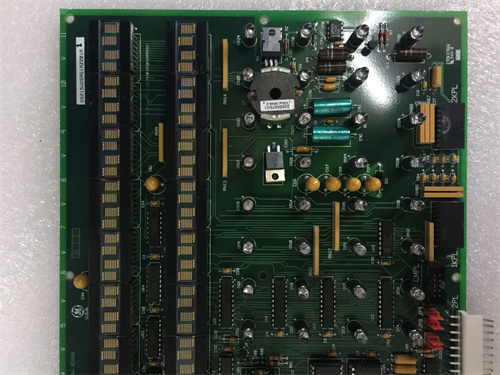

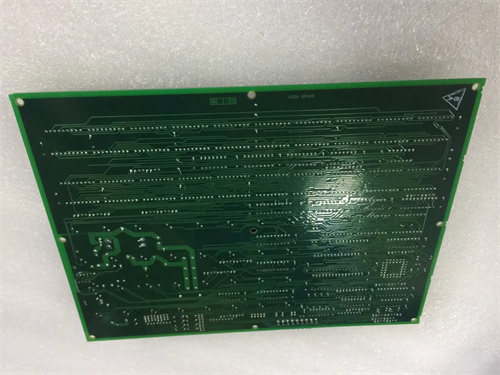

The parameters of the GE DS200NATOG2A voltage feedback panel are as follows: Model: DS200NATOG2A Type: Voltage feedback panel Number of resistors: five Connector: 20-pin ribbon connector Voltage protection: Metal oxide rheostat prevents high voltage Load resistance position: On the attached gate distribution status board, not on the NATO board Input: Multiple VLG and VLL inputs Output: A VLG output The DS200NATOG2A board belongs to the G2 version of the NATO board and is used with two other boards in the LS2100 series (a gate distribution status board and a VME backplane) The GE DS200NATOG2A voltage feedback panel features the following: Has attenuator voltage. Model voltage feedback detector board with attenuator voltage set by stab connector and jumper Has five resistor strings. There are five resistor strings on the DS200NATOG2A board for AC and DC inputs With metal oxide rheostat. The DS200NATOG2A board has metal oxide rheostat to prevent each resistor string from becoming too high in case the output strip circuit is interrupted In addition, the DS200NATOG2A voltage feedback scale board also features the required load resistance for operation in the attached gate distribution status board
