Technical Parameters

Understanding the technical specifications of the GE DS200SLCCG1AEE is crucial for proper system integration and troubleshooting. Below are the key parameters:

Parameter	Specification
Manufacturer	General Electric (GE)
Series	Mark V Speedtronic

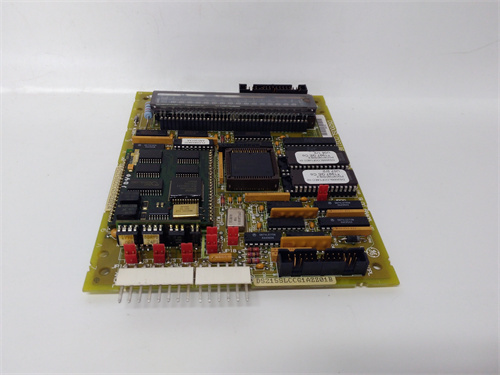

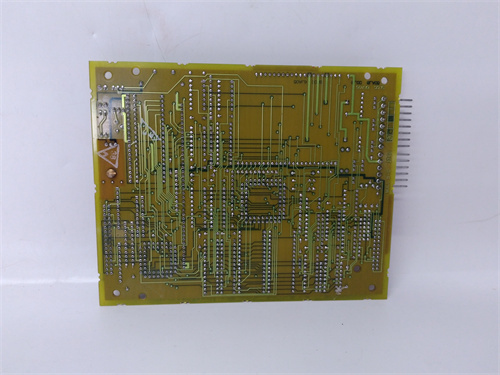

Part Number	DS200SLCCG1AEE
Board Type	LAN Interface Board / Communication Module
Function	Provides Ethernet/LAN connectivity for Mark V system
Power Requirements	+5V DC and ±15V DC (from backplane)
Communication Protocols	Ethernet (proprietary GE implementation)
Connectors	Multiple RJ45 ports, backplane connectors
LED Indicators	Status LEDs for power, link activity, and fault conditions
Operating Temperature	0°C to 55°C (typical industrial environment)
Dimensions	Standard VME-style form factor
Mounting	Plugs into Mark V rack backplane
Compatibility	GE Mark V turbine control systems

The DS200SLCCG1AEE is specifically engineered to meet the demanding requirements of turbine control applications, where communication reliability directly impacts equipment safety and availability.

Advantages and Features

The incorporates several design features that make it indispensable for Mark V system operators:

High-Speed Communication: Enables rapid data exchange between turbine controllers and human-machine interfaces (HMIs), supporting real-time monitoring and control of critical turbine parameters.
Fault-Tolerant Design: Built with redundancy in mind, the supports dual-network configurations to maintain communication even if one path fails, aligning with the Mark V’s overall redundancy philosophy.
Diagnostic Capabilities: Onboard LEDs provide immediate visual feedback on the operational status of the , allowing technicians to quickly identify communication issues without specialized tools.
Proprietary Protocol Implementation: The utilizes GE’s optimized communication protocols, ensuring deterministic data transfer essential for turbine control applications.
Robust Construction: Designed to withstand the electrical noise and environmental conditions typical of power generation facilities, the DS200SLCCG1AEE provides reliable long-term operation.
Seamless Integration: As a native Mark V component, the integrates effortlessly with existing GE turbine control systems without requiring additional interface hardware.
Legacy Support: Critical for facilities operating mature Mark V systems, the ensures continued operability of existing turbine installations.

Application Fields

The GE DS200SLCCG1AEE is primarily deployed in industries where GE Mark V turbine control systems are utilized:

Power Generation: The primary application for the is in gas and steam turbine power plants. It facilitates communication between turbine controllers, plant DCS systems, and operator workstations, enabling efficient power generation management.
Cogeneration Facilities: In combined heat and power (CHP) plants, the supports integrated control of turbines and heat recovery systems.
Industrial Power Generation: Large manufacturing facilities with on-site power generation utilize the to monitor and control turbine-driven generators.
Oil and Gas Production: In offshore platforms and remote production facilities, the helps maintain reliable communication for turbine-driven compressors and generators.
Pipeline Compression Stations: Natural gas pipeline stations using turbine-driven compressors rely on the DS200SLCCG1AEE for control system networking.

Comparison with Competing Products

When comparing the GE DS200SLCCG1AEE to communication modules from other turbine control systems, several distinctions emerge:

Feature	GE DS200SLCCG1AEE	Siemens T3000 Communication Module	Woodward Communication Interface
Target System	GE Mark V	Siemens Turbine Control	Woodward controls
Form Factor	Proprietary Mark V rack	Proprietary Siemens	Various (modular)
Communication Speed	Optimized for Mark V	High-speed industrial Ethernet	Application-dependent
Redundancy	Native dual-network support	Available in redundant configs	Optional
Protocol	GE proprietary	Profibus, Profinet	Modbus, CANbus, others
Obsolescence Stage	Mature / Legacy	Active / Supported	Mixed
Spare Market	Well-established surplus market	OEM support available	Moderate availability

The occupies a specific niche supporting GE’s installed base of Mark V systems. While modern systems offer faster speeds and open protocols, the remains essential for facilities with significant investment in Mark V infrastructure.

Selection Suggestions and Precautions

When procuring and implementing the , consider the following important factors:

Verify Exact Revision: The may have multiple revisions. Ensure the specific board revision matches your Mark V system requirements, as compatibility can vary between revisions.
Check Firmware Version: The contains firmware that must be compatible with your control system software. Verify firmware version before installation to avoid communication issues.
Inspect Physical Condition: Given the mature status of Mark V systems, many DS200SLCCG1AEE boards on the market are used or refurbished. Carefully inspect for capacitor leakage, corrosion, or prior repair work.
Confirm Backplane Compatibility: The GE DS200SLCCG1AEE plugs into specific slots in the Mark V rack. Verify slot compatibility and any required jumper settings for your configuration.
Review Network Configuration: Understand your network topology before installing the . Mark V systems often use specific IP addressing schemes and network segmentation requirements.
Consider Redundancy Requirements: If your application demands high availability, ensure you have appropriate redundant modules configured for failover operation.
Source from Reputable Suppliers: Due to the critical nature of turbine controls and the prevalence of counterfeit components, purchase the only from trusted sources like ZhongXinYuan Automation with proven track records in GE legacy parts.
ESD Protection: Always follow proper electrostatic discharge (ESD) procedures when handling the to prevent damage to sensitive components.
Document Current Configuration: Before replacing an existing DS200SLCCG1AEE, thoroughly document all network settings, jumper positions, and cable connections to ensure proper reinstallation.
Plan for Migration: As Mark V systems age, consider developing a long-term migration strategy. While the GE DS200SLCCG1AEE provides continued support, eventual system modernization may be necessary for access to newer technologies and support.
