Description

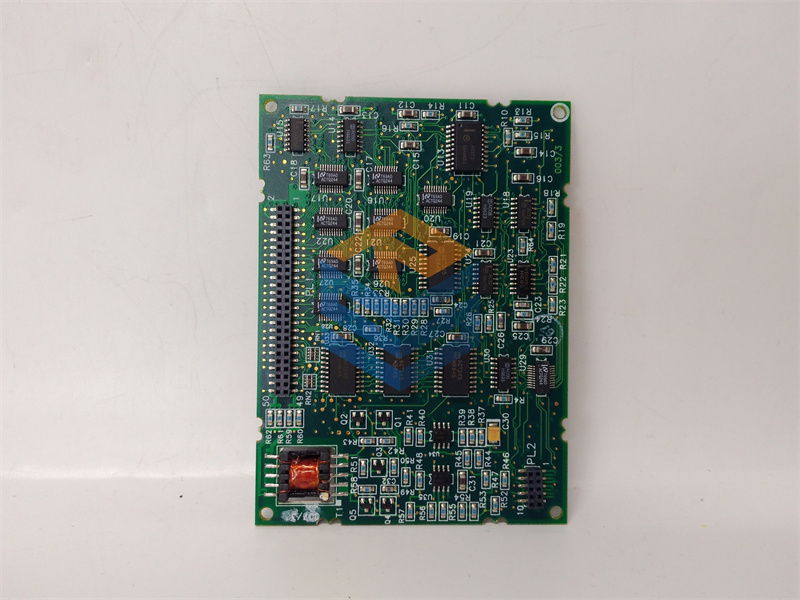

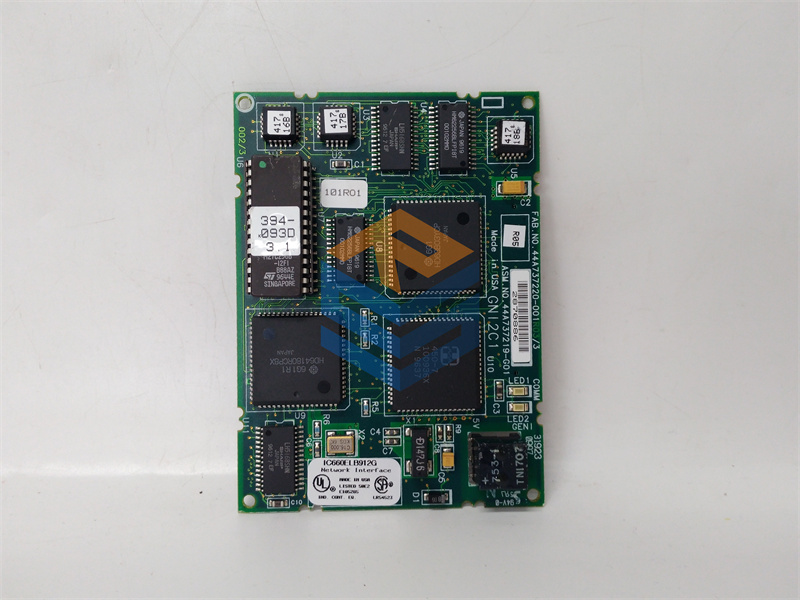

The GE IC660ELB912 is a Genius I/O block that provides 16 isolated input circuits. Each input circuit can accept either AC or DC voltage, and is designed to interface with a wide variety of sensors and devices. The module is equipped with diagnostic LEDs that can be used to quickly identify any issues that may arise.
Product Description
The IC660ELB912 module is part of GE’s Genius I/O system, which is a configurable I/O system that can be customized to meet the needs of a wide variety of industrial applications. The module is designed to interface with a wide variety of sensors and devices, and provides 16 isolated input circuits.
Product Parameters
- Input Voltage: 24 VDC nominal
- Input Voltage Range: 16 to 32 VDC
- Input Current: 4 mA maximum
- Input Impedance: 3.2 kOhm
- Operating Temperature: -40 to 70°C
Specifications
- Isolation Voltage: 1500 VAC (continuous)
- Isolation Resistance: 500 MOhm minimum
- Input Circuit Response Time: 3 ms maximum
- Input Circuit Update Time: 5 ms maximum
- Output Data Refresh Time: 10 ms maximum
- Dimensions: 4.96 x 5.0 x 1.77 in (126 x 127 x 45 mm)
:
