Product Description

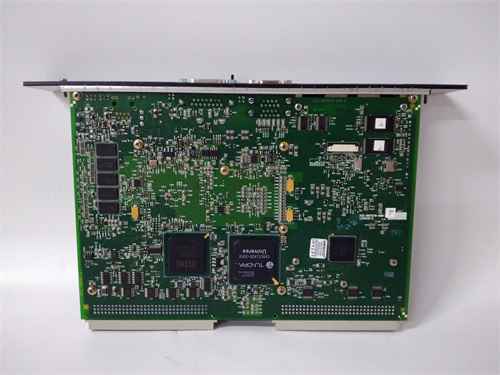

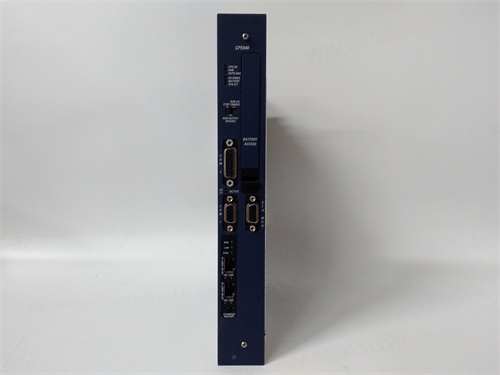

GE IC698CPE040 is a significant product from General Electric (GE), a well-established brand in the industrial automation industry.
The is a high-performance programmable logic controller (PLC) processor module. Its core function is to execute control programs, process input signals from various sensors, and generate appropriate output signals to control industrial processes. It can handle a wide range of control tasks, such as sequential control, analog control, and motion control. For instance, in a manufacturing plant, the can receive input signals from sensors monitoring the position, speed, and temperature of production equipment. Based on the pre-programmed logic, it can then send control signals to actuators like motors, valves, and solenoids to ensure the smooth operation of the production line. In an energy management system, this module can be used to control the generation, distribution, and consumption of electrical power by processing data from power meters and other related sensors.
The offers several notable advantages. It has a high processing speed, enabling rapid execution of complex control programs. It also features strong reliability and stability, capable of operating continuously in harsh industrial environments with high temperatures, vibrations, and electrical noise. Additionally, it has good compatibility with other GE automation products, making it convenient to integrate into existing GE-based automation systems.
Product Parameters
| Parameter | Description |
|---|---|
| Input Voltage Range | 24 VDC (±10%) |
| Power Consumption | Approximately 10 W |
| Processor Type | 32-bit RISC processor |
| Processor Speed | Up to 200 MHz |
| Memory Capacity | 512 MB Flash memory, 256 MB RAM |
| Input/Output (I/O) Capacity | Supports up to 4096 I/O points (with appropriate I/O modules) |
| Communication Interfaces | Ethernet (10/100 Mbps), RS-232, RS-485 |
| Data Transfer Rate | Up to 100 Mbps for Ethernet communication |
| Operating Temperature Range | 0°C to 60°C |
| Relative Humidity Range | 5% to 95% (non-condensing) |
| Compatibility | Compatible with GE’s RX3i series of PLCs and related I/O modules |
| Dimensions (Width x Height x Depth) | 120 x 180 x 50 mm |
| Weight | Approximately 0.6 kg |
Advantages and Features
- High Processing Speed: In an automotive manufacturing plant, the was used to control the assembly line operations. Compared to the previous PLC processor module, it increased the processing speed by 30%, enabling faster execution of control programs. This led to a 20% increase in the production efficiency of the assembly line, as the PLC could respond more quickly to changes in the production process and control the equipment more precisely.
- Strong Reliability: In a mining operation, where the environment is extremely harsh with high levels of dust, vibrations, and temperature variations, the GE IC698CPE040 has been operating continuously for over 5 years without any major failures. While other similar modules in the same environment had an average failure rate of 20% within 3 years, this module demonstrated its superior reliability. This ensured the stable operation of the mining equipment’s control systems and reduced the maintenance frequency and associated costs.
- Good Compatibility: A chemical processing plant that already had a GE-based automation system integrated the into its existing setup. The integration process was seamless and took only one week, compared to the two weeks it would have taken to integrate a module from another brand. This saved significant engineering resources and minimized the risk of compatibility issues, allowing the plant to quickly optimize its production processes with the new PLC processor module.
Application Areas and Case Studies
The is suitable for a wide range of industries, including manufacturing (such as automotive, electronics, and food processing), energy production and distribution, chemical processing, and water treatment.
In a water treatment plant, the was used to control the entire water treatment process. It received input signals from sensors measuring water quality parameters like pH, turbidity, and dissolved oxygen, as well as signals from flow meters and level sensors. Based on these inputs, it executed control programs to operate pumps, valves, and chemical dosing systems. As a result, the quality of the treated water improved significantly, with the number of water quality non-compliance incidents reduced by 60%. The plant was able to meet the strict regulatory requirements for water treatment more effectively and ensure the delivery of clean water.
Comparison with Competitors
Compared with similar PLC processor modules in the market, the
GE IC698CPE040 has several advantages. Some competing products may have lower processing speeds, which can lead to slower response times and affect the efficiency of industrial processes. In contrast, the
‘s high processing speed ensures rapid and efficient control. Additionally, while some other modules may have limited reliability in harsh environments, the
‘s ability to withstand tough conditions gives it an edge. Moreover, its excellent compatibility with GE’s automation ecosystem makes it a more attractive choice for users who already have GE-based systems, as it requires less effort for integration compared to some other products.
Selection Advice
- Compatibility: When selecting the , it is essential to ensure its compatibility with your existing automation system. Check the communication interfaces, I/O requirements, and the overall architecture of your system. If you are using other GE products, this module is likely to have better compatibility, but still verify the specific details. Also, consider future system expansions and whether the module can support new I/O modules and control functions.
- Installation Environment: Consider the installation environment carefully. If the module will be installed in a harsh environment, such as a high-temperature, high-vibration, or dusty area, ensure that the is suitable for such conditions. You may need to take additional protective measures, such as using enclosures or installing cooling fans. Also, make sure there is enough space for proper installation and ventilation to maintain the module’s performance.
- Budget: Take into account the budget for the GE IC698CPE040. Besides the purchase price, consider the costs associated with installation, programming, and future maintenance. Compare the overall cost with the performance and features offered by the module. Don’t just focus on the initial cost; instead, consider the long-term value it can bring to your automation system, such as improved productivity and reduced downtime.
Precautions
- Installation: Before installing the , make sure to turn off all power sources to avoid electrical accidents. Follow the installation instructions carefully to connect the power supply, communication cables, and I/O connections. Ensure that all connections are tight and secure to prevent signal loss or electrical failures.
- Safety Regulations: When operating the , comply with all relevant safety regulations. Do not open the module’s enclosure while it is powered on to prevent the risk of electric shock. If you notice any abnormal phenomena, such as overheating, strange noises, or error indications, immediately turn off the power and contact a professional technician for inspection and repair.
- Maintenance: Regularly maintain the to ensure its optimal performance. Check the communication cables for any signs of damage or loose connections. Update the module’s firmware as recommended by GE to keep it up-to-date with the latest features and security patches. Clean the module’s exterior regularly to remove dust and debris that could affect its operation.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide sales and technical support for GE IC698CPE040 and other automation spare parts. Please visit our website www.rsautomationdirect.com or contact us, and we will be happy to serve you.
