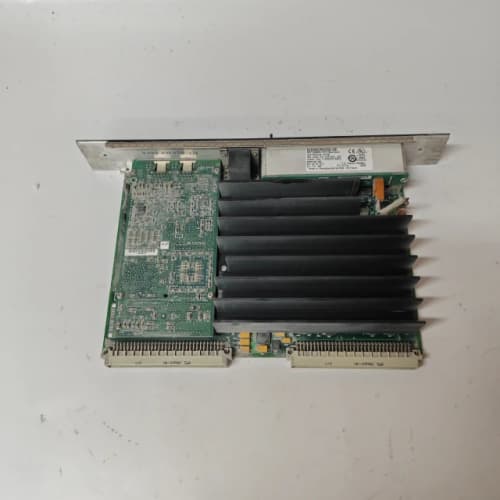

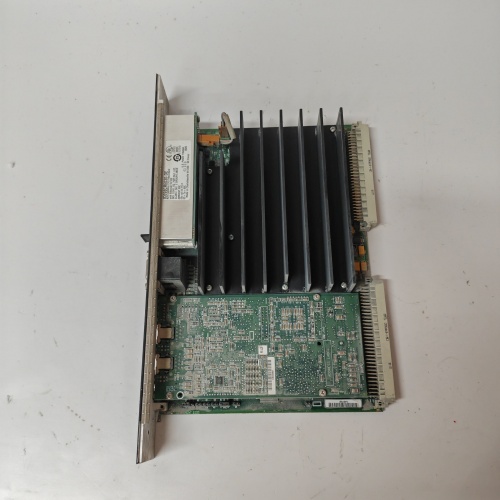

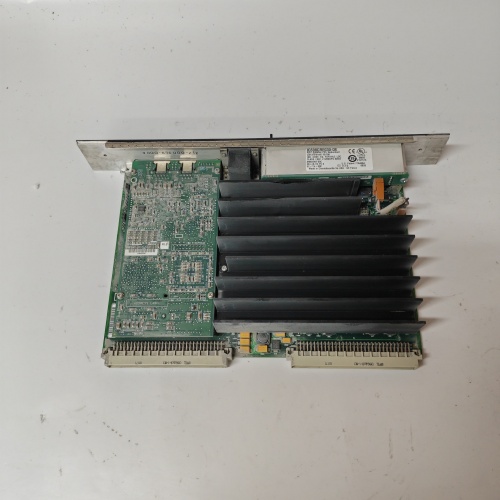

GE IC698CRE030 RX7i Central Processing Unit

Product Description

The

GE IC698CRE030 is a high-performance central processing unit (CPU) designed for the RX7i series of programmable automation controllers (PAC), originally developed by GE Intelligent Platforms (now part of Emerson Automation). As the “brain” of the RX7i control system, this module delivers exceptional processing power for demanding industrial applications. The

is built on an Intel Celeron M processor architecture, providing a significant leap in performance over older CISC-based CPUs. This module is engineered to handle complex logic, extensive data handling, and high-speed communication tasks simultaneously. For system integrators and plant engineers looking to modernize their control infrastructure, the

offers a robust, reliable, and scalable processing solution that maintains backward compatibility with the extensive GE 90-70 series I/O.

Product Parameters

Understanding the technical specifications of the is essential for proper system design and capacity planning:

Model Number:
Processor: Intel Celeron M 1.0 GHz (Ultra Low Voltage)
RAM Memory: 64 MB SDRAM (Standard configuration, battery-backed)
Flash Memory: 128 MB (for program and data storage)
Logic Execution Speed: 0.06 ms/K (Typical for Boolean logic)
Backplane Compatibility: 100 MHz VME64 (Standard and Extended)
Operating Temperature: 0 to 60 °C (32 to 140 °F)
Battery Backup: Lithium battery for RAM retention
Communication Ports: Dual Ethernet (10/100 Mbps) embedded, RS-232 Serial Port, and a dedicated programmer port.
Form Factor: Single-wide, single-slot VME module.

Advantages and Features

The GE IC698CRE030 stands out due to its blend of computing power and industrial ruggedness. Key advantages include:

High-Speed Processing: The 1.0 GHz Celeron M processor ensures rapid execution of complex control algorithms, making it suitable for high-speed applications like packaging or material handling.
Embedded Dual Ethernet: With two built-in Ethernet ports, the supports seamless network segmentation (e.g., separating control traffic from plant management traffic) without requiring an additional coprocessor module.
Extensive Memory Capacity: The 64 MB of RAM and 128 MB of Flash memory provide ample space for large application programs, extensive variable tables, and historical data logging.
Hot Swap Support: The supports online insertion and removal in compatible RX7i racks, minimizing downtime during maintenance or upgrades.
Scalability: It can control up to 512 analog I/O and 2048 discrete I/O points locally, and thousands more over remote drops via Ethernet or Genius Bus.

Application Fields

The processing power and connectivity of the make it ideal for a wide range of mid-to-large scale industrial applications:

Automotive Manufacturing: Controlling body shops, paint lines, and final assembly conveyors where high-speed coordination is required.
Discrete Parts Manufacturing: Managing high-speed assembly machines, pick-and-place robots, and sorting systems.
Infrastructure & Utilities: Used in water treatment plants and material handling systems at airports for baggage control.
Oil & Gas: Deployed in pipeline monitoring and control systems where reliability and data integrity are critical.
Retrofit Projects: Ideal for upgrading older GE 90-70 systems, as the GE IC698CRE030 can reuse existing I/O racks and modules to protect capital investment.

Comparison with Competing Products

When placed side-by-side with competitors like the Siemens S7-400 or Rockwell ControlLogix, the offers distinct value propositions:

Legacy Integration: Unlike many competing platforms that require expensive migration tools, the offers a straightforward path to upgrade legacy 90-70 systems while preserving the I/O infrastructure.
VME Architecture: Its VME64 backplane provides a more open architecture compared to proprietary Rockwell or Siemens backplanes, allowing for potential integration of third-party VME cards.
Cost-Effectiveness: In terms of raw processing power per dollar for mid-range applications, the often competes favorably against similarly specced modules from other major brands.
Programming Environment: It utilizes the familiar Machine Edition (ME) software suite, which offers a unified development environment across multiple GE hardware families, reducing the learning curve for existing users.

Selection Suggestions and Precautions

Before integrating the into your system, consider these expert recommendations:

Firmware Revision: Verify the installed firmware version of the GE IC698CRE030 against your programming software (Proficy Machine Edition). Incompatible firmware can lead to communication failures or missing functionality.
Power Supply Capacity: Ensure your RX7i power supply (e.g., IC698PSA350) has sufficient current capacity on the +5V and +3.3V rails to support the along with all other modules in the rack.
Battery Maintenance: The relies on a lithium battery to maintain RAM content when power is off. Establish a preventive maintenance schedule to replace this battery every few years to prevent program loss.
Environmental Conditions: While rugged, ensure the cabinet environment is clean and within the specified temperature range. The high-performance processor can generate heat; proper airflow around the is required for long-term reliability.
Authenticity: Given the critical nature of this component, purchase the GE IC698CRE030 from authorized channels to guarantee genuine, fully tested hardware and access to manufacturer support.
