GE IC754CSL12CTD

Description

Product Overview: GE IC754CSL12CTD

First, let’s examine the

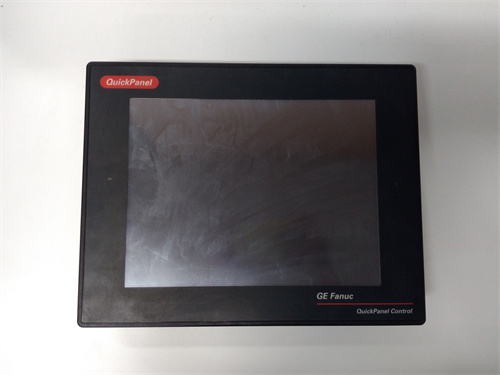

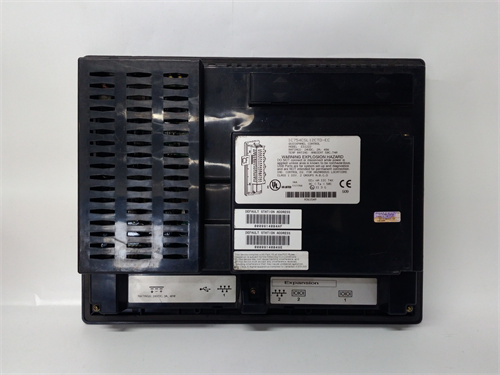

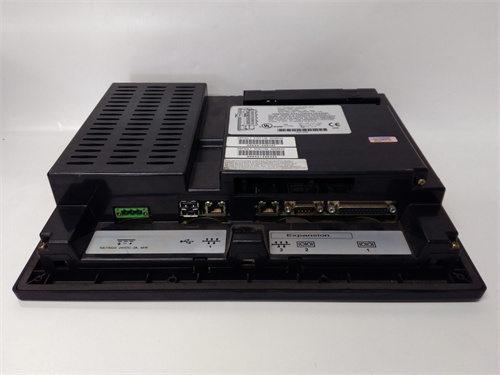

GE IC754CSL12CTD—an industrial human-machine interface (HMI) terminal belonging to the

GE Proficy Machine Edition HMI series, designed for real-time monitoring and operation of medium-sized automated systems: manufacturing assembly lines, material handling conveyors, and process control equipment (e.g., temperature/pressure regulation in chemical mixing tanks). This device features a 12.1-inch color touchscreen with a resolution of 800×600 pixels, enabling operators to visualize system status, adjust parameters, and troubleshoot alarms intuitively. Critically, the

 supports seamless communication with GE PLCs (such as the

GE IC693CPU363 from the Series 90-30 lineup) and third-party controllers via industrial protocols like Modbus TCP and EtherNet/IP, ensuring unified data integration across the entire automation ecosystem.

The

 is fully compatible with core components of GE’s automation portfolio, including the

GE IC693CHS391 backplane,

GE IC693MDL240 digital input modules, and

GE Proficy Machine Edition configuration software. For example, in an automotive component assembly line, the

 is connected to two

GE IC693CPU363 controllers: one managing robotic arm positioning and the other overseeing conveyor speed. The HMI displays real-time data—such as robotic joint angles (accurate to ±0.1°) and conveyor throughput (up to 50 parts per minute)—allowing operators to detect misalignments instantly. If a robotic arm deviates from its target position, the

 triggers a visual alarm (red flashing indicator) and locks the affected station, preventing defective parts from entering the next phase.

In a food and beverage processing plant (e.g., juice bottling), the

 monitors and controls three key processes: mixing tank temperature (regulated via a

GE IC693MDL742 analog output module), bottle filling volume, and labeling machine speed. Operators use the HMI’s touchscreen to adjust the mixing temperature (from 25°C to 40°C) or set filling targets (500ml ±2ml), with changes transmitted to the PLC in <100ms—fast enough to avoid overheating the juice or underfilling bottles. The

GE IC754CSL12CTD also stores up to 30 days of historical data (e.g., daily throughput, alarm logs), enabling managers to analyze production efficiency and identify bottlenecks (e.g., frequent labeling machine jams).

Full details about the , including installation guides, protocol configuration tutorials, and troubleshooting checklists, are available at the product link: [Link to ] (to be inserted once the final link is provided).

Technical Parameters of GE IC754CSL12CTD

The technical specifications of the  comply with industrial standards (IEC 61131-3, UL 508) and electromagnetic compatibility (EMC) requirements (EN 61000-6-2), ensuring reliability in harsh factory environments:

Advantages and Features of GE IC754CSL12CTD

1. Intuitive Visualization and Operation The 12.1-inch high-brightness touchscreen of the

    ensures clear visibility even in bright factory lighting (350 cd/m²), while the resistive touch technology works reliably with gloves—critical for food processing or automotive environments where operators wear protective gear. Customizable dashboards (via

   GE Proficy Machine Edition) let users prioritize key data (e.g., alarm counts, throughput) for quick decision-making.

2. Seamless Integration with GE Ecosystem Unlike generic HMIs, the

    natively supports GE’s SRTP protocol, eliminating the need for additional gateways when connecting to Series 90-30/70 PLCs. This integration reduces data latency to <100ms and ensures consistent parameter synchronization—for example, adjusting a conveyor’s speed via the HMI updates the

   GE IC693CPU363 controller instantly, avoiding production delays.

3. Rugged Design for Industrial Environments With an IP65-rated front panel, the GE IC754CSL12CTD resists dust and water splashes, making it suitable for wet environments (e.g., beverage bottling plants). The device also withstands temperature fluctuations (0°C – 50°C) and vibration, ensuring uninterrupted operation in facilities with heavy machinery (e.g., metal stamping lines).

4. Data Logging and Alarm Management The  stores up to 30 days of historical data (configurable via software) and categorizes alarms by severity (critical, warning, informational). Operators can view alarm timestamps and root causes (e.g., “Conveyor 2 overcurrent”) directly on the touchscreen, reducing troubleshooting time by up to 40% compared to text-only HMIs.

Application Cases of GE IC754CSL12CTD

1. Automotive Component Assembly Line A tier-1 automotive supplier uses the

    to monitor 4 robotic arms (for welding door hinges) and 2 conveyors. The HMI displays real-time robotic joint temperatures (to prevent overheating) and conveyor part counts. If a hinge is misaligned, the

    triggers a critical alarm, pauses the robot, and shows a step-by-step guide to reposition the part—reducing defect rates from 2% to 0.5%.

2. Food & Beverage Juice Bottling Plant In a citrus juice bottling facility, the

    controls mixing tank temperature (via a

   GE IC693MDL742 module) and filling volume. Operators use the touchscreen to set the mixing temperature to 35°C (optimal for juice extraction) and adjust filling nozzles to 500ml. The HMI logs daily production (e.g., 10,000 bottles/day) and alerts managers if filling accuracy drops below 99.8%—ensuring compliance with food safety standards.

3. Chemical Mixing Process Control A chemical plant uses the

   GE IC754CSL12CTD to monitor 3 mixing tanks (for detergent production) where temperature (20°C – 60°C) and pH levels (6.5 – 7.5) are critical. The HMI displays real-time pH readings (from

   GE IC693MDL753 analog input modules) and allows operators to adjust chemical dosages remotely. If pH exceeds 7.5, the

    automatically reduces the alkaline additive flow, preventing batch rejection.

Comparison with Competitors

We compare the  with industrial HMIs of similar class (Siemens KTP1200 Basic, Allen-Bradley PanelView Plus 7 1250):

Conclusion: The  outperforms competitors in GE ecosystem integration (native SRTP support) and data latency, making it the optimal choice for users already deploying GE PLCs (e.g., Series 90-30). Its 30-day historical data storage also surpasses Siemens’ standard offering, aiding long-term production analysis.

Selection Recommendations and Precautions

• Selection Recommendations: Choose the  if:

  1. You operate GE PLCs (Series 90-30/70, VersaMax) and need seamless HMI-PLC integration without additional hardware/software.
  2. Your application requires a rugged, glove-compatible touchscreen (IP65 front, resistive touch) for harsh environments (food processing, automotive assembly).
  3. You need long-term data logging (up to 30 days) to track production trends or comply with regulatory requirements (e.g., food safety audits).

• Precautions:

  1. Use only a 24V DC power supply (±10%)—connecting to higher voltages (e.g., 110V AC) will damage the .
  2. Ensure the front panel is mounted correctly to maintain IP65 protection—gaps between the HMI and panel will allow dust/water ingress.
  3. Update the GE IC754CSL12CTD firmware via GE Proficy Machine Edition quarterly—firmware updates fix protocol bugs and improve compatibility with new PLC models.
  4. Avoid mounting the HMI near high-voltage equipment (e.g., transformers) or sources of vibration (e.g., large motors)—electromagnetic interference (EMI) or vibration can cause screen flickering or data loss.
