GE IS220PAICH1A

Description

GE IS220PAICH1A Analog Input/Output Module Product Overview

Product Description

The

GE IS220PAICH1A is a precision analog input/output module designed and manufactured by General Electric (GE) as part of their Mark VIe distributed control system (DCS) and Safety Instrumented System (SIS) platforms for industrial gas and steam turbine control applications. This module, identified as

, serves as a versatile analog interface for processing both analog input signals from field sensors and generating analog output signals for actuator control within turbine management systems. As a key component within GE’s Speedtronic™ turbine control product line, the

combines multiple analog functions in a single module, providing efficient signal conditioning and conversion for essential turbine parameters including temperature, pressure, speed, and position. For comprehensive technical specifications and purchasing information, please visit the product link for

Product Parameters

Product Type: Analog Input/Output Combination Module
Part Number:
Compatible Systems: GE Mark VIe, Mark VIeS, and related turbine control systems
Analog Inputs: Multiple configurable analog input channels
Analog Outputs: Multiple configurable analog output channels
Input Signal Types: 4-20 mA, 0-10 V DC, thermocouple, RTD (channel-configurable)
Output Signal Types: 4-20 mA, 0-10 V DC, ±10 V DC (channel-configurable)
Input Resolution: 16-bit typical
Output Resolution: 14-bit typical
Accuracy: ±0.1% of full scale typical
Input Impedance: >10 MOhms (voltage mode), 250 Ohms (current mode with external resistor)
Isolation: Channel-to-channel and channel-to-backplane isolation
Diagnostics: Built-in self-test, channel health monitoring, open circuit detection
Communication: Proprietary backplane interface to turbine control module

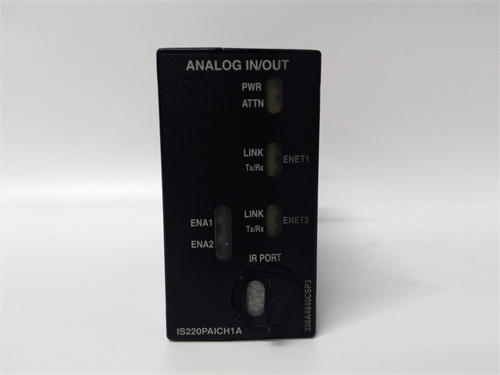

Indicators: Front-panel status LEDs for module health and channel status
Power Supply: +5 V DC and ±15 V DC from backplane (typical)
Power Consumption: <8 W typical
Mounting: Plugs into Mark VIe I/O rack
Operating Temperature: -30°C to +65°C
Storage Temperature: -40°C to +85°C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Designed for turbine-generator environment per GE specifications
Certifications: CE, UL, CSA, suitable for safety-related applications up to SIL 2/3

Advantages and Features

Integrated Analog I/O: The combines both analog input and output capabilities in a single module, reducing rack space requirements and simplifying system architecture compared to using separate analog input and output modules.
Configurable Channels: Each channel on the can be independently configured for different signal types and ranges, providing exceptional flexibility for interfacing with diverse field devices.
High Precision: With 16-bit input resolution and 14-bit output resolution, the delivers the accuracy required for precise turbine control applications including speed regulation, temperature monitoring, and valve positioning.
Comprehensive Diagnostics: Continuous monitoring of channel health, open circuit detection, and self-test capabilities enable early detection of developing problems. The GE IS220PAICH1A reports faults to the turbine control system for immediate operator awareness.
Galvanic Isolation: Complete channel-to-channel and channel-to-system isolation protects the and the connected control system from ground loops and electrical transients, ensuring measurement integrity in electrically noisy turbine environments.
Wide Environmental Tolerance: Designed for the demanding environment adjacent to turbine-generator equipment, the withstands significant temperature variations, vibration, and electrical noise.
Seamless System Integration: As a native GE component, the integrates flawlessly with Mark VIe control platforms, utilizing standard configuration tools (ToolboxST) and providing unified diagnostics through the turbine control HMI.

Application Cases in Application Fields

Gas Turbine Monitoring: In GE gas turbines, the processes analog inputs from pressure transmitters, thermocouples, and speed probes while generating analog outputs for fuel control valves and inlet guide vanes.
Steam Turbine Control: Steam turbine applications utilize the to monitor main steam pressure and temperature, extraction pressures, and bearing metal temperatures while controlling governor valves and extraction valves.
Compressor Control: Mechanical drive compressors employ the for suction and discharge pressure monitoring, temperature monitoring, and antisurge valve positioning.
Generator Monitoring: Power generation applications use the to monitor generator electrical parameters, stator temperatures, bearing temperatures, and hydrogen cooling system pressures.
Balance of Plant Integration: The interfaces with auxiliary systems including lube oil consoles, cooling water systems, and inlet filtration, monitoring analog parameters and providing control signals as required.
Exhaust Temperature Monitoring: Gas turbine exhaust thermocouple arrays connect to the GE IS220PAICH1A for combustion monitoring and protection against exhaust over-temperature conditions.

Comparisons with Competing Products

When compared to analog I/O modules from other turbine control vendors:

Application Specialization: Unlike general-purpose analog modules, the is specifically optimized for the unique requirements of turbine control, including fast response times for surge protection and specialized input types for turbine sensors.
System Integration Depth: The offers integration with GE’s ToolboxST software that third-party modules cannot match, providing seamless configuration, calibration, and diagnostic data collection.
Proven Legacy: For facilities with existing GE turbine installations, the represents the only guaranteed-compatible replacement option, protecting the substantial investment in GE control technology.
Safety Compliance: When used in Mark VIeS configurations, the supports safety instrumented functions up to SIL 2/3, a critical requirement for turbine protection that many competing products cannot meet.
Channel Flexibility: The per-channel configurability of the exceeds many competing modules that offer fixed channel types, reducing the number of different module types required in inventory.

Selection Suggestions and Precautions

Channel Configuration Planning: Document all analog input and output requirements for your application, including signal types and ranges, to ensure proper configuration of the channels.
System Compatibility Verification: Confirm that the is compatible with your specific Mark VIe controller model, firmware revision, and I/O rack type. Consult GE documentation or technical support for guidance.
Signal Type Verification: Ensure that the signal types (4-20 mA, voltage, thermocouple, RTD) required by your field devices match the capabilities of the GE IS220PAICH1A channels.
Thermocouple Considerations: For thermocouple inputs, ensure proper cold junction compensation and use appropriate thermocouple extension wire matched to the sensor type.
Wiring and Termination: The typically connects through specific termination panels. Verify that you have the correct mating hardware for your installation, including proper shielding for analog signals.
Environmental Assessment: While designed for turbine environments, verify that installation location temperature, vibration, and contamination levels remain within specified limits for the .
Configuration Backup: Before replacing an existing , ensure you have complete configuration documentation or backup files to facilitate setup of the replacement module.
Firmware Compatibility: When ordering a replacement , specify the required firmware version to ensure compatibility with your existing system configuration.
Calibration Verification: For critical measurements, periodically verify calibration of the against known references, especially in applications where accuracy directly affects turbine protection.
Genuine Parts Assurance: To ensure reliable turbine operation and avoid potentially catastrophic failures, procure the only from authorized GE distributors or through the provided link , avoiding counterfeit or refurbished units of uncertain quality and calibration.
Professional Installation: Given the critical nature of turbine control applications, installation, configuration, and commissioning of the GE IS220PAICH1A should be performed by qualified personnel familiar with GE turbine control systems and safety requirements.
