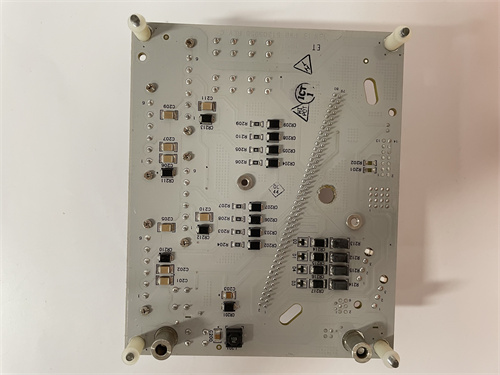

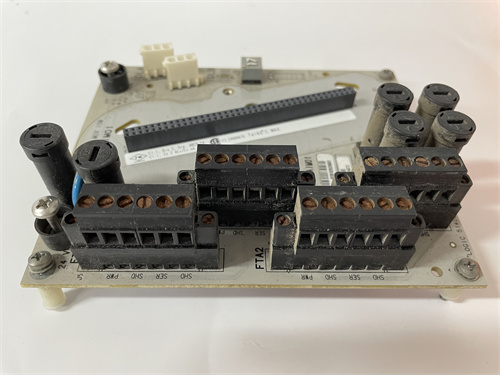

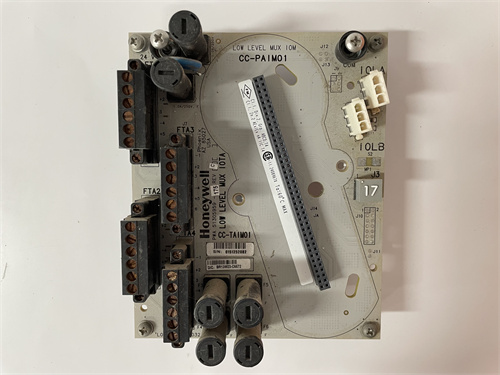

HONEYWELL CC-TAIM01

Description

Product Description

The

HONEYWELL CC-TAIM01 is a high-performance analog input module from the Honeywell ControlEdge and legacy Experion Process Knowledge System (PKS) C Series I/O family. This module is designed to interface with low-level voltage and current signals from field transmitters, providing precise and reliable data acquisition for critical process monitoring and control. As a fundamental component of Honeywell’s distributed control architecture, the

CC-TAIM01 Analog Input Module conditions, isolates, and digitizes signals from devices such as pressure, flow, level, and temperature transmitters. Integrating the

Honeywell  into a control node ensures accurate process measurement, which is the foundation for effective regulatory control and safety system functions. For technical data, visit the official resource:

HONEYWELL CC-TAIM01.

Product Parameters and Specifications

• Product Type: Analog Input Module (AI).

• Compatible Systems: Honeywell ControlEdge PLC, Experion PKS C Series I/O.

• Input Channels: 8 single-ended or 4 differential channels (configurable per channel).

• Input Signal Types: Configurable for various DC voltage and current ranges, typically including:

  • 0-5V DC, 1-5V DC

  • 0-10V DC

  • 0-20 mA, 4-20 mA (with internal/external 250-ohm resistor)

• Resolution: High-resolution analog-to-digital conversion (typically 16-bit) for precise measurement.

• Accuracy: High accuracy specification (e.g., ±0.1% of full scale) suitable for demanding process applications.

• Isolation: Channel-to-channel and channel-to-system isolation to prevent ground loops and noise interference.

• Diagnostics: Comprehensive onboard diagnostics for detection of field wiring faults such as open circuit, short circuit, and out-of-range signals.

• Communication: Connects to the controller via the C Series I/O bus (FTE or legacy I/O link).

Advantages and Features

1. High-Density and Flexibility: The HONEYWELL CC-TAIM01 provides eight configurable input channels in a single module, optimizing rack space and allowing a mix of signal types (voltage or current) across its channels based on application needs.

2. Superior Signal Integrity and Noise Immunity: Advanced signal conditioning and high-grade isolation ensure accurate measurement in electrically noisy industrial environments, protecting the integrity of critical process variables.

3. Comprehensive Diagnostic Capabilities: Built-in diagnostics continuously monitor field wiring and transmitter health, providing early warning of sensor failures or wiring issues before they lead to process upsets or inaccurate control.

4. Seamless System Integration: As a native Honeywell C Series module, the CC-TAIM01 offers plug-and-play compatibility with ControlEdge and Experion controllers. It is easily configured and managed within the unified ControlEdge/Experion engineering environment.

5. Hot-Swappable Design: The module can be inserted or removed from a powered and operational I/O chassis without requiring a system shutdown, significantly enhancing system availability and ease of maintenance.

Application Cases in Various Fields

• Oil & Gas Refining: Connects to pressure transmitters on distillation columns, flow transmitters on crude lines, and level transmitters in separator vessels for continuous process control.

• Chemical Processing: Interfaces with pH analyzers, conductivity meters, and temperature transmitters (via signal conditioners) in batch reactor control systems.

• Pharmaceutical Manufacturing: Acquires precise weight signals from load cells on reactors and pressure signals in filtration systems for recipe-controlled batch processes.

• Power Generation: Monitors critical analog signals such as feedwater flow, steam pressure, and generator bearing temperatures in boiler and turbine control systems.

Comparison with Competing Products

• vs. Universal Analog Input Modules: Some modules claim universal acceptance but may compromise on channel count or isolation. The CC-TAIM01 is optimized for process control with dedicated diagnostics and proven performance in Honeywell’s high-availability architecture.

• vs. Basic PLC Analog Cards: Standard PLC cards often have lower channel density, less sophisticated signal filtering, and limited diagnostic capabilities compared to the purpose-built Honeywell , which is designed for mission-critical DCS-level applications.

• vs. Older Honeywell AI Modules (e.g., from TPS/PMIO): The C Series CC-TAIM01 represents a modern design with improved diagnostics, higher accuracy, and support for the advanced ControlEdge platform, offering a clear migration path from legacy systems.

Selection Suggestions and Precautions

1. Verify System Compatibility: Ensure the module is used in a compatible Honeywell ControlEdge or Experion C Series I/O chassis. The controller firmware and I/O driver must support the C Series module type.

2. Correct Signal Configuration: Each channel must be correctly configured in the engineering software (ControlEdge/Experion Builder) for the specific signal type (e.g., 4-20 mA, 1-5V) and engineering units. Misconfiguration will result in erroneous readings.

3. Proper Field Wiring Practices: Use shielded, twisted-pair cables for analog signals. Terminate cable shields correctly at the system ground point (typically at the marshalling cabinet or I/O chassis) to minimize noise ingress.

4. Utilize Field Diagnostics: Actively enable and monitor the module’s diagnostic alarms (e.g., transmitter burnout, open circuit) in the control system’s alarm management strategy to proactively address field device issues.

5. Consider Intrinsic Safety (IS) Requirements: For use in hazardous areas, the CC-TAIM01 must be interfaced with approved intrinsic safety barriers or isolators. The module itself is not intrinsically safe.
