Product Description
The IC698CRE030 is a PACSystems RX7i Central Processing Unit. The RX7i CPU is programmed and configured by programming software to perform control of machines, processes, and systems in real time. It is able to communicate with I/O and smart option modules over a rack -mounted backplane using the VME64 Standard format. An embedded Ethernet port or serial port enables the CPU to communicate with the programmer and HMI devices. This particular model utilizes a 600MHz Pentium-M microprocessor (64 MB both user memory and flash). Highlights of this unit include HSB or hot standby redundancy, battery-backed user memory and non-volatile flash memory allowing for program, configuration, register data, and symbolic variable storage. It is bulk memory accessible via reference table %W. It features programming in Ladder Diagram, C, Structured Text, and Function Block Diagram. Auto-located Symbolic Variables conveniently use unlimited memory. A number of modules are supported, including 90-70 Series discrete and analog I/O as well as VME modules. Please see the installation module for a list of other supported modules. The IC698CRE030 CPU allows both data monitoring across the web and a maximum of 16 web server/FTP connections. Block size may not exceed 128KB, but 512 program blocks are supported. Furthermore, the unit is equipped with word referencing, a battery-backed calendar clock, serial port enabled firmware upgrades, and three isolated serial ports. EGD data exchange, TCP/IP communication services, station management, diagnostic tools, and time synchronization to the timeserver are all made possible by an embedded Ethernet interface. Additionally, a redundant IP (configurable by the user) facilitates EGD exchange production. Power requirements for the IC698CRE030 are as follows: +5 VDC: 3.2 Amps nominal, +12 VDC: 0.003 Amps nominal, and -12 VDC: 0.003 Amps nominal.

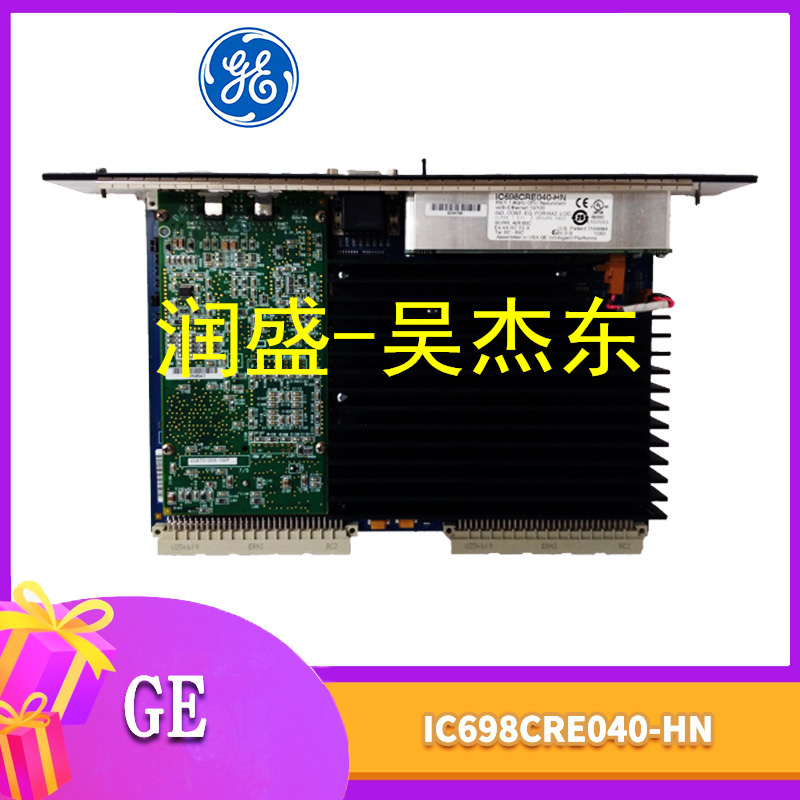

IC698CRE040-HN
