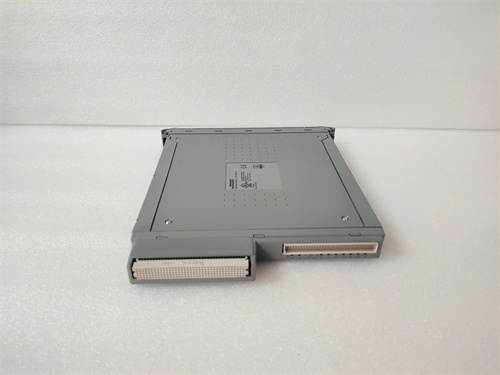

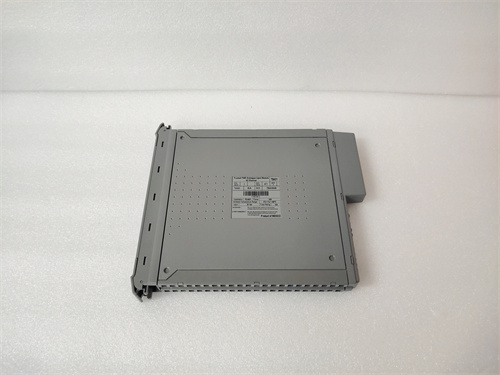

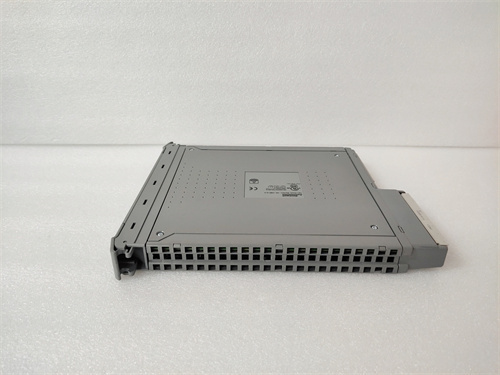

ICS TRIPLEX T8431

Description

ICS TRIPLEX T8431 — SIL 3 Safety Controller for Critical Industrial Process Protection

Product Overview

The ICS TRIPLEX

T8431 is a high-performance safety controller designed to deliver uncompromising reliability and functional safety for critical industrial processes, certified up to SIL 3 per IEC 61508 and IEC 61511 standards. Engineered by (a leader in industrial safety automation), the

 features a fault-tolerant triple-modular redundant (TMR) architecture that eliminates single points of failure, making it ideal for safety-instrumented systems (SIS) in oil and gas, chemical, power generation, and pharmaceutical industries. This controller seamlessly integrates with ICS TRIPLEX’s I/O modules and third-party devices, providing flexible and scalable control for safety-critical applications such as emergency shutdown (ESD), fire and gas detection, and process interlocks. With its advanced processing capabilities, robust communication options, and industrial-grade durability, the

 ensures continuous operation even in harsh environments—protecting personnel, equipment, and the environment from potential hazards. Whether deployed in new installations or upgrading legacy safety systems, the

 sets the benchmark for safety controller performance, combining compliance, reliability, and ease of use to meet the most demanding industrial safety requirements.

Technical Specifications

• Brand:
• Model: T8431
• Product Type: Fault-Tolerant Safety Controller (SIS)
• Architecture: Triple-Modular Redundant (TMR) with 2-out-of-3 voting
• Functional Safety Rating: (IEC 61508), SIL 3 (IEC 61511), AK 6 (DIN V 19250)
• Operating Voltage: 24 VDC (±15%)
• Operating Temperature Range: -20°C to +70°C (-4°F to 158°F)
• Relative Humidity: 5% to 95% (non-condensing)
• Processing Power:
  • CPU: 32-bit multi-core microprocessor (TriCore)
  • Clock Speed: 800 MHz
  • Memory: 2 GB DDR4 RAM (ECC, error-correcting), 8 GB Flash storage
• Communication Interfaces:
  • Ethernet: 4 x 1 GbE ports (Modbus TCP, OPC UA, MQTT, TCP/IP)
  • Serial: 2 x RS-485 ports (Modbus RTU, ASCII)
  • Fieldbus: Profibus DP/PA, HART, Foundation Fieldbus (integrated)
  • Safety Bus: ICS TRIPLEX TMR Bus (for redundant I/O integration)
• I/O Capacity:
  • Maximum I/O Modules: 64 (distributed across multiple racks)
  • Supported I/O Types: Analog (AI/AO), Discrete (DI/DO), Specialty (HART, Foundation Fieldbus)
• Fault Detection:
  • Continuous Self-Diagnosis (CPU, memory, communication, power)
  • Module Fault Monitoring
  • Communication Link Diagnostics
  • Voter Circuit Monitoring
• Protection Rating: IP20 (cabinet mounting)
• Mounting Type: DIN rail mounting (35mm standard) or rack mounting
• Weight: Approximately 3.2kg (7.05lbs)
• Warranty Period: 3 years

Core Advantages

1. TMR Fault Tolerance: The ’s triple-modular redundant architecture with 2-out-of-3 voting eliminates single points of failure, ensuring system availability even if one module fails—critical for safety-critical applications requiring uninterrupted operation.
2. Compliance: Fully certified to SIL 3 standards, the  meets global safety regulations, providing peace of mind for industries operating in high-risk environments. Continuous self-diagnosis minimizes the risk of undetected faults, ensuring safe system behavior.
3. High Processing & I/O Capacity: With a powerful multi-core CPU and support for up to 64 I/O modules, the  handles complex safety logic and large-scale I/O configurations, making it suitable for both small and large industrial facilities.
4. Flexible Communication: Equipped with 4 GbE ports and support for modern protocols (OPC UA, MQTT) and legacy fieldbuses, the T8431 integrates seamlessly with DCS, MES, and cloud platforms—enabling data exchange for process monitoring and analytics.
5. Industrial-Grade Durability: Designed to withstand extreme temperatures (-20°C to +70°C), electromagnetic interference (EMC Class 4), and mechanical vibrations, the  delivers reliable performance in harsh industrial conditions.
6. Easy Configuration & Maintenance: Compatible with ICS TRIPLEX Control Station software (IEC 61131-3 compliant), the  supports graphical programming (Function Block Diagram, Ladder Logic) and remote monitoring—simplifying commissioning, troubleshooting, and updates.

Application Scenarios

• Oil & Gas Industry: Used for emergency shutdown (ESD) systems, fire and gas detection, pipeline protection, and refinery process interlocks—preventing explosions, leaks, and other hazardous events.
• Chemical Industry: Deployed in reactor safety systems, batch process control, and hazardous material handling—ensuring compliance with safety regulations and preventing chemical spills or reactions.
• Power Generation: Integrated into boiler protection systems, turbine control, and nuclear plant safety systems—monitoring critical parameters and initiating safe shutdowns during anomalies.
• Pharmaceutical Industry: Applied in GMP-compliant manufacturing processes to control sterilization, material handling, and waste management—ensuring product quality and process safety.
• Food & Beverage Industry: Used in pasteurization safety systems, pressure vessel monitoring, and conveyor interlocks—preventing process failures and ensuring food safety compliance.

Competitor Comparison

The T8431 outperforms competitors in architecture (TMR fault tolerance), operating temperature range, I/O capacity, and processing power—making it the superior choice for safety-critical applications. Its comprehensive protocol support and seamless integration capabilities also ensure compatibility with existing industrial systems, while SIL 3 certification and robust fault detection mechanisms provide unmatched safety assurance.

Selection & Usage Recommendations

1. Safety Requirement Alignment: Confirm the ’s rating meets your application’s safety integrity level (e.g., ESD systems, fire and gas detection) and compliance with industry standards (IEC 61511, DIN V 19250).
2. System Compatibility Check: Verify compatibility with existing I/O modules (ICS TRIPLEX or third-party) and communication protocols (e.g., OPC UA for cloud integration, Profibus for field devices) to ensure seamless integration.
3. Installation Guidelines: Mount the  in a well-ventilated cabinet away from heat sources and high-voltage equipment. Use shielded cables for communication and power wiring to minimize electromagnetic interference.
4. Configuration Best Practices: Use Control Station software (IEC 61131-3 compliant) to program safety logic, and leverage remote monitoring capabilities for real-time fault detection. Ensure redundant power supplies are installed to maximize availability.
5. Maintenance Schedule: Perform periodic firmware updates via the manufacturer’s official portal to address security vulnerabilities and add new features. Conduct annual calibration and functional testing to maintain SIL 3 compliance.
6. Troubleshooting: Utilize the ’s built-in diagnostics and status LEDs to identify faults quickly. For complex issues, contact ICS TRIPLEX’s authorized service team—avoid unauthorized modifications to hardware or software, as this may void safety certifications.
