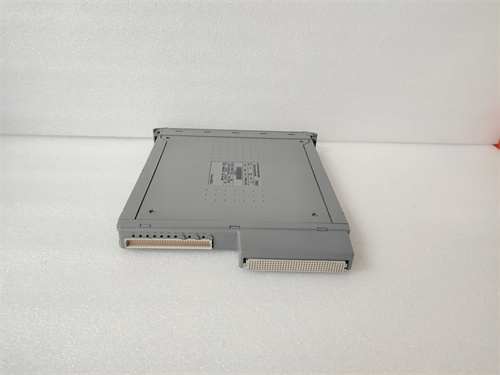

ICS TRIPLEX T8431C

Description

ICS TRIPLEX T8431C — Enhanced SIL 3 Safety Controller for Mission-Critical Industrial Protection

Product Overview

The ICS TRIPLEX

T8431C is an advanced, fault-tolerant safety controller designed to set new standards for reliability and performance in Safety Instrumented Systems (SIS) up to SIL 3. Building on the legacy of the trusted T8431 series, the

 incorporates enhanced processing power, expanded communication capabilities, and ruggedized design features to address the most demanding safety requirements in oil and gas, chemical, power generation, and pharmaceutical industries. Engineered with a triple-modular redundant (TMR) architecture and 2-out-of-3 voting logic, the

 eliminates single points of failure, ensuring uninterrupted operation even in harsh industrial environments. This controller seamlessly integrates with ICS TRIPLEX’s full range of I/O modules and third-party devices, supporting scalable configurations from small-scale process interlocks to large-scale emergency shutdown (ESD) systems. With its SIL 3 certification (per IEC 61508/IEC 61511), advanced diagnostics, and compatibility with Industry 4.0 protocols, the

T8431C delivers unparalleled safety assurance, operational efficiency, and future-proofing—making it the ideal choice for new installations or upgrading legacy safety systems that demand uncompromising performance.

Technical Specifications

• Brand:
• Model:
• Product Type: Enhanced Fault-Tolerant Safety Controller (SIS)
• Architecture: Triple-Modular Redundant (TMR) with 2-out-of-3 voting and redundant power inputs
• Functional Safety Rating: (IEC 61508), SIL 3 (IEC 61511), AK 6 (DIN V 19250), Class 1 Div 2 (for hazardous areas)
• Operating Voltage: 24 VDC (±15%) / 125 VDC (optional dual-voltage support)
• Operating Temperature Range: -40°C to +75°C (-40°F to 167°F)
• Relative Humidity: 5% to 95% (non-condensing)
• Processing Power:
  • CPU: 32-bit multi-core microprocessor (TriCore 1.2 GHz)
  • Clock Speed: 1.2 GHz (50% faster than predecessor)
  • Memory: 4 GB DDR4 RAM (ECC, error-correcting), 16 GB Flash storage
• Communication Interfaces:
  • Ethernet: 6 x 1 GbE ports (Modbus TCP, OPC UA, MQTT, TCP/IP, UDP/IP)
  • Serial: 4 x RS-485 ports (Modbus RTU, ASCII, HART)
  • Fieldbus: Profibus DP/PA, Foundation Fieldbus, Modbus Plus (integrated)
  • Safety Bus: ICS TRIPLEX TMR Bus (for redundant I/O integration)
  • Optional: 5G/Wi-Fi module for remote monitoring (Industry 4.0 ready)
• I/O Capacity:
  • Maximum I/O Modules: 96 (distributed across multiple racks)
  • Supported I/O Types: Analog (AI/AO), Discrete (DI/DO), Specialty (HART, Foundation Fieldbus, WirelessHART)
• Fault Detection:
  • Continuous Self-Diagnosis (CPU, memory, communication, power, voting circuits)
  • Real-Time Module Fault Monitoring
  • Communication Link Diagnostics with auto-recovery
  • Predictive Maintenance Alerts (for component wear)
• Protection Rating: IP20 (cabinet mounting) / IP65 (optional ruggedized enclosure)
• Mounting Type: DIN rail mounting (35mm standard) or rack mounting
• Weight: Approximately 3.5kg (7.72lbs)
• Warranty Period: 4 years (extended from 3 years)

Core Advantages

1. Enhanced Processing Performance: The ’s 1.2 GHz multi-core CPU delivers 50% faster processing speed than its predecessor, enabling complex safety logic execution, high-speed I/O sampling, and real-time data analytics—critical for time-sensitive safety applications.
2. Extended Environmental Ruggedness: With an operating temperature range of -40°C to +75°C and Class 1 Div 2 certification, the  performs reliably in extreme cold, heat, and hazardous areas, expanding its applicability to offshore platforms, arctic facilities, and chemical plants.
3. Expanded Communication & Connectivity: 6 GbE ports, support for 5G/Wi-Fi (optional), and Industry 4.0 protocols (OPC UA, MQTT) enable seamless integration with DCS, MES, cloud platforms, and remote monitoring systems—facilitating data-driven decision-making and predictive maintenance.
4. Scalable I/O Capacity: Supporting up to 96 I/O modules, the T8431C adapts to small, medium, and large-scale SIS configurations, eliminating the need for multiple controllers and reducing system complexity and cost.
5. Advanced Fault Tolerance & Diagnostics: TMR architecture combined with continuous self-diagnosis and predictive maintenance alerts minimizes unplanned downtime, while auto-recovery features ensure system resilience in the event of transient faults.
6. Long-Term Reliability & Warranty: Industrial-grade components, redundant power inputs, and a 4-year warranty (industry-leading for safety controllers) provide peace of mind and lower total cost of ownership (TCO).

Application Scenarios

• Oil & Gas Industry: Deployed in offshore platforms, refineries, and pipelines for emergency shutdown (ESD) systems, fire and gas detection, and wellhead control—protecting against leaks, explosions, and equipment failure in harsh marine and onshore environments.
• Chemical Industry: Used in reactor safety systems, batch process control, and hazardous material storage facilities—ensuring compliance with safety regulations and preventing chemical reactions or spills.
• Power Generation: Integrated into thermal, nuclear, and renewable energy plants for boiler protection, turbine control, and grid stability monitoring—initiating safe shutdowns during anomalies to prevent catastrophic damage.
• Pharmaceutical Industry: Applied in GMP-compliant manufacturing processes to control sterilization, material handling, and waste management—ensuring product quality and process safety in regulated environments.
• Mining & Metals Industry: Used in mineral processing plants for conveyor safety interlocks, pump control, and pressure vessel monitoring—withstanding extreme temperatures and dust in rugged mining environments.

Competitor Comparison

The ICS TRIPLEX  outperforms competitors in processing speed, environmental ruggedness, I/O scalability, and communication flexibility. Its TMR architecture, Class 1 Div 2 certification, and Industry 4.0 readiness make it the most versatile and reliable safety controller for mission-critical applications, while the 4-year warranty and predictive maintenance features lower TCO and enhance operational efficiency.

Selection & Usage Recommendations

1. Safety & Compliance Alignment: Confirm the ’s SIL 3 and Class 1 Div 2 ratings meet your application’s safety requirements (e.g., hazardous areas, extreme temperatures) and industry standards (IEC 61511, DIN V 19250).
2. System Scalability Planning: Evaluate your current and future I/O needs—with support for up to 96 modules, the T8431C can scale to accommodate growing SIS configurations without replacing the controller.
3. Installation Best Practices: Mount the  in a well-ventilated cabinet (or use the optional IP65 enclosure for harsh environments) away from heat sources and high-voltage equipment. Use shielded, redundant wiring for power and communication to minimize electromagnetic interference.
4. Configuration & Integration: Utilize ICS TRIPLEX Control Station software (IEC 61131-3 compliant) to program safety logic, and leverage OPC UA/MQTT for integration with cloud platforms (e.g., AWS, Azure) for remote monitoring and analytics.
5. Maintenance & Updates: Enable predictive maintenance alerts to proactively address component wear, and perform regular firmware updates via the manufacturer’s secure portal to access new features and security patches. Annual functional testing is recommended to maintain SIL 3 compliance.
6. Troubleshooting: Use the ’s built-in diagnostics, status LEDs, and remote monitoring tools to quickly identify and resolve faults. For complex issues, contact ICS TRIPLEX’s authorized service team—avoid unauthorized modifications to hardware or software, as this may void safety certifications.
