Description

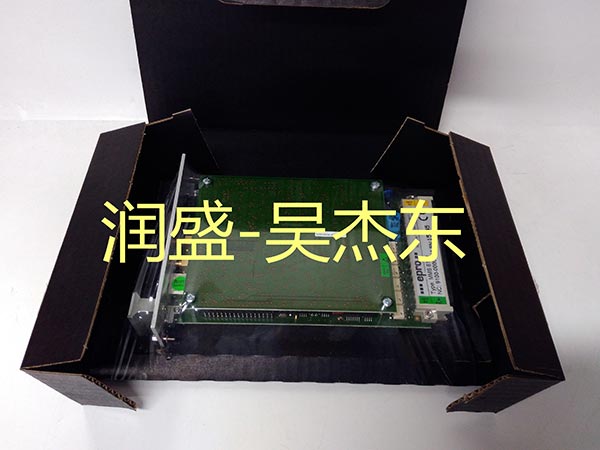

The MMS6110 is a dual-channel shaft vibration measurement module. signal input MMS6110 has two independent eddy current sensor signal inputs: SENS 1H (z8) /SENS 1L (z10) and SENS 2H (d8) /SENS 2L (d10). The matching sensor is PR642X produced by German epro company Series eddy current sensors and matching preamps. Sensors of the same type from other manufacturers can also be used. Input voltage Range – is 1..-22V dc. The module provides two 26.75V DC power sources for the sensor: SENS 1+ (z6) /SENS 1- (b6) and SENS2+ (d6) /SENS2- (b8). The sensor signal can be measured at the SMB interface on the front panel of the module. In addition, the module is also equipped with key phase signal input (must be greater than 13V), the signal is the speed control mode and spectrum analysis required. Signal output a. Eigenvalue output The module has two current outputs representing characteristic values: 1+ (z18) 1/1- (b18) and 12+ (z20) 112- (b20), Can be set to … 20mA or … 20mA. In Smax and Sppmax modes, the outputs of the two channels are phase the same. The module has two 0…10V voltage outputs EO1 (d14) /EO2 (d16) representing characteristic values. b. Dynamic signal output The module provides two 0.. .20 Vpp dynamic signal outputs AC1 (z14) 1AC2 (z16) for spectrum analysis. 0…20 Vpp corresponds to the range of characteristic values. c. The module provides two…10V0 dc voltage outputs NGL1 (z12) INGL2 (d12). The output is proportional to the distance between the sensor and the surface being measured.

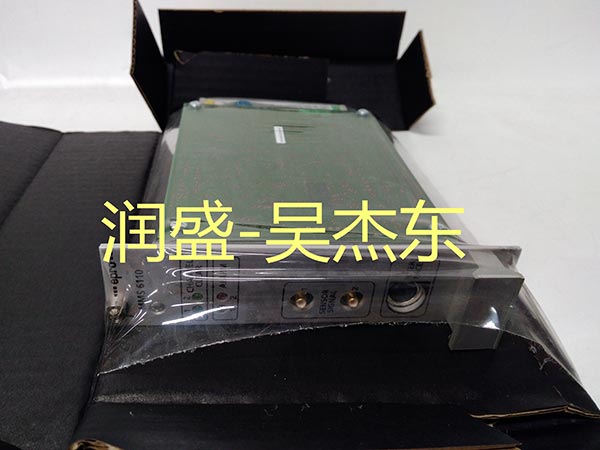

MMS6110
