Description

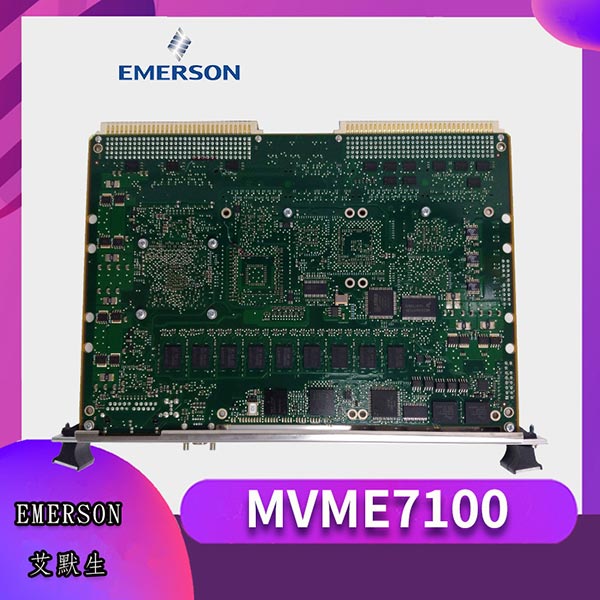

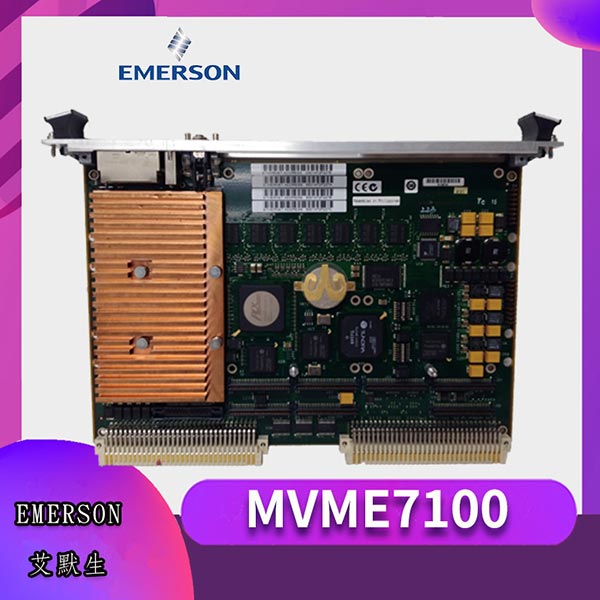

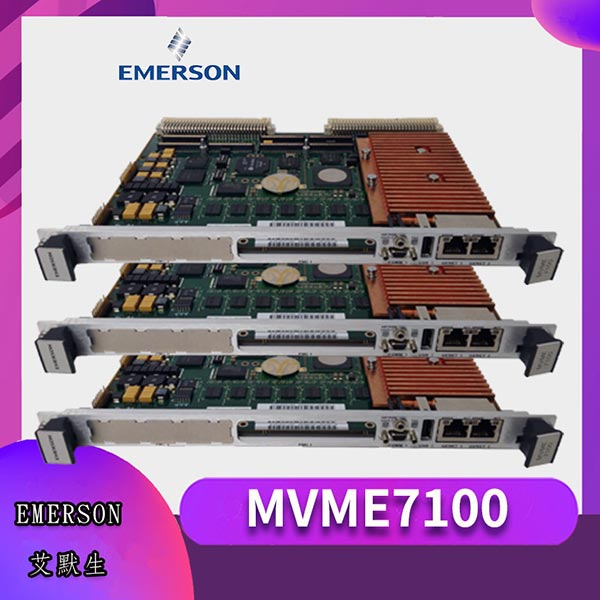

Item/Part Number: MVME7100 Product Features Up to 1.3 GHz system-on-chip NXP® MPC864xD with dual PowerPC® e600 processor cores, dual integrated memory controllers, DMA engine, PCI Express interface, Ethernet, and local I/O Board support packages for VxWorks, LynxOS, and Linux 2eSST VMEbus protocol with 320MB/s transfer rate across the VMEbus Up to 2GB of DDR2 ECC memory, 128MB NOR flash and 2, 4 or 8GB NAND flash Four Gigabit Ethernet ports USB 2.0 controller for integrating cost-effective peripherals (commercial temperature only) Dual 33/66/100MHz PMC-X sites for expansion via industry standard modules with support for processor PMCs 8x PCI Express expansion connector for PMC-X and XMC expansion using SMART EC XMCspan MVME7216E direct-connect rear transition module (RTM) for I/O routing through rear of a VMEbus chassis Extended temperature (-40°C to +71°C) and rugged board variants available Product Information Item/Part Number MVME7100 Item Description MVME7100 NXP® MPC864xD VME Single Board Computer Extended Description The MVME7100 features the MPC864xD processor and offers a growth path for VME customers using previous generations of VME, specifically MPC74xx. It offers excellent power/thermal, reliability and lifecycle advantages over other architectures. Architecture VME, VME64x Cooling Air-Cooled Height 6U Model Number MVME7100 RoHs Yes Vertical Market Defense/Aerospace Technical Information Board Height 6U Board Type SBC CPU Type NXP
MVME7100
