Description
The PROFIBUS DPV1 Master module is a powerful communication interface for Quantum ® processors. Developed under license from, the module incorporates proprietary backplane technology that enables powerful data exchange with processors. The module supports complete Master specifications according to IEC 61158. Acyclic parameter data can be transferred with Class 1 or Class 2 DPV1 services, allowing processors to easily communicate with slave devices supporting PROFIBUS DPV0/V1 protocol. The module acts as an input/output module between the PROFIBUS network and the processor. Data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network.
Features Benefits Easy to configure and manage ♦ Includes ProSoft Configuration Builder software to design, configure and monitor your PROFIBUS network ♦ Includes PROFIBUS DPV1 Master FDT (Field Device Tool) communication DTM (PROFIBUS comDTM) software to interface between any compliant FDT software container, an FDT device DTM, and applicable PROFIBUS slave devices ♦ Configure PTQ module and PROFIBUS network over Ethernet Industry Recognition ♦ Schneider Electric CAPP (Collaborative Automation Partner Program) Approved ♦ PROFIBUS Trade Organization (PTO) Approved Rugged and reliable ♦ The module is built on Siemens ASIC ASPC2 Step E with Infineon C165 Microprocessor ♦ The firmware is flash-upgradable ♦ Adheres to the Unity HEC Hot Standby Functional Specifications. ♦ Supports up to six PTQ-PDPMV1 modules per rack (up to four for Hot Standby implementations) ♦ Supports extended diagnostic data, alarm indications and confirmations handling, Multicast and Broadcast telegrams (DPV1) Configuration ProSoft Configuration Builder (PCB) provides a PC-based software configuration solution for management of module configuration files, as well as viewing communication and network diagnostics. PCB is not only a powerful solution for new configuration files, but also allows you to import information from previously installed (known working) configurations into new projects.

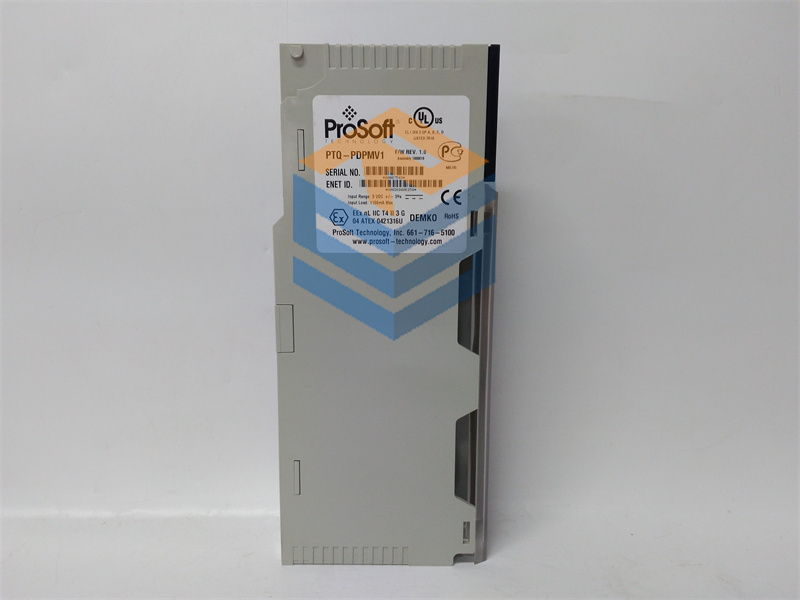

PTQ-PDPMV1
