Description

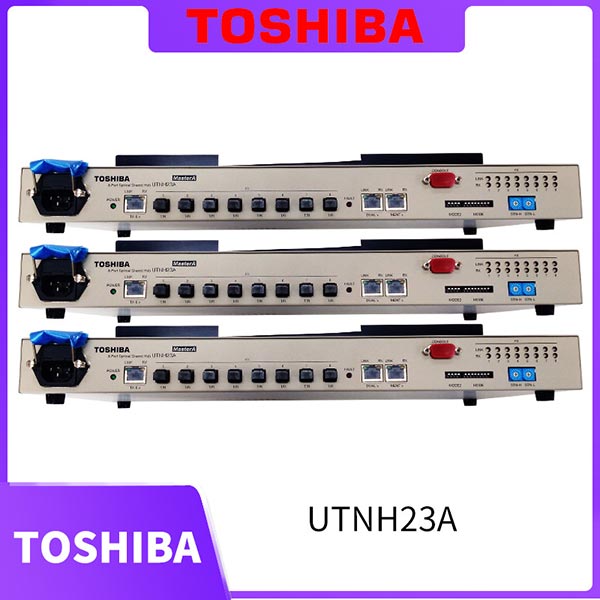

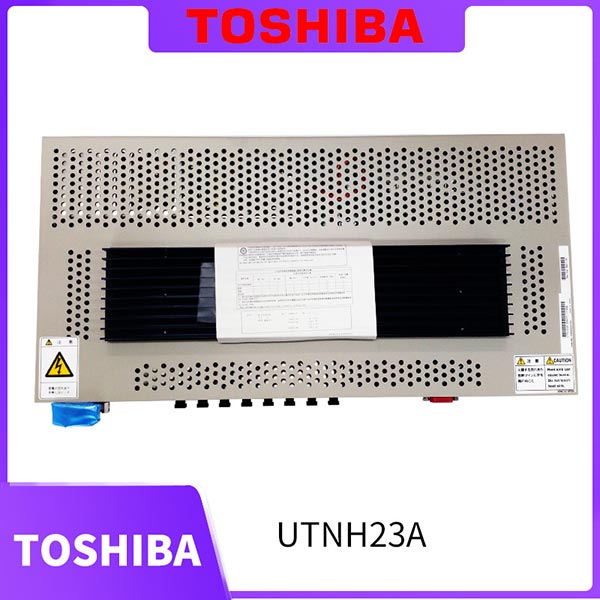

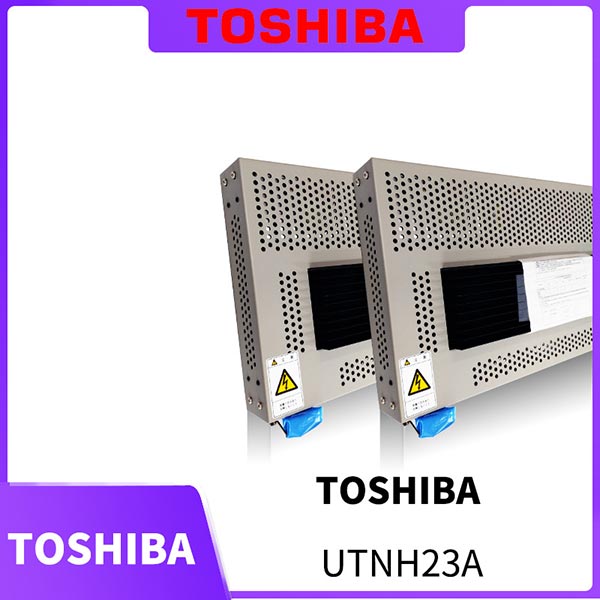

The optical shared hub unit UTNH series (called the optical shared hub unit in this manual) for the information and control network TC-net 100 constitutes TC-net 100 optical transmission lines. It employs an MT-RJ optical connector with 8 ports. The hub unit also has one port for the RJ-45 modular connector, which may be connected to a TC-net 100 (twisted pair) device. In using a single unit, use the optical shared hub unit for line A transmission line UTNH23A (SNMP installed for TC-net 100) or optical shared hub unit for line B transmission line UTNH23B. External views and a system configuration example are shown below. • UTNH23A: Master optical shared hub unit for line A transmission line (SNMP installed) • UTNH23B: Master optical shared hub unit for line B transmission line
UTNH23A
