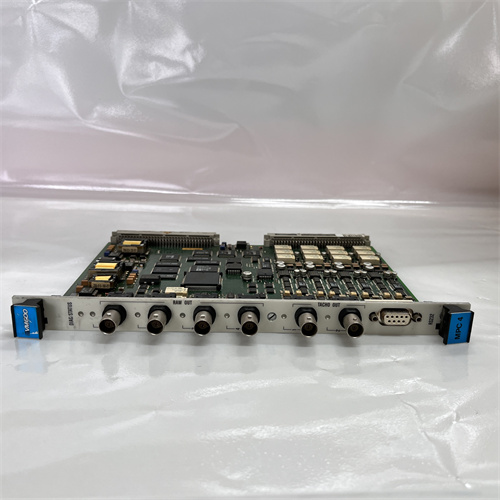

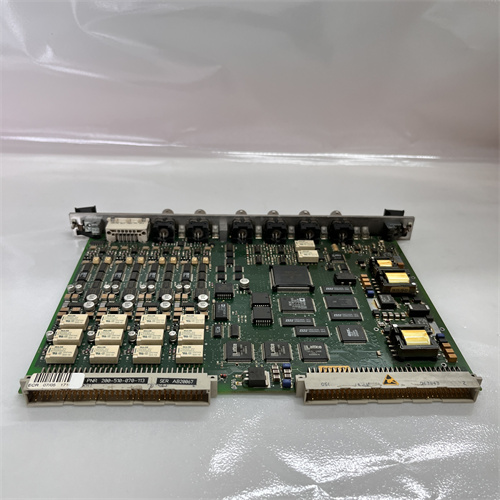

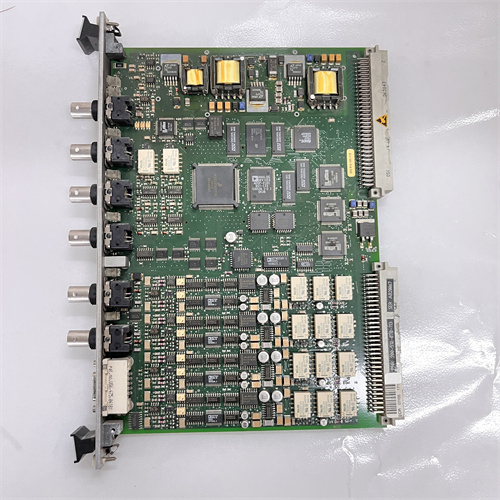

VIBRO-METER VM600 MPC4 200-510-070-113

Description

Product Description

VIBRO-METER VM600 MPC4 200-510-070-113 is a high-performance machinery protection and monitoring module developed by VIBRO-METER, a global leader in rotating machinery condition monitoring, designed specifically for critical equipment like turbines, compressors, and generators. This

-070-113 integrates advanced vibration analysis technology and robust industrial-grade hardware, making it a core component for ensuring equipment reliability and preventing catastrophic failures. Detailed product information is available via the link: [VIBRO-METER VM600 MPC4 200-510-070-113](product link).

-070-113 delivers real-time monitoring of vibration, shaft position, and temperature parameters with ultra-high precision. With its modular design,

-070-113 seamlessly integrates into the VM600 system ecosystem and interfaces with mainstream PLCs/DCS (e.g., Siemens, ABB), simplifying system expansion. Backed by VIBRO-METER’s decades of expertise in machinery health monitoring,

VIBRO-METER VM600 MPC4 200-510-070-113 operates stably in harsh industrial environments, providing early fault warnings and extending equipment lifespan.

Technical Parameters

• Device Type: Multi-channel machinery protection and monitoring module (VM600 system-compatible)
• Number of Monitoring Channels: 4 independent channels (vibration/shaft position/temperature)
• Vibration Measurement Range: 0–500 μm (peak-peak), 0–100 mm/s (RMS)
• Shaft Position Measurement Range: ±2.5 mm (relative displacement)
• Temperature Measurement Range: -40°C to +150°C (PT100/Pt1000 sensor compatible)
• Measurement Accuracy: ±0.1% of full scale (vibration), ±0.02 mm (position), ±0.5°C (temperature)
• Frequency Range: 0.1 Hz – 10 kHz (vibration analysis)
• Output Signals: 4–20 mA analog outputs (4 channels), relay alarm outputs (8 channels, configurable)
• Communication Protocols: Modbus RTU, Ethernet/IP, PROFINET, OPC UA
• Power Supply: 24 V DC (18–32 V DC wide-range compatibility)
• Operating Temperature Range: -20°C to +70°C
• Protection Class: IP20 (rack mounting in control cabinet)
• Dimensions (W×H×D): 55 mm × 170 mm × 220 mm (standard DIN rail size)
• Weight: 0.9 kg

Advantages and Features

• -070-113 offers multi-parameter monitoring (vibration/position/temperature) in a single module, eliminating the need for multiple standalone devices.
• High-precision measurement and advanced signal processing algorithms enable early detection of bearing wear, misalignment, and imbalance.
• Seamless integration with the VIBRO-METER VM600 system, supporting centralized data management and remote monitoring.
• Configurable alarm thresholds and trip logic adapt to diverse equipment protection requirements, enhancing application flexibility.
• Built-in self-diagnostic functions monitor module health and sensor connectivity, simplifying maintenance and troubleshooting.
• Robust EMC protection (compliant with IEC 61000) ensures stable performance in electromagnetic-intensive industrial environments.

Application Fields and Cases

• Power Generation: In thermal power plants, VIBRO-METER VM600 MPC4 200-510-070-113 monitors steam turbine and generator vibration and shaft position, preventing unplanned outages and ensuring grid stability.
• Oil & Gas: Used in offshore and onshore compressor stations to monitor rotating equipment health, reducing maintenance costs and downtime in remote locations.
• Petrochemical: Protects centrifugal pumps and process compressors in refineries, providing early warnings of mechanical faults to avoid production disruptions.
• Aerospace & Defense: Monitors test rig equipment (turbines, motors) in aerospace manufacturing, ensuring compliance with strict quality and safety standards.
• Marine: Used in ship propulsion systems to monitor main engine and gearbox vibration, enhancing maritime operation safety and reliability.

Comparison with Competitors

• In terms of measurement precision, -070-113 offers ±0.1% full-scale accuracy for vibration, outperforming most competitors (±0.2%–0.3% accuracy) in critical applications.
• Its multi-parameter integration (4 channels for 3 key parameters) is more versatile than single-function competitors, reducing rack space and system complexity.
• Compatibility with multiple industrial protocols (4 protocols supported) provides greater flexibility than competitors with limited communication options.
• VIBRO-METER’s specialized expertise in rotating machinery monitoring ensures deeper fault analysis capabilities than general-purpose automation brands.
• The module’s long-term reliability (MTBF ≥ 250,000 hours) surpasses competing products (150,000–200,000 hours), minimizing replacement and maintenance costs.

Selection Suggestions and Precautions

• When selecting, confirm that the measurement ranges and channel count of VIBRO-METER VM600 MPC4 200-510-070-113 match your equipment type (turbine, compressor, etc.) and monitoring requirements.
• Verify compatibility with existing sensors (e.g., eddy current probes, accelerometers) and control systems to avoid integration issues.
• Installation must be performed by qualified technicians, following the product manual to ensure proper sensor calibration and wiring.
• Mount the module in a well-ventilated control cabinet, away from high-temperature sources, moisture, and dust.
• Conduct regular calibration (recommended every 12–18 months) using certified equipment to maintain measurement accuracy.
• Store unused modules in a dry environment with temperatures between -25°C and +65°C, protecting them from physical damage and electromagnetic interference.
