effect
Soft start and soft stop: Torque control soft start and soft stop for three-phase squirrel cage induction motors, reducing mechanical stress and the burden on the electrical distribution system
Improve device availability: Use high-performance algorithms to improve device availability and security
Wide range of applications: suitable for centrifuge, pump, fan, compressor and conveyor applications, most of these machines are used in construction, food and beverage and chemical industry
dimension
Width and depth: 400 x 670 x 300 mm
weight
Product weight: 51.4kg
series

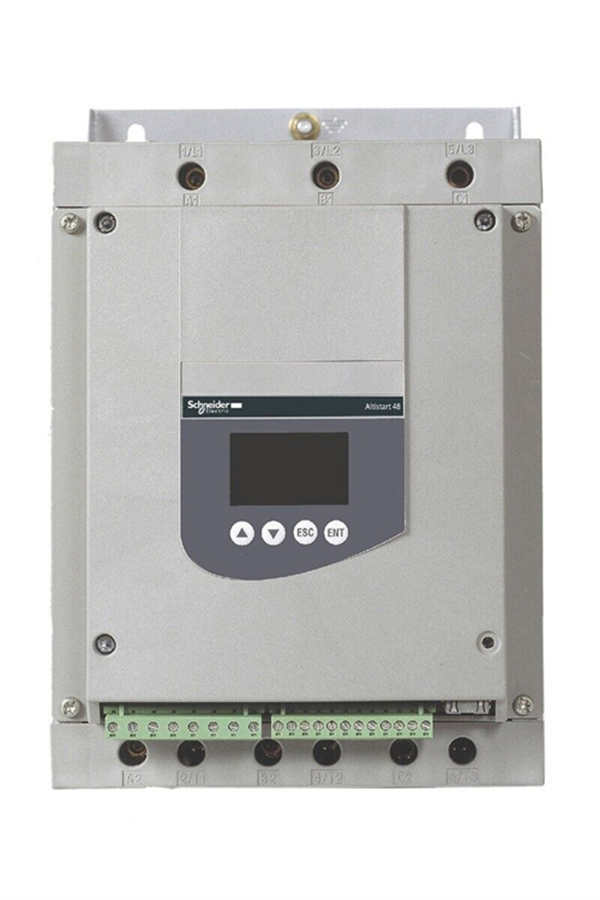

Product Series: Altistart 48
trait
Torque control: Torque Control system (TCS) via ATS48
Motor protection: Built-in motor thermal protection, PTC direct thermal protection, etc
Mechanical protection: underload and overload protection, threshold value and time adjustable
Communication function: Supports Modbus connection and RS485 serial port
Tuning and optimization: Built-in operating panel for easy modification of programming, tuning or monitoring functions
argument
Power: 4 to 1200kW, specifically 160/410A
Voltage: 230-415V or 208-690V, 50/60Hz
Control power supply voltage: 220V
Factory setting current: 388A
Power consumption: 1017W for harsh applications, 1339W for standard applications
Control circuit energy consumption: 80W
