Specifications & Functions:

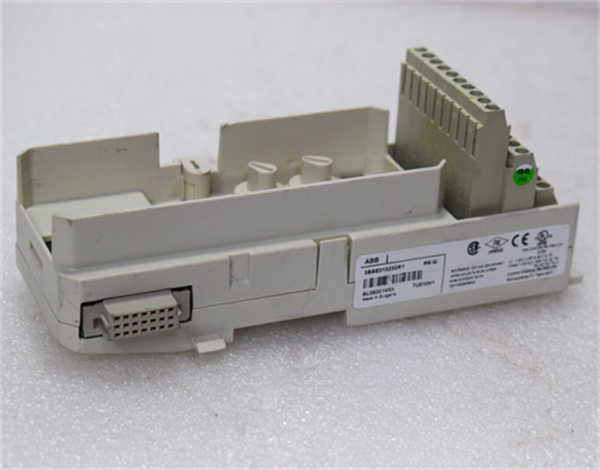

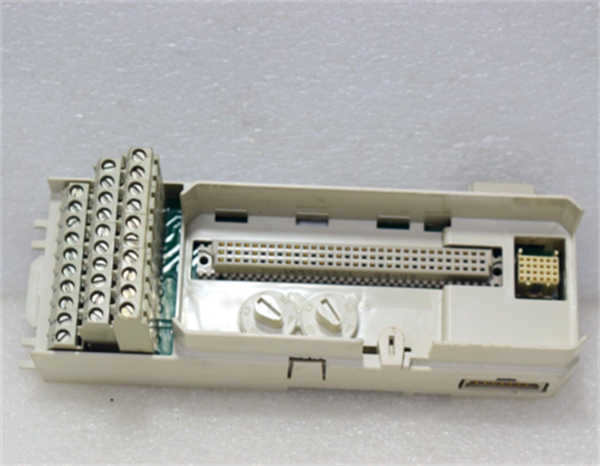

Model: TU810V1 3BSE013230R1
Type: Compact Module Terminal Unit with 2×8 Signal Terminals
Function: Serves as a terminal block for connecting signals in automation systems, particularly in DCS (Distributed Control Systems)
Weight & Dimensions:
Weight: Approximately 0.2 kilograms.
Dimensions:
Net Thickness/Length: 64mm
Net Height: 170mm
Net Width: 58.5mm
(Alternatively stated as: Length 23cm, though this may refer to a different measurement or packaging)
Features:
Compact Design: Offers a space-saving footprint suitable for dense installations.
High Connectivity: Supports up to 16 I/O channels for versatile signal connections
Locking Mechanism: Features 36 different combinations for mechanical locking and I/O module locking to ensure secure connections
Safety Compliance: Meets electrical safety standards such as Class I (IEC61140) and has a protection rating of IP20 (EN60529)
Application Areas:
Industrial Automation: Widely used in industrial automation systems for signal termination and connection within DCS frameworks.
Process Control: Suitable for process control applications where reliable signal transmission and termination are crucial.
Automation Systems Integration: Can be integrated into larger automation systems for monitoring and controlling various industrial processes.
