1. Product Description

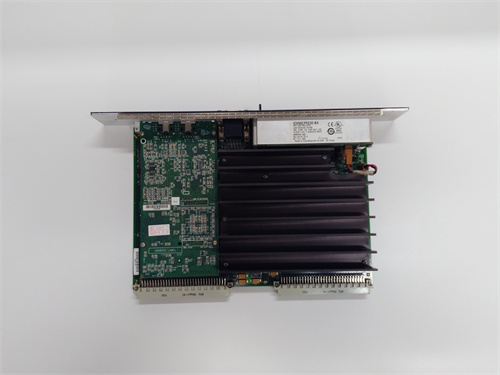

GE IC698CPE030-GJ is a product from GE Fanuc, a well-established brand in the field of industrial automation and control systems.
GE IC698CPE030-GJ is a high-performance programmable logic controller (PLC) CPU module. Its core function is to execute control programs, process input signals from various sensors and devices, and generate appropriate output signals to control actuators. This module is capable of performing complex logic operations, data processing, and communication tasks. For example, in a large manufacturing factory, GE IC698CPE030-GJ can receive signals from sensors monitoring the position of robotic arms, the speed of conveyor belts, and the quality of products. Based on the pre-programmed logic, it analyzes these signals and sends control commands to motors, valves, and other components to ensure the smooth operation of the production line. Additionally, it can communicate with other devices in the network, such as human-machine interfaces (HMIs) and supervisory control and data acquisition (SCADA) systems, to exchange data and receive remote control instructions.
In the industrial field, GE IC698CPE030-GJ has a wide range of applications. It can be used in the energy industry for controlling power generation, transmission, and distribution systems. In the automotive manufacturing industry, it can coordinate the operation of automated assembly lines. The advantages of GE IC698CPE030-GJ include its high processing speed, large memory capacity, excellent communication capabilities, and high reliability, making it a suitable choice for various industrial automation scenarios.
2. Product Parameters
| Parameter | Description |
|---|---|
| Operating Voltage | 24V DC (±10%) |
| Maximum Current Consumption | 400mA |
| Processor Type | High-performance industrial processor |
| Processing Speed | Execution time for basic instructions: less than 0.2 microseconds |
| Memory Capacity | User program memory: 512 MB, Data memory: 256 MB |
| Input/Output (I/O) Capacity | Supports up to 8192 I/O points (expandable with appropriate I/O modules) |
| Communication Interfaces | Ethernet (10/100/1000Mbps), RS-485, RS-232 |
| Supported Communication Protocols | Ethernet/IP, Modbus TCP, Modbus RTU (configurable) |
| Operating Temperature Range | 0°C – 60°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Compatibility | Compatible with GE Fanuc’s range of I/O modules, HMIs, and other automation devices |
| Dimensions (L×W×H) | Approximately 180mm×100mm×80mm |
| Weight | Around 0.6kg |
3. Advantages and Features
- High Processing Speed: In an automotive assembly plant, GE IC698CPE030-GJ was used to control the automated assembly process. With its fast processing speed, it could execute complex control programs in a timely manner. The execution time for basic instructions being less than 0.2 microseconds reduced the cycle time of the assembly operations by 25%. As a result, the production efficiency increased significantly, and the plant was able to produce 20% more vehicles per day compared to the previous system.
- Large Memory Capacity: In a power plant’s control system, GE IC698CPE030-GJ was responsible for storing a large number of control algorithms, historical data, and process parameters. Its 512 MB of user program memory and 256 MB of data memory ensured smooth operation of multiple control loops and data storage. Over a period of 4 years of operation, there were no issues related to memory shortage, ensuring the stable operation of the power generation and distribution processes.
- Excellent Communication Capabilities: In a chemical manufacturing facility, GE IC698CPE030-GJ was integrated into the plant’s communication network. It supported multiple communication protocols such as Ethernet/IP and Modbus TCP. This enabled seamless communication with various devices including reactors, pumps, and SCADA systems. The reliable communication reduced the number of communication failures by 90% compared to the previous system, improving the overall efficiency of the chemical production process.
4. Application Areas and Application Cases
GE IC698CPE030-GJ is suitable for industries such as manufacturing, energy, automotive, and chemical.
In a large-scale energy production facility, GE IC698CPE030-GJ was applied to control the operation of a wind power generation system. It received real-time data from sensors monitoring parameters such as wind speed, turbine rotation speed, and power output. Based on this data, the CPU module adjusted the operation of the turbines, such as controlling the pitch angle of the blades. As a result, the power generation efficiency of the wind farm increased by 15%, and the reliability of the power generation process was significantly enhanced. The number of unplanned shutdowns due to control system failures decreased from 8 times a year to less than 2 times a year.
5. Comparison with Competitors
Compared with similar products in the market, GE IC698CPE030-GJ has several notable advantages. In terms of processing speed, it outperforms many other CPU modules with its relatively fast execution of basic instructions, enabling quicker response in control systems. Its large memory capacity provides more space for complex control programs and data storage, which is superior to some competitors. Additionally, its wide range of supported communication protocols and excellent communication capabilities make it more adaptable to different industrial network environments. In terms of reliability, GE IC698CPE030-GJ has a proven track record of stable operation in harsh industrial environments, which is better than some other products.
6. Selection Suggestions
- Compatibility: When selecting GE IC698CPE030-GJ, ensure that it is fully compatible with your existing industrial automation devices. Check the compatibility with I/O modules, HMIs, and other components in your system. Make sure the communication protocols supported by the CPU module match those of your network devices to ensure seamless integration.
- Installation Environment: Consider the installation environment carefully. If the environment is prone to high temperatures, humidity, or strong electromagnetic interference, ensure that appropriate measures are taken to protect GE IC698CPE030-GJ. You may need to install it in a well-ventilated and shielded enclosure. Also, ensure that the power supply meets the specified requirements.
- Functional Requirements: Clearly define your functional requirements. Determine the complexity of the control programs you need to execute, the number of I/O points required, and the types of communication you need. If you have complex control tasks or require a large amount of data storage, GE IC698CPE030-GJ‘s high processing speed and large memory capacity may be suitable. However, if your requirements are relatively simple, you may need to consider other options as well.
- Budget: Take your budget into account. While GE IC698CPE030-GJ offers excellent performance and features, compare the total cost, including the purchase price, installation costs, and future maintenance costs, with other similar products. Consider the long-term benefits and return on investment to make an informed decision.
7. Precautions
- Installation: Before installing GE IC698CPE030-GJ, make sure to turn off all power sources to avoid electrical shock and damage to the module. Follow the installation instructions carefully to connect the power cables, communication cables, and I/O cables. Ensure that all connections are secure and properly grounded.
- Operation: During operation, do not touch the electrical contacts of the module to prevent electrical accidents. If you notice any abnormal phenomena, such as strange noises, overheating, or error indications, stop the operation immediately and contact a professional technician for inspection and repair.
- Maintenance: Regularly maintain GE IC698CPE030-GJ. Check the power supply voltage to ensure it is within the specified range. Inspect the communication cables for any signs of damage or loose connections. Update the module’s firmware as recommended by the manufacturer to benefit from the latest features, security enhancements, and performance improvements. Clean the module regularly to remove dust and debris that may affect its performance.
