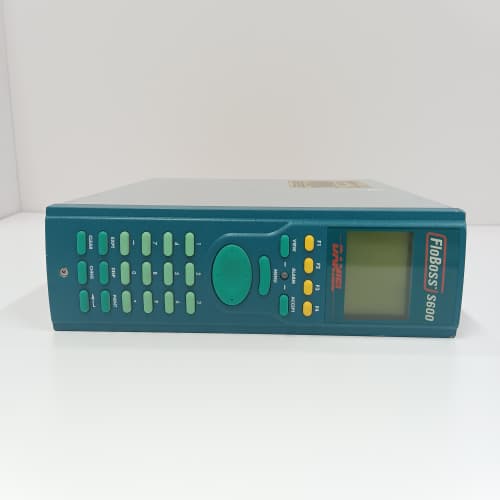

EMERSON FLOBOSS S600

Description

Product Description

The

EMERSON FLOBOSS S600 is a robust and highly specialized flow computing and batch controller, designed for critical measurement and control applications in the oil and gas industry. It is not a general-purpose PLC but a powerful application-specific controller that integrates advanced flow computation, data logging, and communication capabilities into a single, field-hardened unit. The primary role of the

is to serve as a FloBoss Flow Manager, providing precise custody transfer and fiscal metering, comprehensive well monitoring, and reliable gas distribution control. Built to withstand harsh environments, this unit excels in automating complex flow calculations, managing batch processes like LACT (Lease Automatic Custody Transfer) units, and ensuring regulatory compliance through accurate data acquisition and reporting. Implementing the

EMERSON FLOBOSS S600 in a field installation significantly enhances measurement integrity and operational visibility for upstream and midstream operators.

Product Parameters

• Manufacturer / Brand: Emerson (formerly Brooks Instrument / ROC)
• Model: FLOBOSS S600
• Type: Flow Manager / Flow Computer / Batch Controller
• Processor: High-performance dedicated processor for complex flow calculations.
• Memory: Substantial non-volatile memory for application programs, firmware, and historical data logging.
• Inputs/Outputs: Configurable with a range of analog inputs (for pressure, temperature, differential pressure), pulse inputs (for turbine or positive displacement meters), discrete I/O, and communication ports.
• Communications: Supports industry-standard protocols including Modbus (RTU/TCP), ROC Plus, FLASH, and often Foundation Fieldbus or Ethernet/IP for integration into SCADA and DCS systems.
• Standards & Certifications: Typically designed for hazardous area installations (Class I Div 2, ATEX Zone 2) and built to meet demanding industry standards for fiscal measurement.
• Software: Configured and programmed using Emerson’s proprietary FloBoss Configuration and Service Tool (FCST) software.

Advantages and Features

• Application-Specific Expertise: Pre-programmed with industry-standard flow equations (AGA, API, GPA) and dedicated function blocks for liquid and gas measurement, reducing configuration time and errors.
• All-in-One Solution: Combines flow computer, RTU, and data logger functionalities, simplifying system architecture and reducing hardware footprint.
• Ruggedized Design: Engineered for reliable operation in extreme temperatures, high vibration, and corrosive environments typical of wellheads and remote sites.
• High Accuracy Computation: Performs real-time temperature and pressure compensation, meter proving calculations, and totals accumulation with high precision for fiscal and custody transfer applications.
• Extensive Data Logging: Capable of storing detailed event logs, audit trails, and historical process data for compliance reporting and operational analysis.

Application Cases in Application Fields

• Upstream Oil & Gas – Wellhead Monitoring: At a natural gas well pad, the EMERSON FLOBOSS S600 receives signals from orifice meters, PTs, and TTs to calculate real-time flow rates using AGA-3/AGA-8, providing operators with accurate production data for each well and controlling alarms for abnormal conditions.
• Midstream – Custody Transfer Station: At a pipeline transfer point, the unit acts as the fiscal flow computer for a liquid hydrocarbon pipeline. It manages meter proving sequences, calculates net standard volumes using API standards, generates batch reports, and securely transmits validated data to the pipeline SCADA system.
• Gas Distribution – City Gate Station: Installed at a natural gas city gate, the monitors incoming pipeline gas, calculates energy content using composition analysis, controls pressure regulation, and allocates volumes for downstream distribution networks.

Comparisons with Competing Products

• Vs. General-Purpose PLCs: While a standard PLC (e.g., Allen-Bradley CompactLogix) can be programmed for flow calculation, it lacks the pre-configured, validated flow libraries and dedicated form factor of the FLOBOSS S600, which is purpose-built for this task, ensuring faster deployment and regulatory acceptance.
• Vs. Other Flow Computers (e.g., OMNI): The EMERSON FLOBOSS S600 is part of Emerson’s broader FloBoss and ROC family, offering deep integration with Emerson’s measurement instrumentation and control systems. Competitors may have different strengths in user interface or connectivity options.
• Vs. Basic RTUs: Standard Remote Terminal Units (RTUs) focus on data acquisition and control but lack the sophisticated, built-in computational engine for complex flow and batch calculations that the S600 provides.

Selection Suggestions and Precautions

1. Define Application Requirements: Clearly specify if the need is for gas or liquid measurement, custody transfer (fiscal) or operational monitoring, and the required industry calculation standards (AGA, API).
2. Verify I/O and Communication Needs: Ensure the selected EMERSON FLOBOSS S600 configuration has the correct number and type of input cards for your meters (pulse, analog) and the necessary communication protocols (Modbus TCP, Fieldbus) to interface with your host system.
3. Consider Software and Support: Factor in the need for Emerson’s FCST configuration software and the availability of personnel trained to program and maintain the FLOBOSS S600 platform.
4. Environmental Suitability: Confirm the unit’s enclosure rating and hazardous area certifications (e.g., Class I Div 2) match the installation environment.
5. Plan for Integration: Understand the data mapping and protocol configuration required to integrate the flow computer’s data into the overarching SCADA or DCS network effectively.
6. Source from Authorized Channels: To guarantee authenticity, firmware, and technical support, procure the unit or its spare parts from authorized Emerson distributors or service partners.
