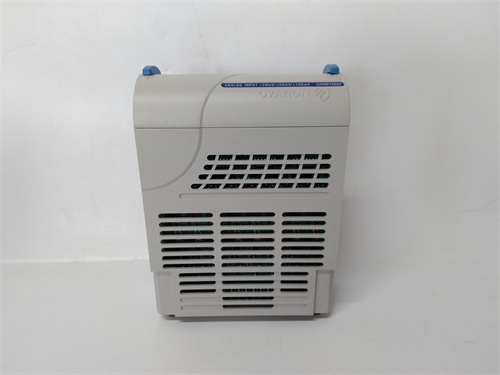

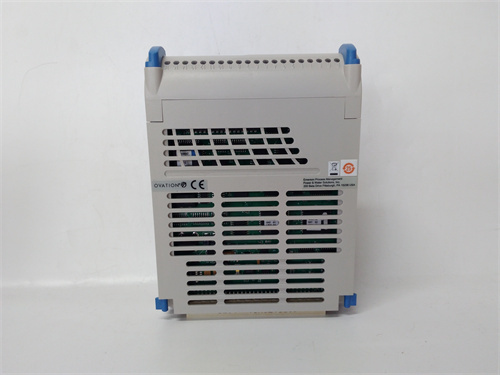

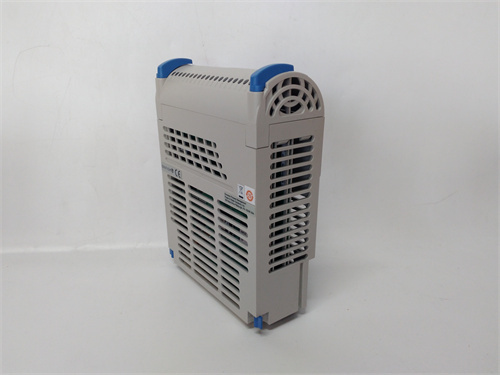

WESTINGHOUSE 5X00070G04 Ovation Analog Input Module

Product Description

The

WESTINGHOUSE 5X00070G04 is a high-performance Analog Input (AI) module designed for the Ovation distributed control system (DCS), originally developed by Westinghouse and now part of Emerson Automation. This module serves as a critical interface between field instrumentation and the control system, converting analog signals from sensors into digital values for processing. The

is specifically engineered for the demanding requirements of power generation and water treatment industries, where precision and reliability are paramount. As a field-terminating assembly (FTA) compatible module, it works in conjunction with a corresponding termination unit to condition and digitize signals from transmitters, transducers, and analyzers. For plants operating Ovation-based control systems, the

represents a trusted, field-proven solution for accurate data acquisition.

Product Parameters

Understanding the technical specifications of the is essential for proper system configuration and signal integrity:

Model Number:
Module Type: 8-Channel Analog Input Module
Input Signal Types: Configurable for 4-20 mA (standard), 0-20 mA, and 1-5 VDC signals
Resolution: 16-bit (including sign bit) for high-precision measurement
Channel-to-Channel Isolation: 250 VDC continuous isolation for protection against ground loops
Update Rate: Software-configurable, typically 60 ms per module for all channels
Accuracy: ±0.1% of span at 25°C (typical)
Field Power: 24 VDC loop power can be supplied internally or externally, jumper-selectable
Compatibility: Designed for Ovation DCS versions 1.5 through 3.x
Diagnostics: On-board LED status indicators for module health, communication, and field power status

Advantages and Features

The WESTINGHOUSE 5X00070G04 offers several engineering advantages that make it a preferred choice in critical infrastructure applications:

High Channel Density: With 8 channels per module, the maximizes I/O capacity within the Ovation rack, reducing overall system footprint and cost per point.
Per-Channel Configurability: Each input channel can be individually configured for signal type and range, providing flexibility for mixed instrument types on a single module.
Robust Isolation: The 250 VDC channel-to-channel isolation protects sensitive electronics from ground faults and transient surges, significantly enhancing system uptime.
Hot Swappable Design: The supports online replacement without powering down the controller or disturbing field wiring, which is critical for continuous process applications.
Advanced Diagnostics: Continuous self-monitoring and diagnostic capabilities allow the module to detect and report open-wire conditions, out-of-range signals, and internal faults to the controller for immediate operator notification.

Application Fields

The is predominantly deployed in industries where Ovation DCS is the standard control platform:

Power Generation: Extensively used in coal, natural gas, and nuclear power plants for monitoring pressure, temperature, flow, and level transmitters on boilers, turbines, and balance-of-plant systems.
Water and Wastewater Treatment: Employed in large municipal and industrial water treatment facilities to monitor chemical feed rates, filter pressures, and clarifier levels.
Industrial Steam Generation: Used in industrial facilities with on-site cogeneration plants to monitor steam production and distribution parameters.
Environmental Monitoring: Applied in continuous emissions monitoring systems (CEMS) to acquire analog data from gas analyzers and opacity monitors.
Retrofit Projects: The WESTINGHOUSE 5X00070G04 is commonly used in control system upgrades where existing Westinghouse WDPF systems are being migrated to modern Ovation platforms.

Comparison with Competing Products

When compared to analog input modules from other major DCS platforms like Siemens (S7-400 AI) or ABB (500 series AI), the demonstrates specific strengths:

Native Ovation Integration: Unlike generic Profibus or Modbus I/O, the communicates directly over the Ovation controller’s proprietary backplane, offering deterministic performance without protocol conversion delays.
Legacy Compatibility: This module maintains backward compatibility with older Westinghouse WDPF termination units, allowing plants to upgrade controllers while preserving existing field wiring and cabinets—a significant cost advantage.
Power Industry Specialization: Ovation systems, and by extension the , are specifically optimized for power generation applications, with features and certifications that general-purpose PLC modules may lack.
Simplicity of Configuration: Compared to some competitors that require extensive DIP switch or software configuration, the offers straightforward jumper-based signal selection combined with software scaling, reducing commissioning errors.

Selection Suggestions and Precautions

When integrating the WESTINGHOUSE 5X00070G04 into your control system, keep these expert recommendations in mind:

Termination Unit Matching: The requires a compatible Field Terminating Assembly (FTA), such as the 5X00070G01 or 5X00070G02. Verify that your FTA model matches your field wiring type (e.g., with or without loop power supplies).
Firmware Version Alignment: Ensure the firmware revision of your is compatible with your Ovation controller and workstation software version. Mixing incompatible revisions can result in communication errors or unavailable features.
Loop Power Considerations: Carefully configure the loop power selection jumper on the mating FTA. Applying external 24V to a channel configured for internal power can damage the module’s power supply circuitry.
Grounding and Shielding: For optimal signal accuracy, ensure proper shielded twisted-pair wiring and follow Ovation grounding guidelines precisely. The high isolation of the is most effective when paired with proper field grounding practices.
Spare Parts Strategy: Given its critical role in safety and control applications, maintain at least one spare WESTINGHOUSE 5X00070G04 in your inventory to minimize downtime in the event of a module failure. Always verify the complete part number against your existing module to ensure an exact replacement match.
