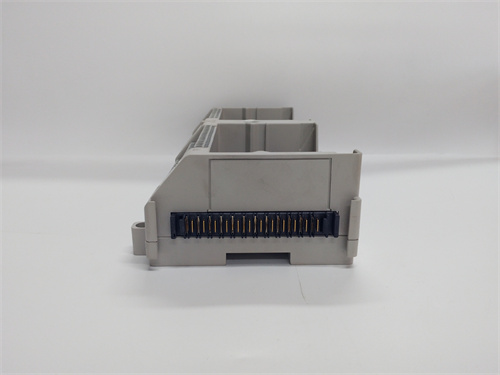

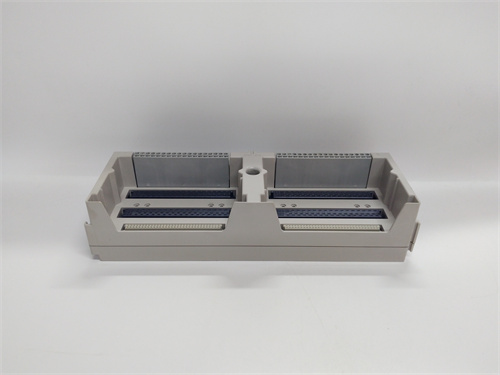

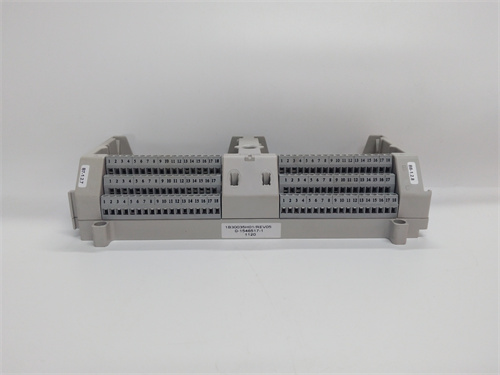

WEISTINGHOUSE 1B30023H01: I/O Module for WDPF / OVATION Control System
Product Description
The WEISTINGHOUSE 1B30023H01 is a critical Input/Output (I/O) module designed for the Westinghouse (now part of Emerson) distributed control systems, specifically the legacy WDPF (Westinghouse Distributed Processing Family) and the subsequent OVATION platform. This module serves as a key interface between the control system’s network and field devices, responsible for acquiring analog process signals or outputting control commands. The exemplifies the rugged, deterministic design philosophy of power generation control systems, ensuring reliable data conversion and transmission for critical process variables. As a foundational component within the control cabinet, its performance is essential for monitoring and regulating plant equipment.
Product Parameters
- Product Type: I/O Module (Analog Input or Analog Output)
- Manufacturer: Westinghouse / Emerson
- Part Number: 1B30023H01
- Compatible System: Westinghouse WDPF / OVATION DCS
- Module Function: Likely functions as an analog input (AI) module for signals such as 4-20mA, or analog output (AO) module. The specific function must be verified by the system’s I/O database.
- Number of Channels: Typically 8 or 16 channels per module.
- Signal Range: Standard industrial signals (e.g., 4-20mA, 1-5V, thermocouple/mV for AI; 4-20mA for AO).
- Isolation: Provides channel-to-channel and/or system isolation for noise immunity and safety.
- Communication: Interfaces with the system via a proprietary I/O bus (e.g., WestNet) within the I/O shelf.
Advantages and Features
The primary advantage of the WEISTINGHOUSE 1B30023H01 is its proven reliability and deterministic performance in mission-critical environments, particularly in power generation. It is designed for high availability, with features that support hot-swapping in redundant configurations to allow maintenance without a process shutdown. The module offers robust signal conditioning with filtering to ensure accurate measurement and control in electrically noisy settings. Its integration within the WDPF/OVATION architecture allows for centralized configuration, calibration, and diagnostics from the operator workstation, simplifying maintenance tasks. The durable construction of the is built to withstand the long service life expected in power plants.
Application Cases in Various Fields
This module is predominantly used in
Power Generation. In fossil fuel (coal, natural gas) and
Nuclear Power Plants, the
WEISTINGHOUSE 1B30023H01 is deployed in critical loops such as boiler feedwater control (reading level and flow), turbine steam temperature monitoring, and generator exciter control. It is also used in balance-of-plant systems for monitoring condenser vacuum, feed pump status, and cooling water temperatures. Beyond power, it can be found in other heavy industries that adopted the WDPF platform, such as
Chemical or
Metals processing, for foundational analog signal interfacing.
Comparisons with Competing Products
Compared to modern, commercial off-the-shelf I/O modules from companies like Advantech or Beckhoff, the is a proprietary, system-locked component designed for a specific, high-reliability ecosystem. Its direct contemporaries were I/O modules from competing DCS vendors of the era like Bailey (INFI 90), Honeywell (TDC 3000), or Leeds & Northrup. The main competitive advantage of the WEISTINGHOUSE 1B30023H01 today is not technological novelty but its guaranteed compatibility and reliability within an existing, often safety-critical, installed base. It is chosen not for new projects, but to maintain the integrity and certification of legacy systems with decades of remaining service life.
Selection Suggestions and Precautions
- Precise Function Identification: The part number identifies the physical module. You must cross-reference it with your plant’s specific I/O database or drawings to confirm its exact configured function (e.g., AI, AO, specific range) and its address within the I/O shelf.
- System Generation Compatibility: Verify compatibility with your specific system generation (WDPF II, OVATION 1.0, etc.). Modules, while similar, may have firmware or hardware revisions that are not cross-compatible.
- Handling and ESD: Treat the module as an electrostatic discharge (ESD)-sensitive device. Use proper grounding straps and handling procedures during replacement.
- Configuration Backup: Before removing any module, ensure you have a complete and verified backup of the system’s configuration. The replacement WEISTINGHOUSE 1B30023H01 may need specific calibration data or channel parameters downloaded from the engineering workstation.
- Safe Replacement Protocol: Follow strict plant procedures for working on control system equipment. For hot-swap in a redundant slot, use the official procedure. For a non-redundant slot, a coordinated process shutdown or bypass may be required. Never remove or insert a module while the I/O shelf is powered.
