Description
Product Overview
The core focus of this analysis is

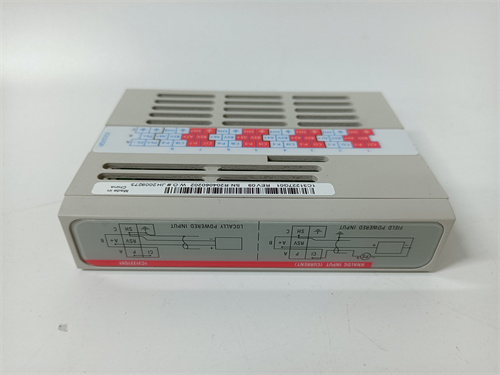

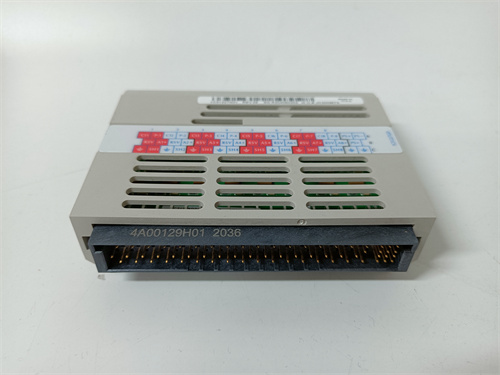

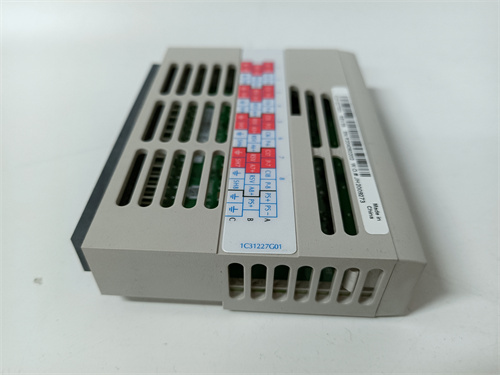

WESTINGHOUSE 1C31227G01, a digital input module designed for industrial control systems under the
WESTINGHOUSE brand (the product link will be added after you provide it). The
belongs to Westinghouse’s Ovation DCS (Distributed Control System) product line—a series trusted for reliability in critical industrial processes—and functions as a dedicated unit for receiving and processing discrete digital signals. This
module is engineered to integrate seamlessly with Ovation controllers, making it a key component for monitoring on/off statuses of equipment like valves, pumps, and sensors.
Product Parameters
Typical technical specifications of (to be refined with data from the provided link):
- Module Type: Digital input module for WESTINGHOUSE Ovation DCS
- Number of Input Channels: 16 discrete digital input channels
- Input Signal Type: Dry contact or voltage input (24 VDC, sinking/sourcing configurable)
- Input Voltage Range: 18–32 VDC (for voltage inputs)
- Isolation: Channel-to-channel and channel-to-ground optical isolation (2500 VAC rms, 1 minute)
- Response Time: <10 ms for signal detection
- Power Requirements: 5 VDC from Ovation system backplane; typical current draw: 0.3 A
- Operating Temperature Range: 0 °C to 60 °C (32 °F to 140 °F)
- Mounting: Rack-mounted in Ovation DCS backplanes (3U height, standard 19-inch rack)
Advantages and Features
WESTINGHOUSE 1C31227G01 delivers distinct benefits for industrial automation:
- High Signal Integrity: Optical isolation in prevents cross-channel interference and protects the module from voltage spikes, ensuring accurate signal processing.
- Flexible Input Configuration: It supports both dry contact and voltage inputs, allowing to adapt to diverse field equipment (e.g., limit switches, proximity sensors).
- Ovation Ecosystem Compatibility: The integrates natively with Ovation controllers and software, eliminating the need for third-party adapters and simplifying system setup.
- Easy Diagnostics: LED status indicators for each channel on enable quick visual verification of input activity, reducing troubleshooting time.
Application Cases by Industry
WESTINGHOUSE 1C31227G01 is widely used in industries relying on Ovation DCS:
- Power Generation: Deployed in coal, gas, and nuclear power plants to monitor the status of turbine valves, generator breakers, and cooling system pumps.
- Water & Wastewater: Used in treatment plants to track the on/off state of mixers, filter backwash valves, and flow control gates.
- Chemical Processing: Integrated into batch and continuous processes to monitor emergency shutdown (ESD) switches, agitator motors, and tank level sensors.
- Pulp & Paper: Applied in mills to track the status of roller drives, dryer fans, and chemical dosing pumps for consistent production.
Comparison with Competing Products
outperforms similar digital input modules (e.g., Emerson DeltaV KJ3221X1-BA1, Siemens S7-400 SM 421):
- Isolation Rating: offers 2500 VAC isolation, higher than Emerson DeltaV’s 1500 VAC, providing better protection in high-voltage environments.
- Channel Density: With 16 channels in a 3U form factor, it matches Siemens S7-400 SM 421’s density but offers more flexible input types (dry contact + voltage vs. Siemens’ voltage-only).
- Ovation Optimization: Unlike competitors, is purpose-built for Ovation DCS, ensuring faster communication with controllers and fewer integration issues.
Selection Suggestions and Precautions
- Selection Tips: Choose WESTINGHOUSE 1C31227G01 if your system uses WESTINGHOUSE Ovation DCS and requires 10–16 digital inputs (for fewer channels, consider Westinghouse 1C31226G01; for more, use multiple units).
- Compatibility Check: Verify the module is paired with a compatible Ovation backplane (e.g., 1C31129G01) to ensure proper power and communication with .
- Installation Notes: Mount in a dust-free, well-ventilated cabinet to maintain the operating temperature range; avoid installing near high-heat components like power supplies.
- Maintenance: Clean the module’s backplane connectors annually to prevent signal loss; update Ovation software (via the provided link) to ensure optimal performance of WESTINGHOUSE 1C31227G01.
1C31227G01
